Fieldware for the Legacy 6000

Software Version 2.11

Chapter 3 - Real-time Setup

3-5

Starting a Job

Manually Naming a Job

From the New Job Name page (Figure 3-3). Using the arrow keys enter the name of your job. It is
not necessary to use all numbers in the job name. It can contain alpha-numbers characters. When
the desired job name is entered, press the Forward Arrow to save the name and return to the Job
page.

Automatically Naming a Job

The second method to create a job is to press the Auto-name button in the Create Job page. This
will name the job based on the current date followed by the number that job is for the day. There-
fore the first job on January 31st 2005 would automatically be named 01312005-1. The second job
for the same day would be named 01312005-2.

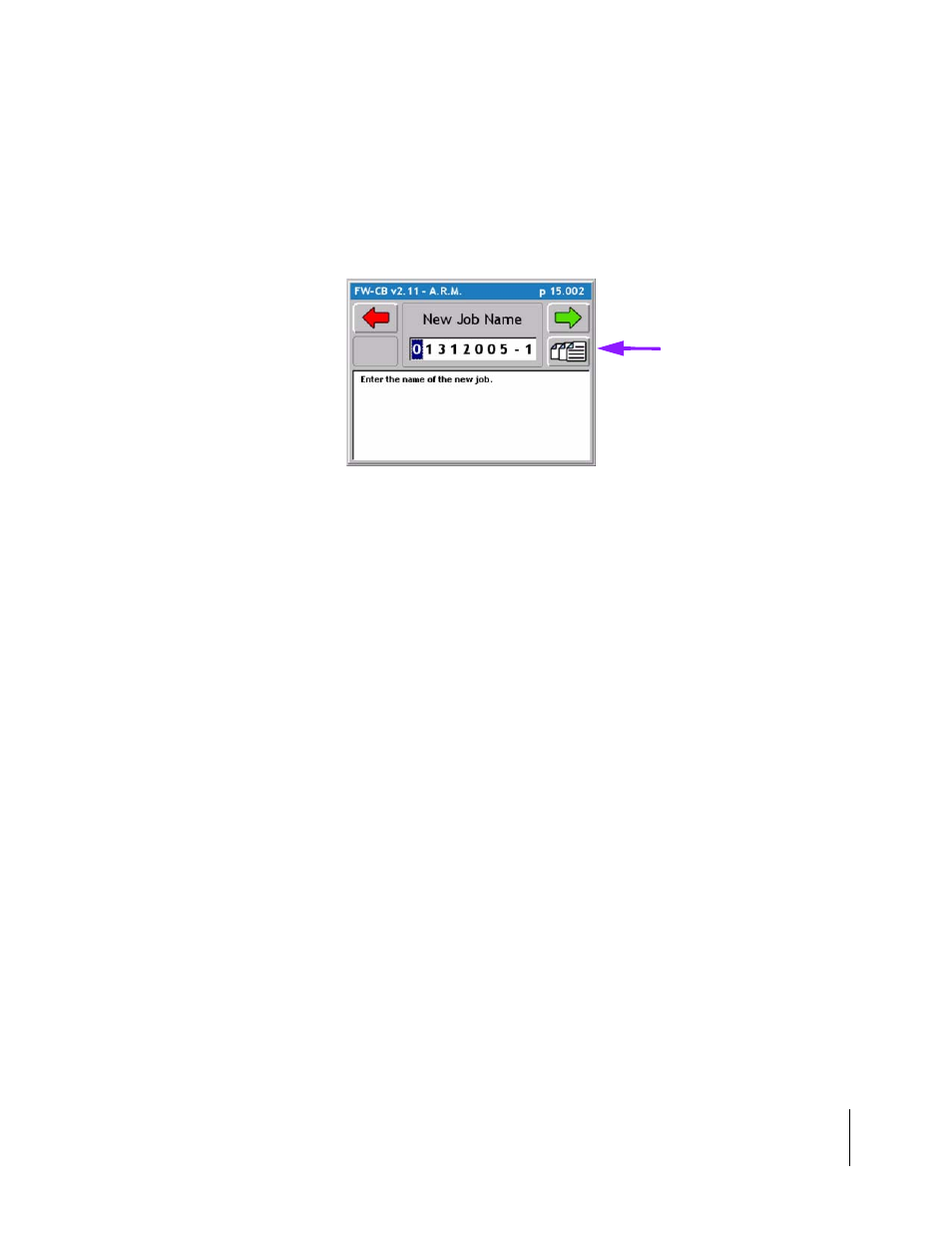

Figure 3-3: The Job Name Page

Auto-name button
