6-14 Chapter 6 - Running Mapper
Mapper Tools
Fieldware for the Legacy 6000
Software Version 2.11
Mapper Tools
The primary task performed in the Map page is object mapping. In Mapper, objects include points,
polylines, or polygons. As explained before, you can pre-define some point and hazard objects in
the Road maker setup. Each pre-defined object has a corresponding soft-key in the Map page.
Mapping objects are also accessed via the Map Objects soft-key. Pressing this soft-key activates a
menu containing all graphical object types. Each mapper tool selected will prompt the operator for
an object name. The object name is the label for the item being mapped (See “Creating Object
Name” on page 6-9.) Each object type is described in Table 6-4.
To select an object, use the up and down arrow keys on the legacy 6000 to highlight the desired
object. Press the Enter key.

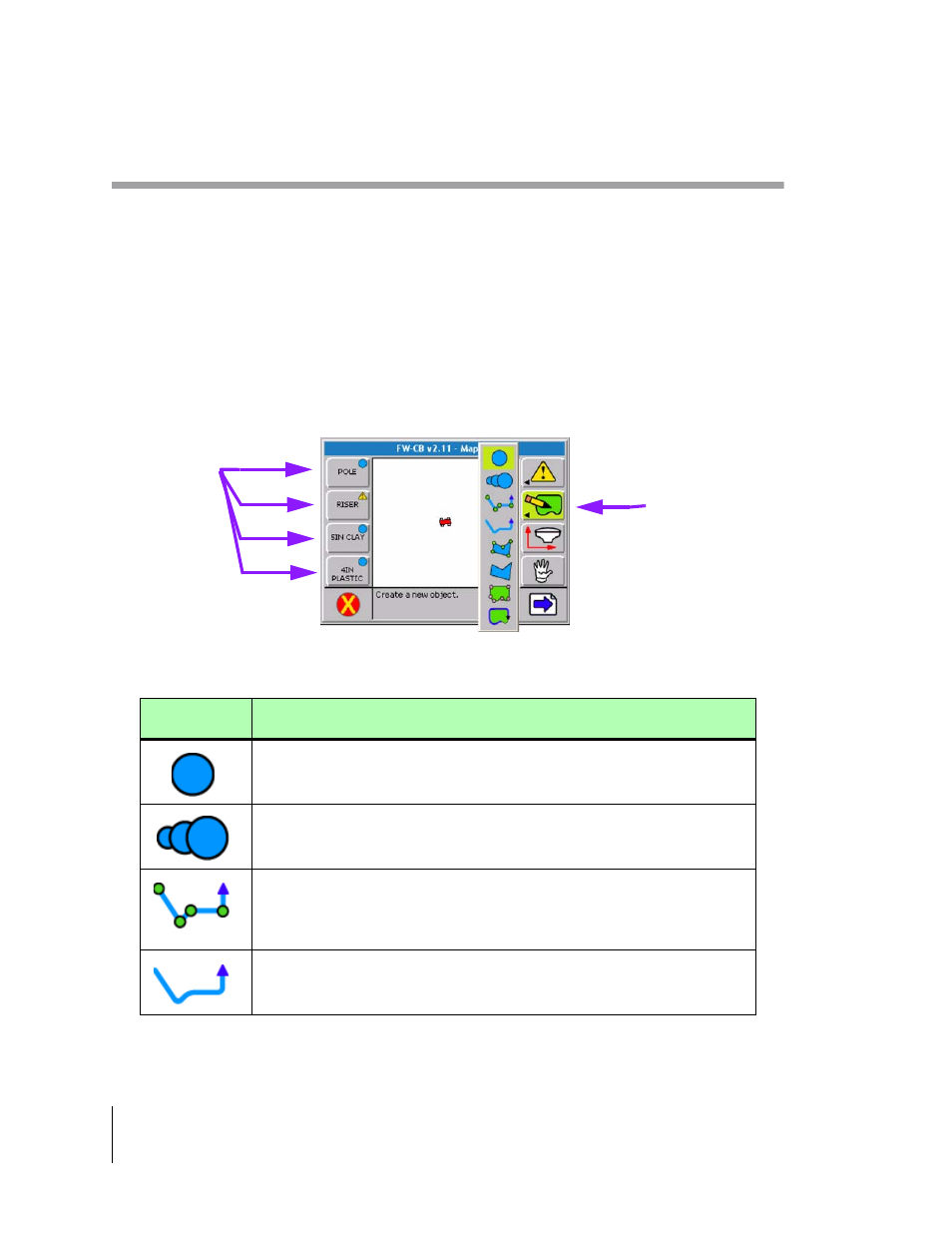

Figure 6-12: The Mapper Map Page
Object Description
Point-Mark. Maps a single point to the Map file. The Map Object soft-key
changes to a Point soft-key. Press to mark a point. A prompt asks for a point
name each time a point is marked.
Point-Stream. Maps a stream of points at the data collection interval rate. The
Map Object soft-key changes to the Points Stream soft-key. Press to turn
stream on and off. A prompt asks for an object name.
Polyline-Mark. Use to map or locate features that can be represented by a line
of discrete points. The Map Object soft-key changes to the Polyline-Mark soft-
key. Press to mark a point along the polyline. A prompt asks for an object
name.
Polyline-Stream. Use to map or locate features that can be represented by a
line streaming points. The Map Object soft-key changes to the Polyline-Stream
soft-key. Press to turn streaming on and off. A prompt asks for an object name.
Table 6-4: Mapping Object Description
Road Markers
Map Object
