Performing a Calibration
Fieldware for the Legacy 6000
Software Version 2.11
Performing a Calibration
Introduction
This section describes the sensor calibration procedures that are required prior to performing
accurate product application. Each sensor calibration is discussed in detail below, and each fol-
lows a wizard step by step process. The “Fieldware for the Legacy 6000” is capable of performing
the following calibrations:
Distance/Speed, Liquid Pressure, Granular, Liquid Based Flow meter, NH3 Flow meter, Seeder.
All calibrations (except status monitors) result from a comparison of an actual value and a reported
value. Calibration units are based on the units selected in PCM Setup. Prior to calibration, the
PCM must be setup using PCM setup.
The Common Calibration Procedure
The calibration procedure for the application types Granular, Liquid Flow Based, NH3, and Seeder,
share the same basic calibration steps, see (Figure 3-7). Each procedure has the option of per-
forming a Static or In-Field calibration.

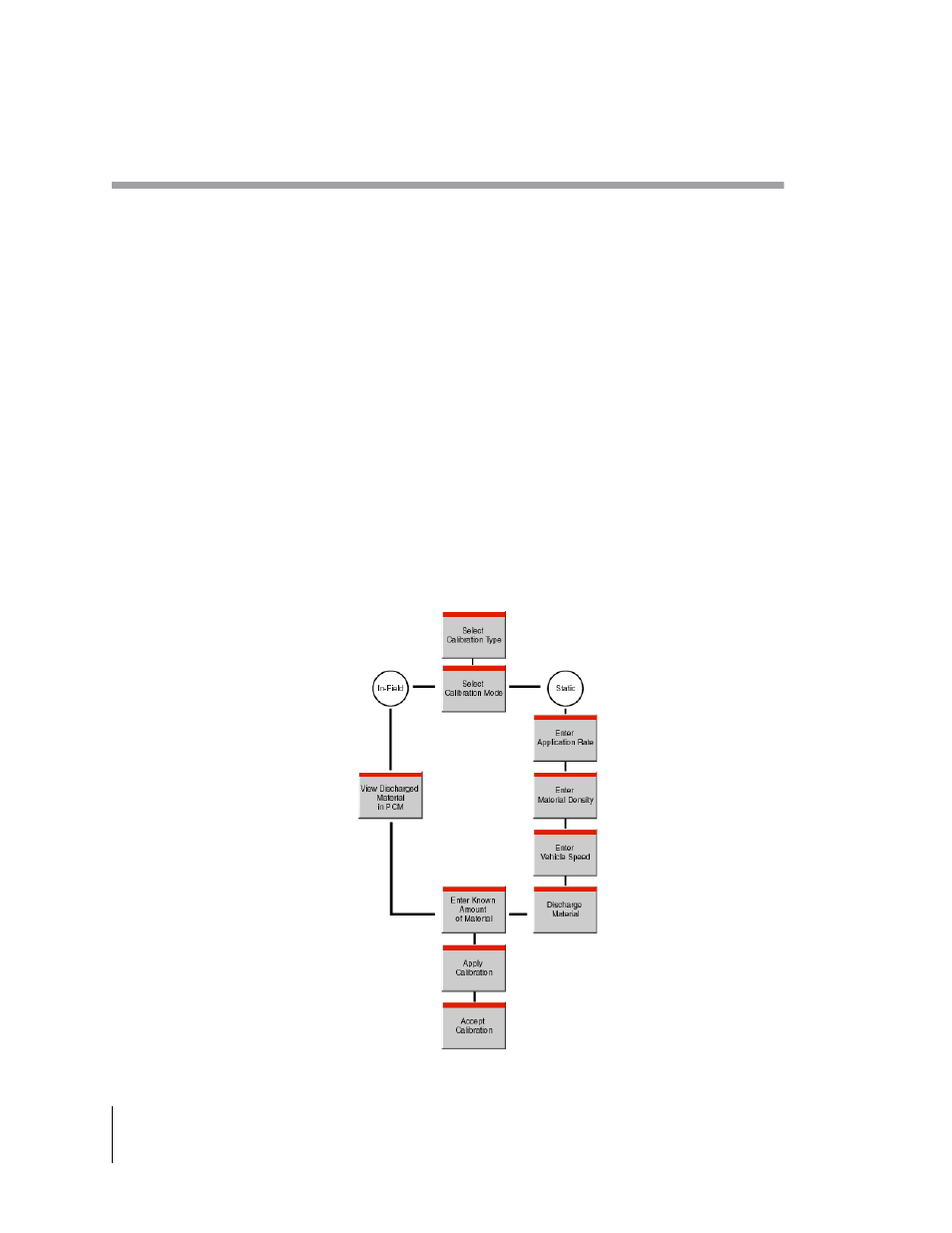

Figure 3-7: Typical Calibration Process
