Chapter 5 - System Tools 2-3
System Tools
Device Manager
This tool allows the viewing of all components connected to the Mid-Tech Legacy 6000 system. In
Fieldware - CB, the CAN Bus, GPS Receiver, Lightbar, PCM, SSM, PSM and Console are avail-
able for diagnostics. Scroll through all of the connected devices and review the current status of
these devices by selecting the Information “i” button. From the information page detailed informa-
tion about each device can be viewed.
Information “i”
CAN Bus
When selecting CAN Bus as the device for diagnostics, a CAN Bus Information page is displayed,
listing all components connected to the CAN Bus serial number and version number.
CAN Bus SofKeys and Description

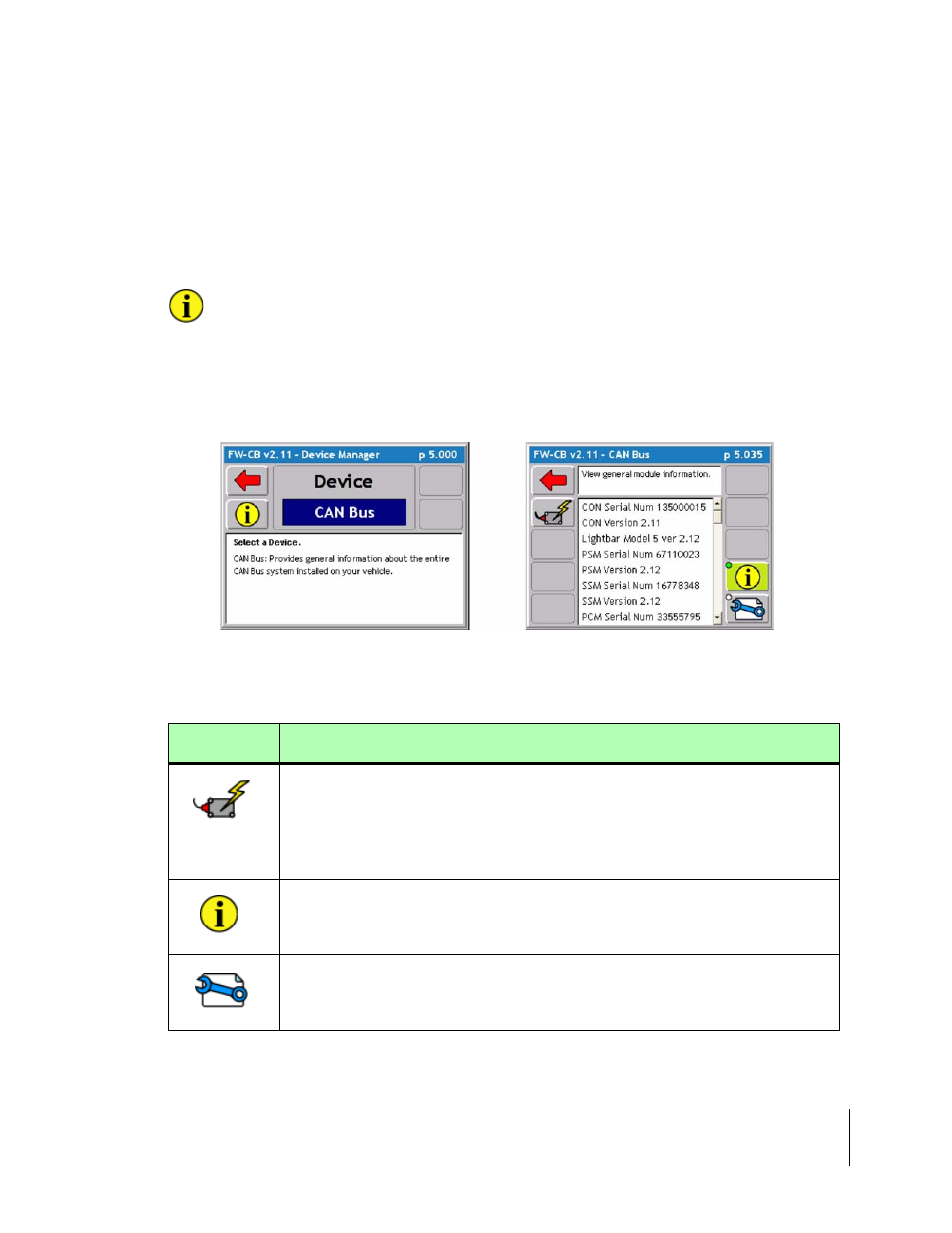

Figure 5-2: The Console Information Page
Button Description
Reset all Modules to factory settings. There are two types of resets, Settings and Arbi-
tration.
Settings - This will reset all modules to factory defaults. Bus history will be retained in
the PSM so modules will not be seen as new.
Arbitration - Erase Bus history so all modules are seen as new. All other module set-
tings will be retained.
View general module information. View serial numbers and software versions of all com-
ponents connected to the Bus.
View CAN Bus statistics.
Table 5-2: Console System File Functions
