TeeJet Legacy 6000 CAN Guide - Manual (Page 96)

3-26 Chapter 3 - Real-time Setup
Prime Injection System
Fieldware for the Legacy 6000
Software Version 2.11
2. Setup System for Priming
Select the Prime button from the ARM launcher page, this will bring up the % Prime page. The
prime page has two buttons (Prime State and Reset Values to Zero.) Prime State provides a
detailed set of values of the priming process. During priming view this page to see the pump prim-
ing progress. The zero button will reset values to zero.
3. Start Prime
From the prime page each pump is ready to prime. Press the prime button on the front of the pump
(top button) or place a magnet on the front of the PCM to start the pump. The pump will stop auto-
matically once the pump volume reaches the prime volume. To view the live prime process select
the Prime State button. Repeat this procedure for each pump..

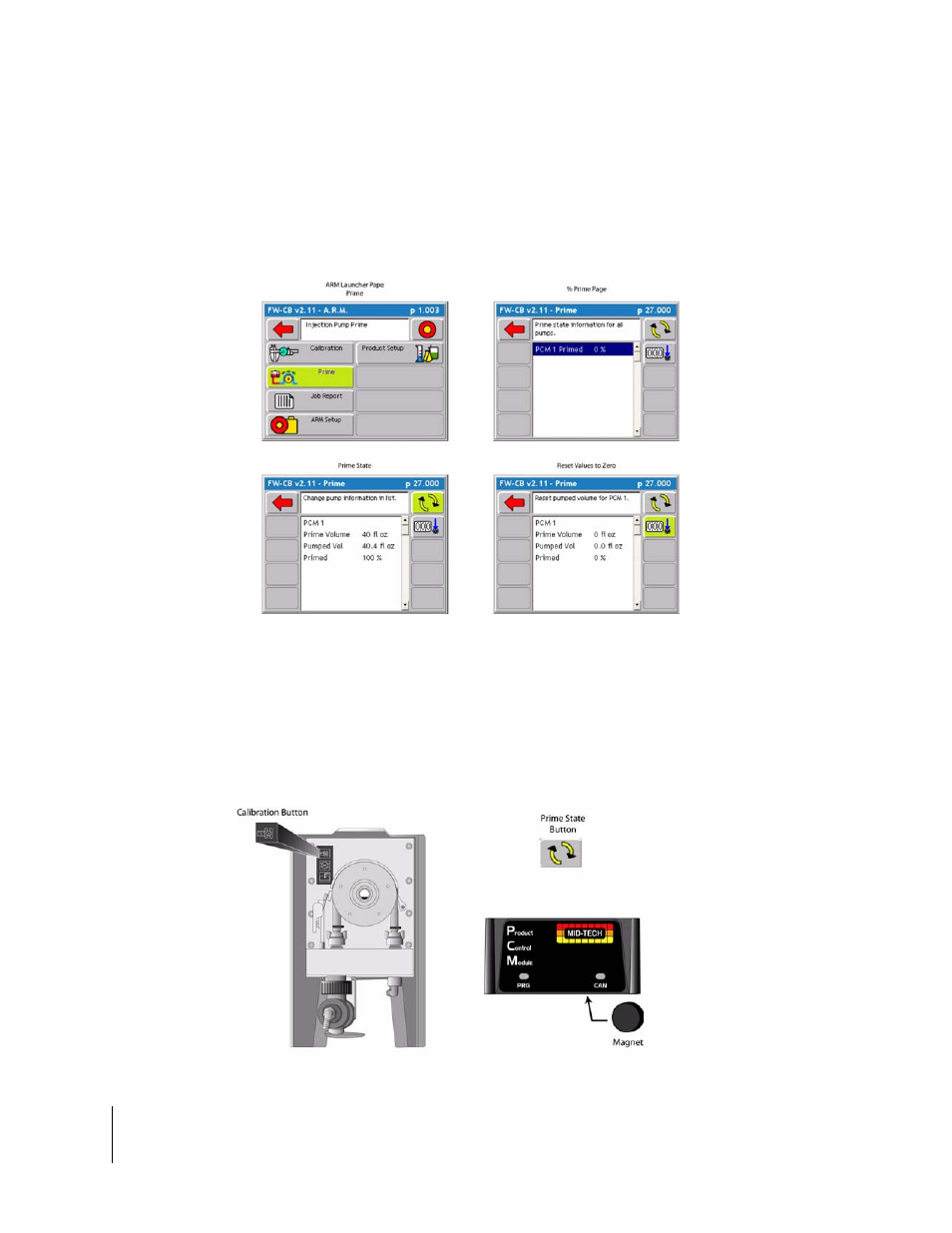

Figure 3-8: Setup System for Priming
Figure 3-9: Prime and Prime State Button
