Fieldware for the Legacy 6000
Software Version 2.11
Chapter 2 - Getting Started 2-21
Product Control Module (PCM) Setup
Selecting a PCM Setup Favorite
The first setup page is the PCM Favorite (Figure 2-27). When the operator configures all PCM
Setup parameters the settings can be saved as a Favorite. Favorites are completed saved ver-
sions of PCM setup. Mid-Tech has taken the time to provide some very basic PCM setups for liquid
and dry applicationsTable 2-6.To view all the default settings for the pre-created favorites (See
“Appendix A - PCM Favorites Settings” on page A-1.) One of the favorites may come close to fit-
ting your application, it will be very helpful to use the closest pre-created favorite to your applica-
tion as a starting point and adjust as needed. When PCM setup is complete save the setup as your
own personnel Favorite. This is very useful if the Legacy is used in more than one application. This
feature will prevent the operator from setting up the PCM every time the application changes, just
select the favorite created for the application and press the Finish flag, apply the settings and GO!
The default configuration is always the current configuration and is listed as in the dia-
log pick list. When creating a new configuration, name the configuration, at the end of the setup
process, on the Finish page.
To view the settings of the loaded configuration, press the review button (Figure 2-27).
Select the desired favorite that best matches the application and press the Forward arrow to
advance to the next PCM Setup page (Figure 2-28). If no other changes are required, press the
Finish button and go directly to the last setup page “Finishing the PCM Setup” on page 2-38.

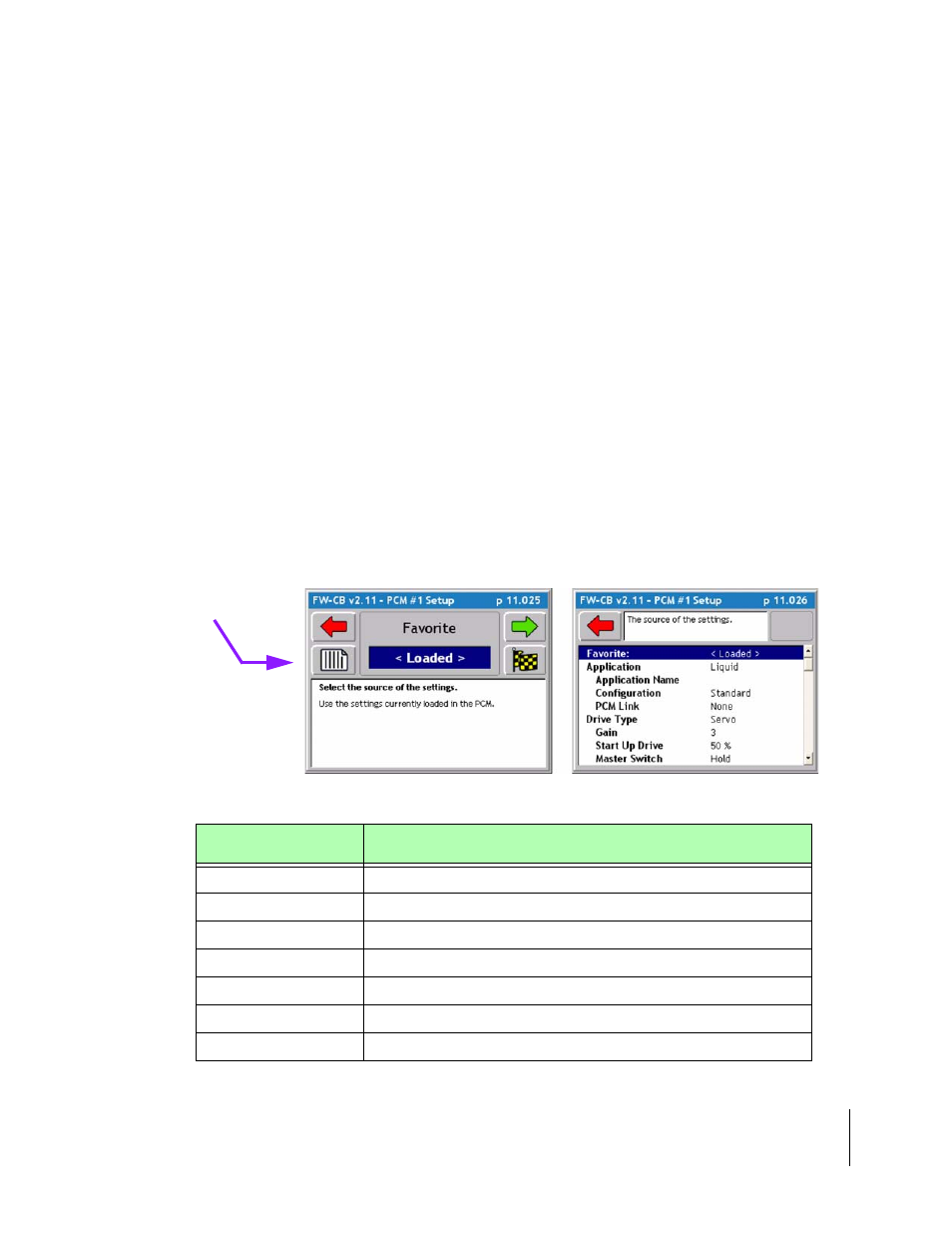

Figure 2-27: The PCM Setup Favorites Page
Favorites Description
GRANC-A Defines a granular application in Split-Drive with three monitors.
GRANPWM-A Defines a granular application using a PWM valve.
GRANSERVO-A Defines a granular application using a Servo valve with one Monitor (shaft).
GRANSERVO-B Defines a granular application using a Servo valve with No monitor.
INJ-A Defines an injection application.
LIQFLOW-A Defines a liquid application using a flowmeter with one monitor.
SPINMOTOR-A Defines a Shaft sensor used to control spinner speed.
Table 2-6: PCM Pre-Created Favorites
Review Settings
Button
