3-42

Chapter 3 - Real-time Setup
Product Setup

Fieldware for the Legacy 6000

Software Version 2.11

One Prescription Map for All Products Continued

5. Select the layer that matches the product and PCM
selected. Note: The operator must know which product
is assigned to each layer in the map.

5. To help verify that the correct layer and product has
been selected the product name should appear.

Select the Prescription Map Layer

If a multiproduct prescription file is not being done, it will not be necessary to set anything in this
page. When using a Multiproduct Prescription file the operator must select different layers for each
product being applied.

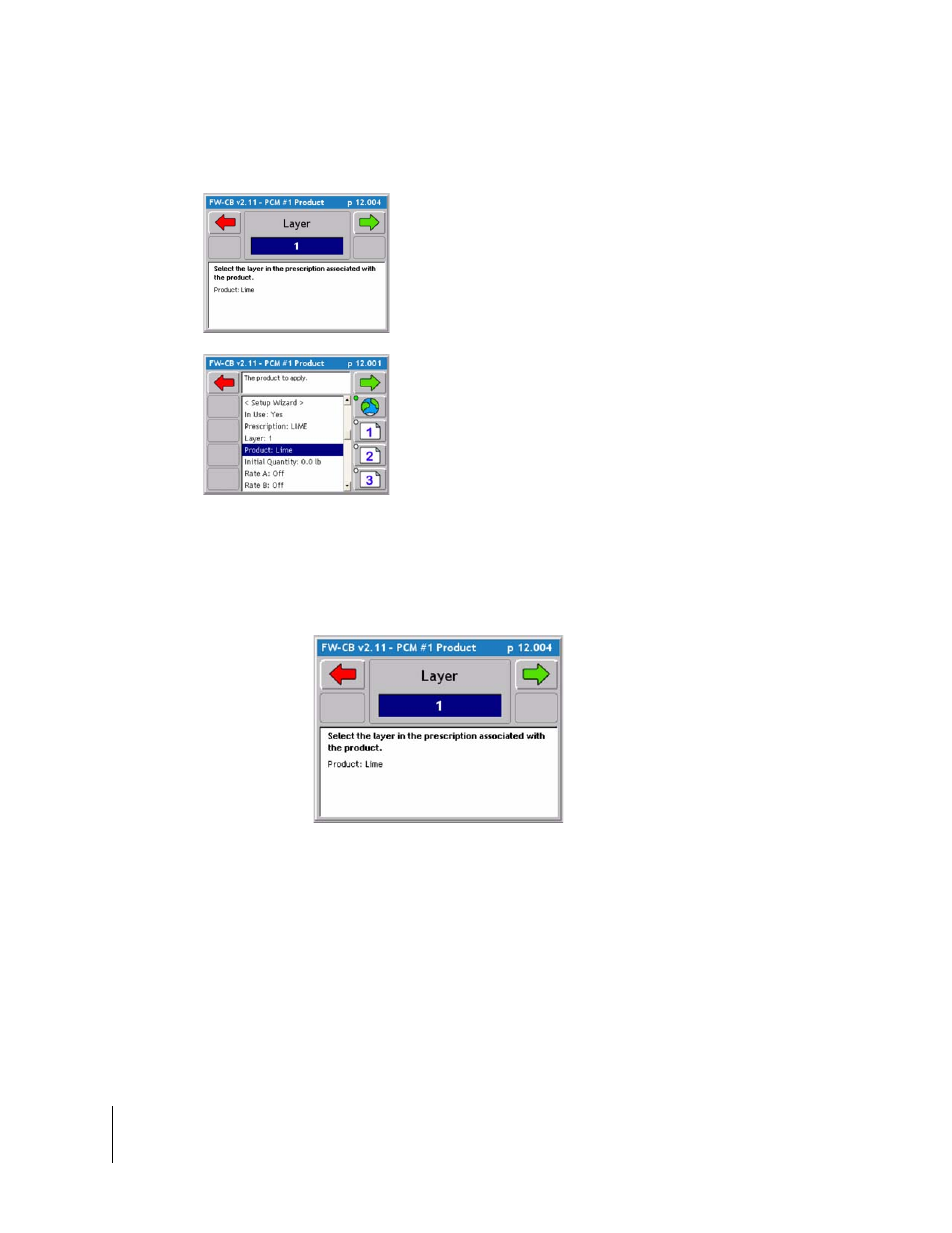

Figure 3-21: The Product Setup Layer Page
