Fieldware for the Legacy 6000
Software Version 2.11
Chapter 2 - Getting Started 2-35
Product Control Module (PCM) Setup
Monitor Settings

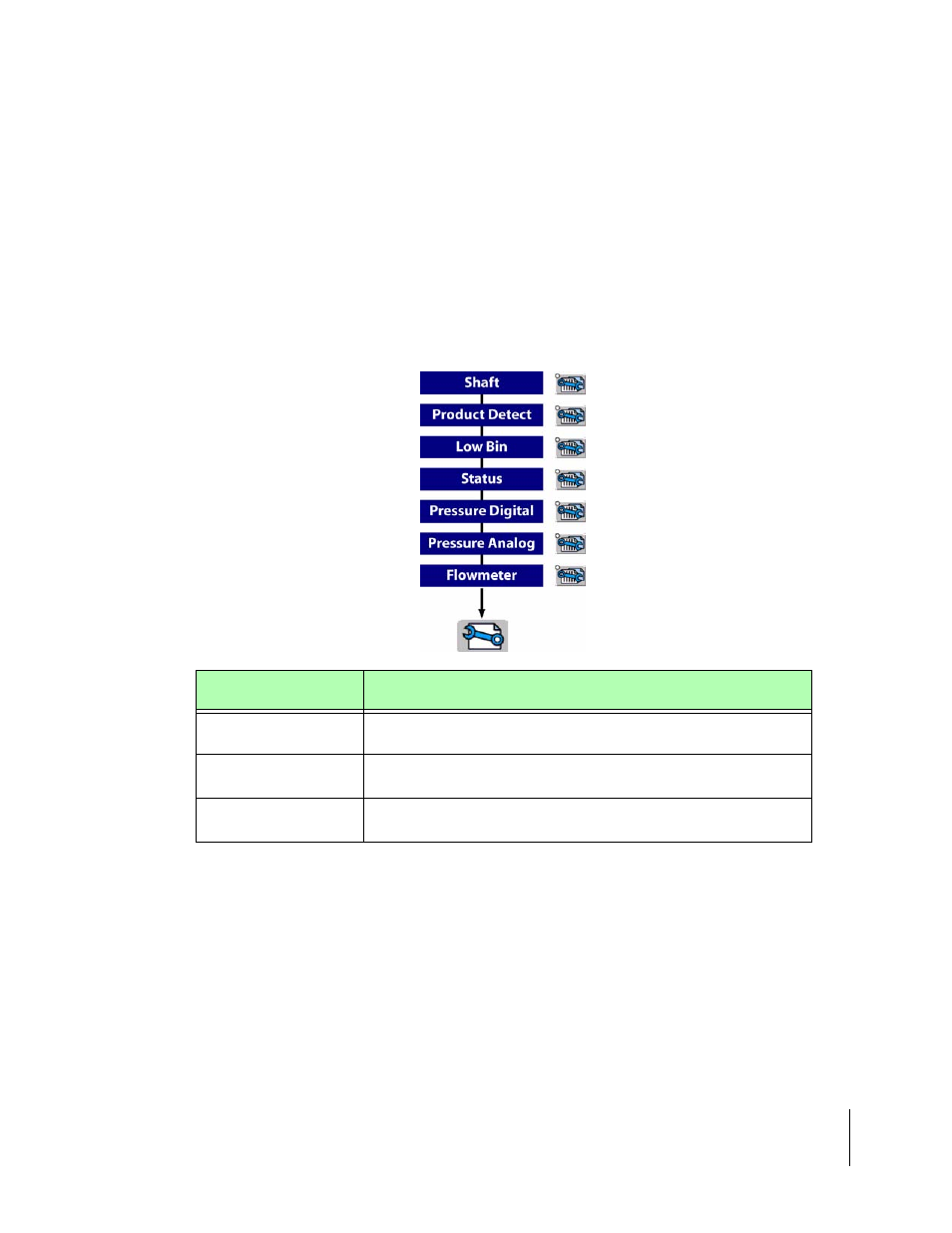

Monitors Shaft, Product Detect, Low Bin, Status, Pressure Digital, Pressure Analog, and Flowme-
ter have detailed settings that are the same. Review (Table 2-20) for a detailed description of the
settings that are the same. All Monitors have initial settings as well as an sub settings. Accessing
the sub settings locate the two Settings Buttons on the right side of the screen, use the two buttons
to swap between settings.see (Figure 2-34) above right image to locate the two buttons. Review
(Table 2-21) and (Table 2-22) for a detailed description of the sub settings for all Monitors. When
the Monitor settings and parameters are selected, press the Forward arrow to advance to the next
PCM Setup page
Monitor Settings Description
Input Defines digital and analog sensors. Senor inputs A-D are digital (flowemeter,
and slot sensors) and Senors E-F are analog (pressure).
Sensor Name A user defined name used to label a particular sensor or monitor. This informa-
tion is not stored in the PCM and is used for messaging to the user only.
Calibration # Enter calibration number in units specified, this number is normally found on
the sensor. Physical calibration will further fine-tune this number.
Table 2-20: Monitors - Initial Settings
