Product Control Module (PCM) Setup
Setting the Units
When the Drive Type is selected, the next PCM Setup page is the Units page (Figure 2-30). The
available units are based on the Application and Drive Type selected. There is an additional page
associated with the Units page. This is the Control Basis page (Figure 2-30) right image. The Con-
trol Basis page determines whether the units available to you are Area based, Time based, or Dis-
tance based. Set this parameter prior to selecting the application units. When the Control Basis
and Units parameters are selected, press the Forward arrow to advance to the next PCM Setup
page

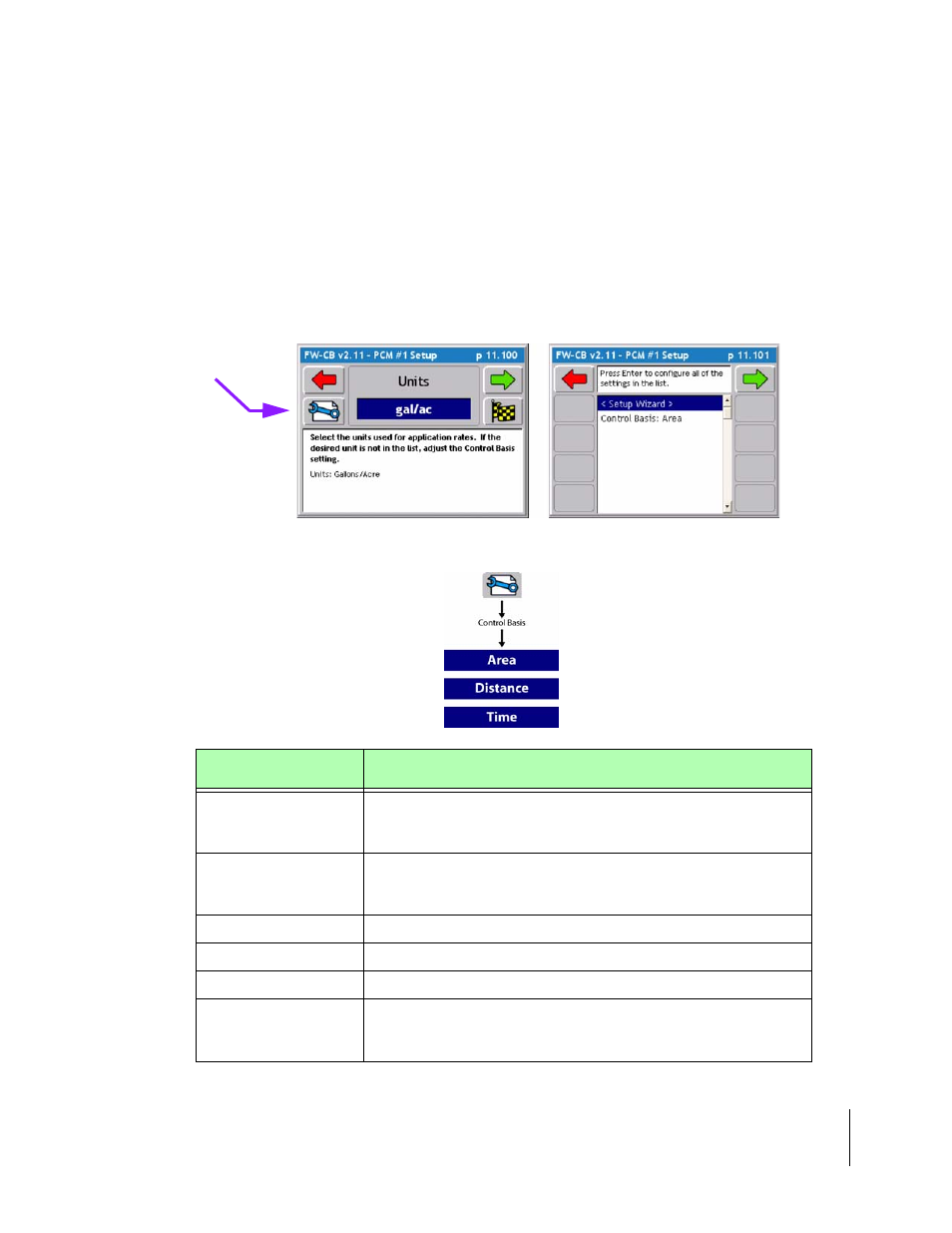

Figure 2-30: The PCM Setup Units Page
Application Types Description
Liquid Area -gal/ac - gal/1000ft 2 - gal/100yd 2 - l/ac
Distance - gal/lmi
Time - gal/min
Granular Area - lb/ac - lb/1000ft 2 - lb/100yd 2 - tn/ac - kg/ac
Distance - lb/mi - lb/lmi - tn/lmi - tn/mi
Time - lb/min - tn/h -
Seeder Area - lb/ac - sd/ac - tubers(tb)/ac - kg/ac
NH3 Area - lb/ac - kg/ac
Motor Time - rpm
Injection
Area - fl oz/ac - fl oz/1000ft 2 - fl oz/100yd 2 - l/ac
Distance - fl oz/lmi
Time - fl oz/ min
Table 2-12: Application Type Options
Control Basis
Button
