3-12 Chapter 3 - Real-time Setup
Performing a Calibration
Fieldware for the Legacy 6000
Software Version 2.11

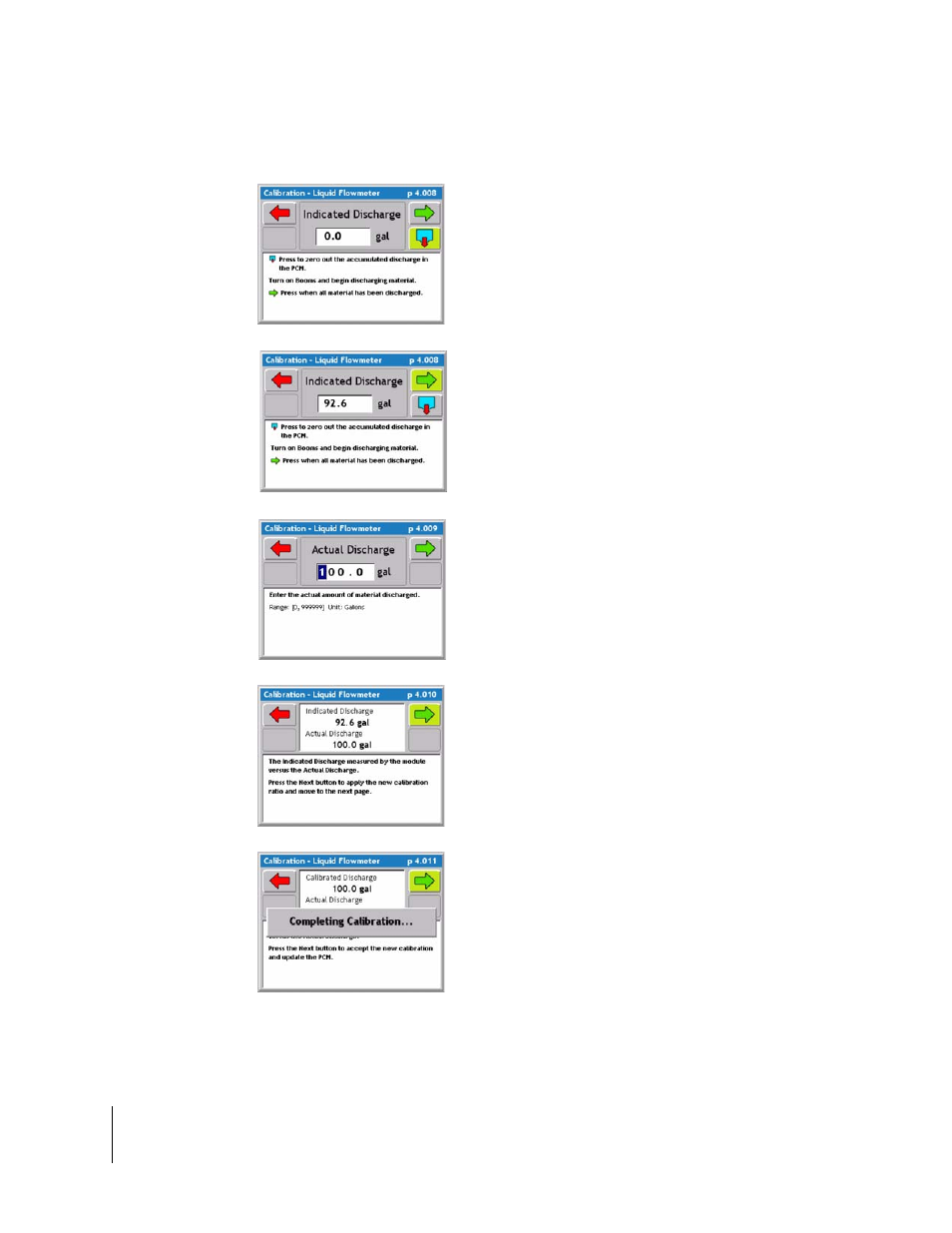

Liquid Flow Static Calibration / Continued
6. This is the indicated discharge, if there is
any product accumulation prior to calibration it
will show here. Press the empty tank button to
zero the indicated discharge. Once zeroed,
turn the product pump on and all boom. prod-
uct should begin to accumulate on the screen.
The system should now be spraying at the
speed and rate entered before.
7. When a know amount has been discharged
shut the booms off and accumulation will stop.
Press the green forward arrow to continue to
the next calibration step
8. Enter the Actual amount discharged. This is
the known amount put in the tank before cali-
bration or know amount discharged by using
the sight gage on the tank. Press the green
forward arrow to continue to the next calibra-
tion step
9. Indicated Discharge Vs. Actual Discharge.
This page is only a information page to show
the operator the Indicated Vs. the Actual.
Press the green forward arrow to automatically
recalculate the calibration number so the two
volumes match.
10. When the two volumes match press the
green forward arrow and the Liquid Flow Cali-
bration procedure is complete.
