Fieldware for the Legacy 6000
Software Version 2.11
Chapter 3 - Real-time Setup 3-39
Product Setup
Variable Rate Application
When applying at variable rates a prescription map is needed. Prescription maps will contain prod-
uct rate information and Product name. The file format that the Legacy excepts is a .ARM file. A
shape file can be converted to a .ARM using Mid-Tech Fieldware Tools desktop software. Recent
versions of prescription writing software can export a .ARM format.
The .ARM file must be placed on the root directory of the card. This means that the file can not be
placed in a folder.
Selecting Prescription Map
The prescription map is loaded on the legacy by selecting Product Setup and then selecting Pre-
scription and pressing enter. Use the Up and Down arrows to scroll through the pick list of pre-
scriptions located in the center of the screen. Once the desired prescription is highlighted press
the enter button or the green forward arrow to complete prescription selection.
Single Product Variable Rate Prescription Map
Select the desired prescription map in product setup press the green forward arrow and GO!.

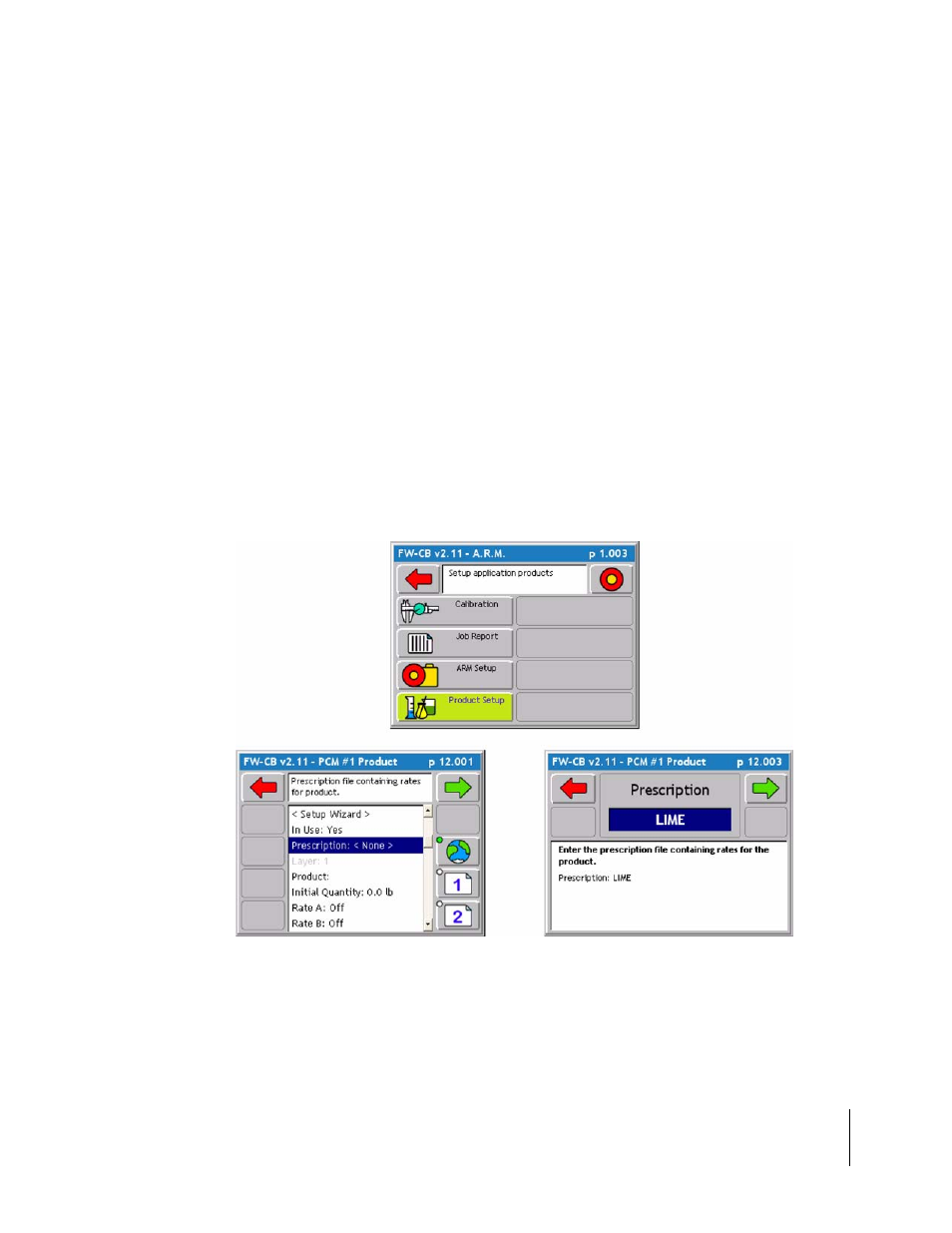

Figure 3-20: The Product Setup Prescription Map Page
