Figure 4-32: guiding along field headland, Figure 4-33: operating in circle pivot pattern, Figure 4-32 – TeeJet Legacy 6000 CAN Guide User Manual

Page 140

4-26

Chapter 4 - Real-time Operation
Real-time Guidance Operation

Fieldware for the Legacy 6000

Software Version 2.11

Figure 4-33 shows product application in progress and Figure 4-34 shows the completed portion of
the center pivot.

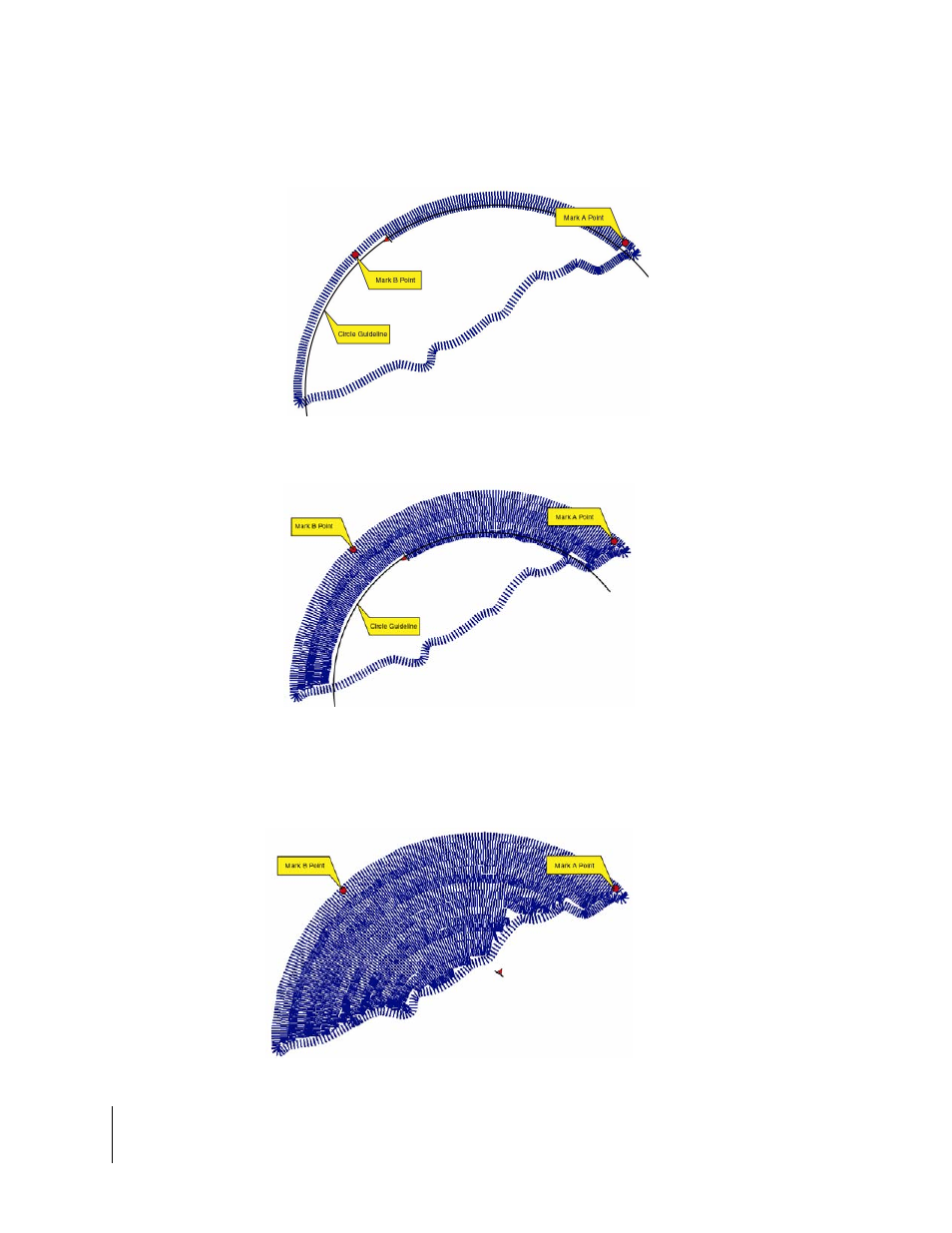

Figure 4-32: Guiding Along Field Headland

Figure 4-33: Operating in Circle Pivot Pattern

Figure 4-34: Completed Field in Circle Pivot Pattern
