Single channel liquid with autoboom shutoff (sfm) – TeeJet Legacy 6000 CAN Guide User Manual
Page 26
1-16
Chapter 1 - System Introduction
Typical Legacy 6000 Configurations
Fieldware for The Legacy 6000
Software Version 2.11
Single Channel Liquid with AutoBoom Shutoff (SFM)
This configuration show the Autoboom Shutoff feature using the Switch Function Module (SFM)

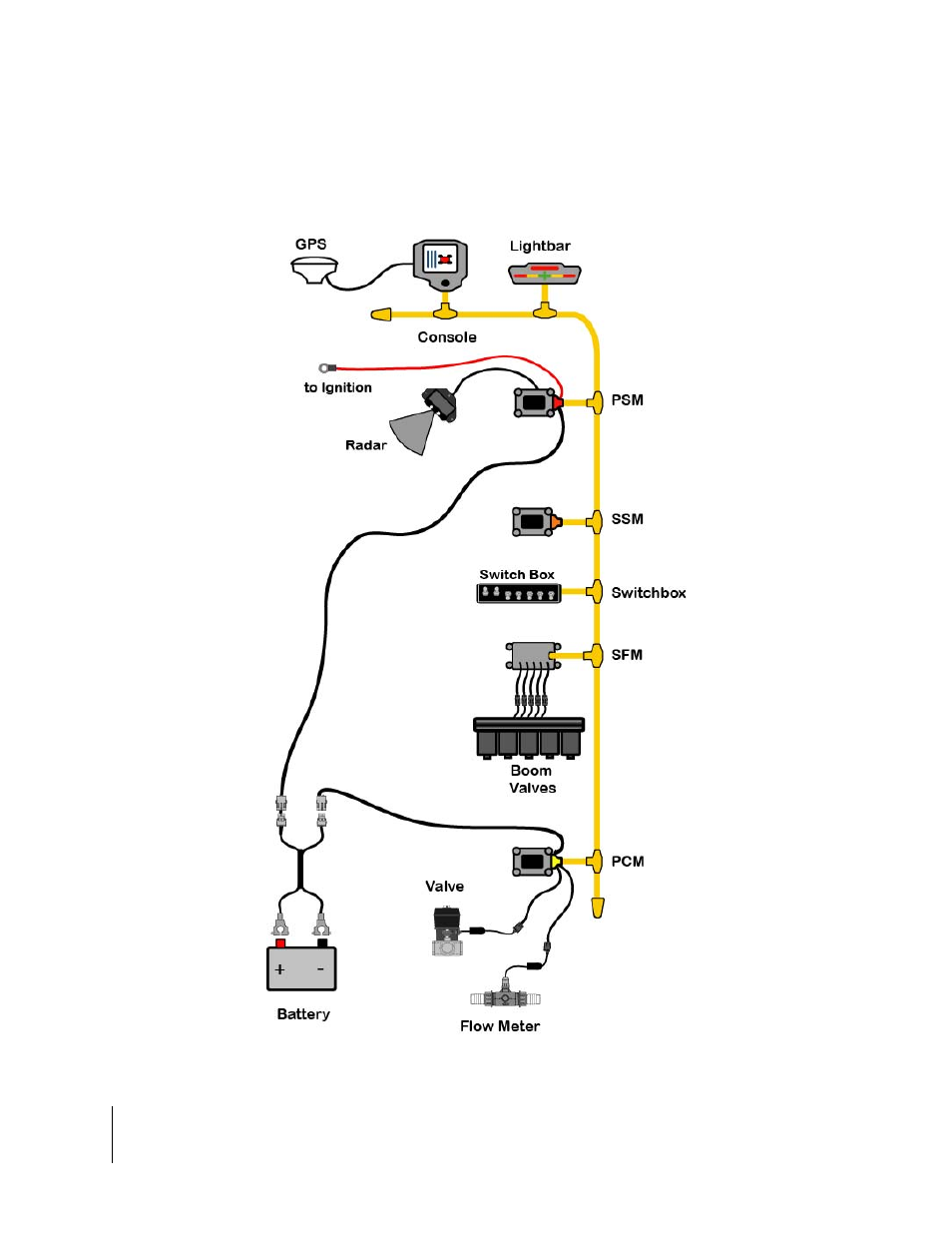

Figure 1-12: Single Channel Liquid with AutoBoom Shutoff
