Chapter 5 - System Tools
5System Tools
Fieldware for the Legacy 6000
Software Version 2.11
GPS Receiver
This tool allows the viewing of any GPS data coming into the com port on the Legacy 6000. It is
recommended this diagnostic be run the first time the GPS receiver is connected to the Legacy
6000 console.
To access the GPS Receiver diagnostic page from the Main Launcher page / System Tools page /
GPS Receiver.
LightBar
When selecting Lightbar as the device for diagnostics, a Lightbar Information page is displayed,
listing the Lightbar version number and lightbar test option
Lightbar SoftKeys and Description

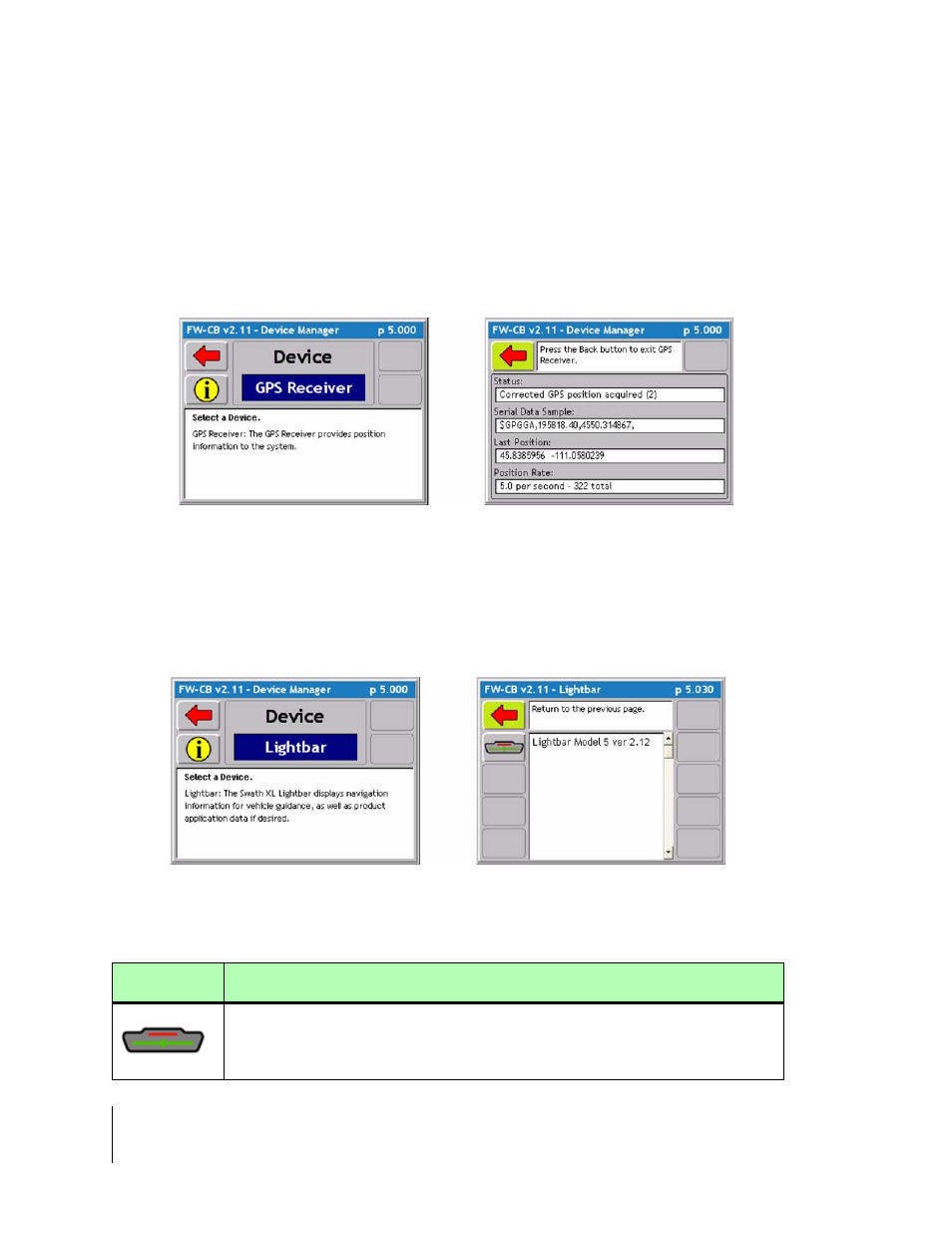

Figure 5-3: The GPS Receiver Diagnostic Page
Figure 5-4:
Button
Description
Performs a test on the lightbar to ensure LED functionality and communication.
