Performing a Calibration
Fieldware for the Legacy 6000
Software Version 2.11
Granular & Seeder Static Calibration / Continued

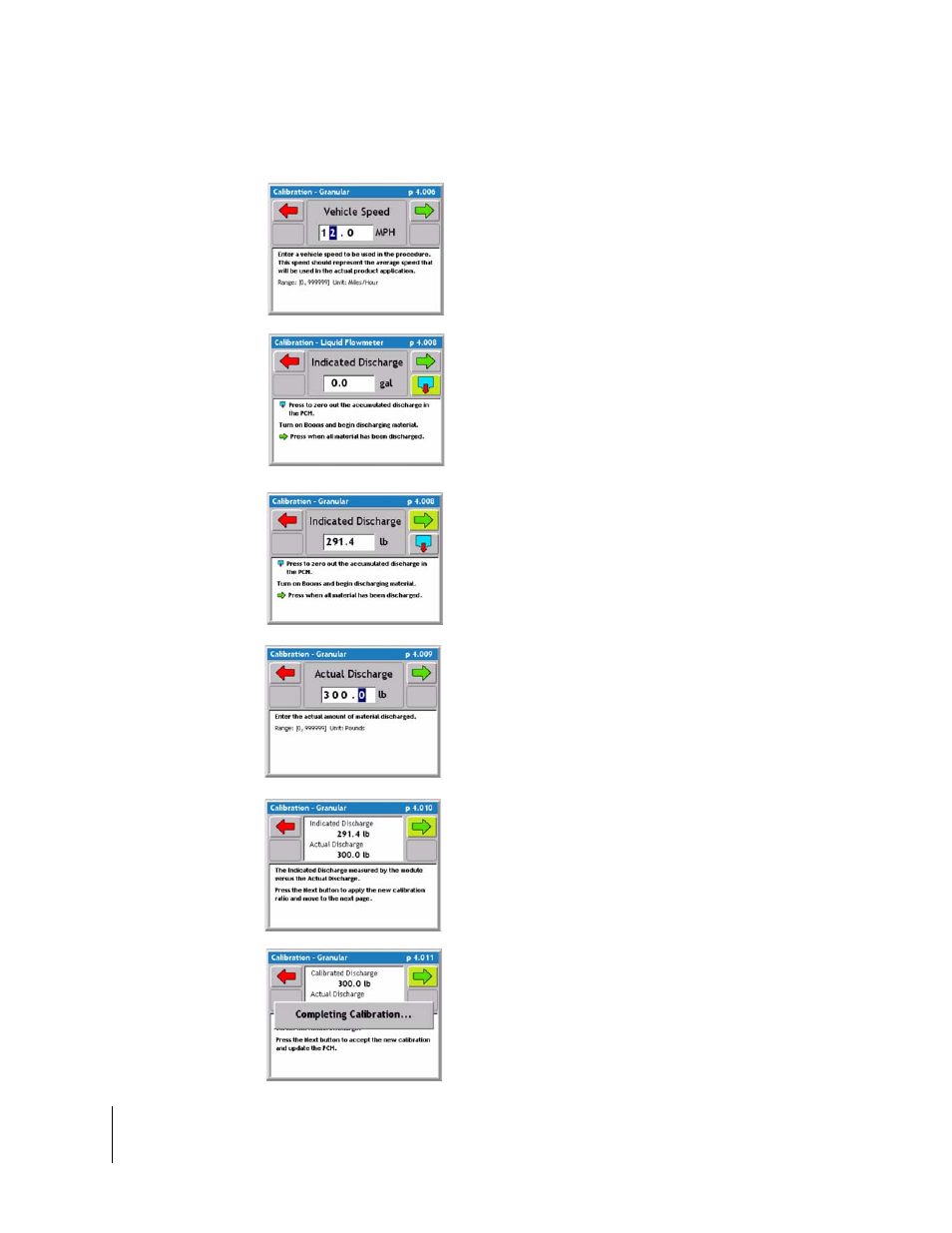

6. Enter the normal operating speed when
applying. Press the green forward arrow to
continue to the next calibration step.
6. This is the indicated discharge, if there is
any product accumulation prior to calibration it
will show here. Press the empty tank button to
zero the indicated discharge. Once zeroed,
turn the product on. Product should begin to
discharge and accumulate on the screen. The
system should now be applying at the speed
and rate entered
7. When a know amount has been discharged
shut the product off and accumulation will
stop. Press the green forward arrow to con-
tinue to the next calibration step
8. Enter the Actual amount discharged. This is
the known amount loaded before calibration or
know amount discharged by weighing the
machine. Press the green forward arrow to
continue to the next calibration step
9. Indicated Discharge Vs. Actual Discharge.
This page is only a information page to show
the operator the Indicated Vs. the Actual.
Press the green forward arrow to automatically
recalculate the calibration number so the two
volumes match.
10. When the two weights match press the
green forward arrow and the Liquid Flow Cali-
bration procedure is complete.
