4-20 Chapter 4 - Real-time Operation
Real-time Guidance Operation
Fieldware for the Legacy 6000
Software Version 2.11
Ignore Headland Pattern Example
Step 1: Start Applying Headlands
From the Map page during real-time operation, make sure you are in Headland guidance mode.
Press the Headland On button and begin applying the first headland pass. During the first pass
you can be mapping out the field boundary, see (Mapping a Field Boundary on page 5-30). Apply
as many headland passes as you like. You can also mark the A and B points for Straight-Line guid-
ance, see (The Straight-Line Guidance Pattern on page 5-14). Figure 24 shows the vehicle apply-
ing the first headland pass. The Headland On button is shown to the left.
Step 2: Select Headland Off Mode
When you have completed the last headland pass, press the Headland Off button. The data you
collected between pressing the Headland On and then the Headland Off buttons are now consid-
ered the data you want to represent the applied headland portion of the field. Figure 25 shows the
vehicle applying the second headland pass. The Headland OFF button is shown to the left.

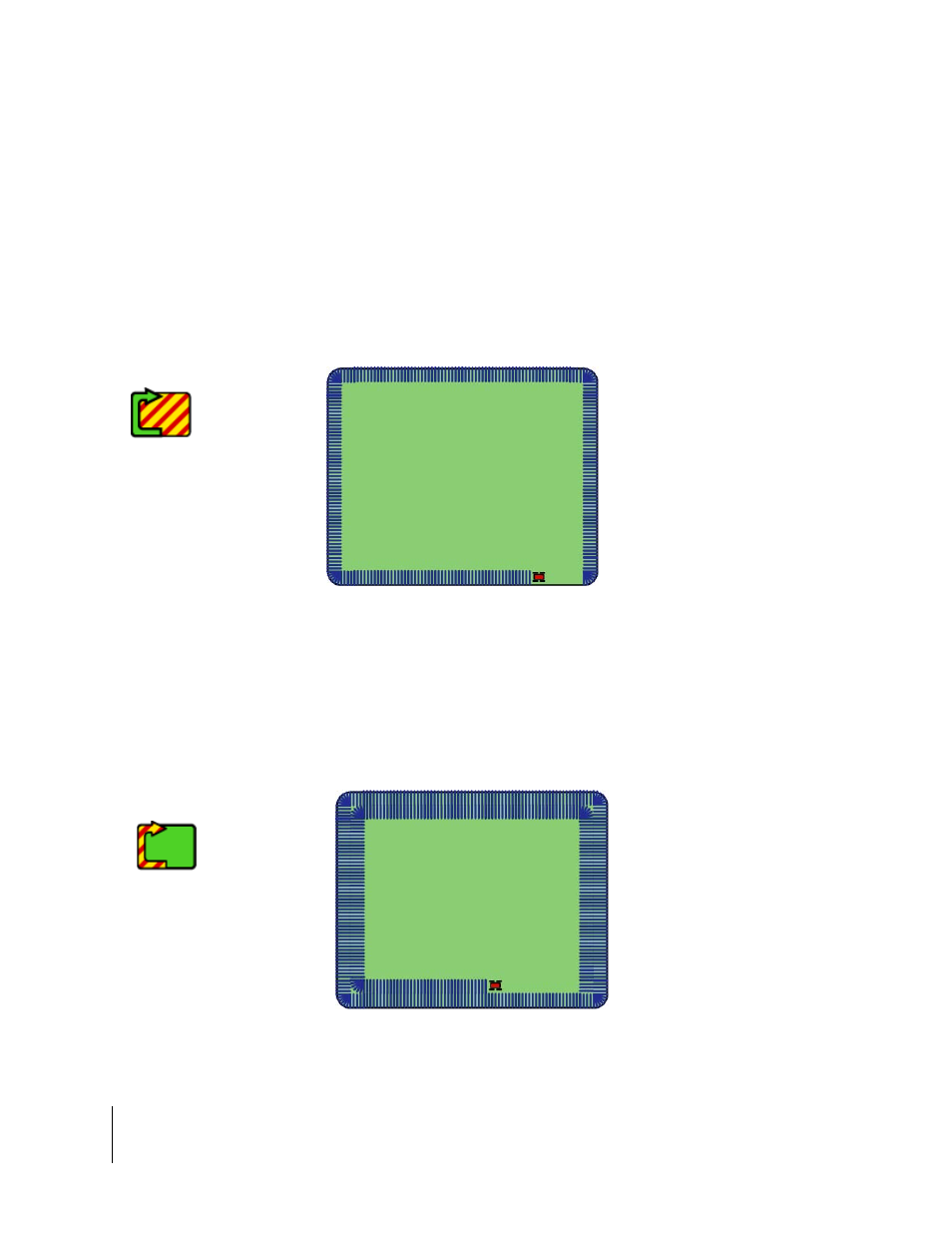

Figure 4-24: Applying the First Headland Pass
Figure 4-25: Applying the Second Headland Pass
