Page 24: Single channel liquid flow meter -14
1-14
Chapter 1 - System Introduction
Typical Legacy 6000 Configurations
Fieldware for The Legacy 6000
Software Version 2.11
Typical Legacy 6000 Configurations
The following schematics reflect some typical Legacy 6000 configurations. Due to the variety of
possible configurations, these schematics should be used for general reference. Contact Midwest
Technologies or your dealer for detailed information regarding your specific configuration and
installation.
Single Channel Liquid Flow Meter

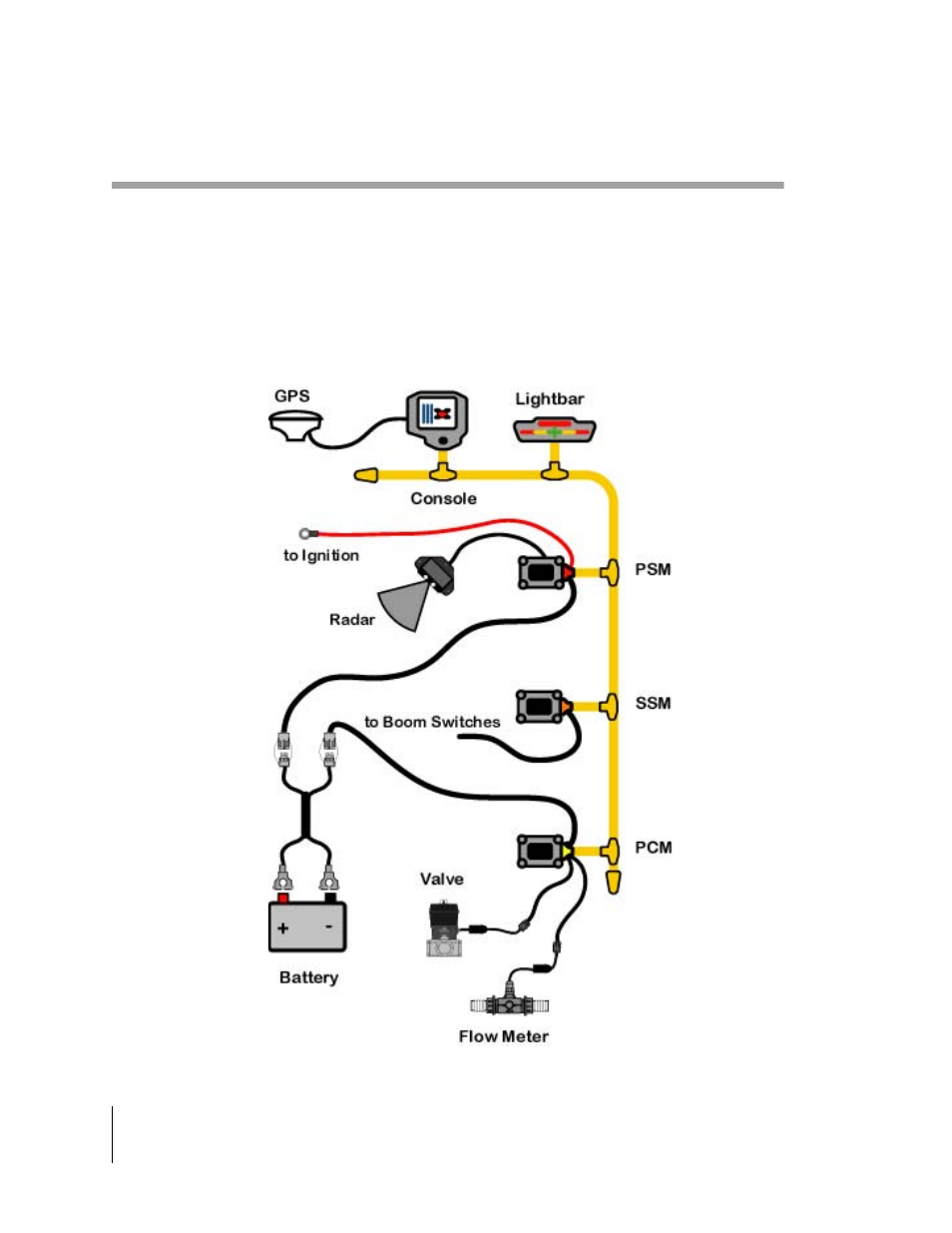

Figure 1-10: Single Channel Liquid Flow Meter Configuration
