Product Control Module (PCM) Setup
Selecting the Secondary Sensor
The Secondary sensor is used in conjunction with a Primary sensor. The Secondary Sensor types,
available in this pick list, are based on the Application type and Primary Sensor type selected (Fig-
ure 2-33). Each Secondary sensor type has a Settings Button which brings up the Sensor Settings
page. The Secondary Sensor parameters depend on the type of Primary Sensor selected (Table 2-
16).
Each PCM has six input sensors labeled A through F. Sensor inputs A - D are digital and sensor
inputs E and F are analog. The PCM CAN Bus cable harness comes with the sensor input lines
labeled A - F. The input line for a sensor can be set on the Sensor Settings page.

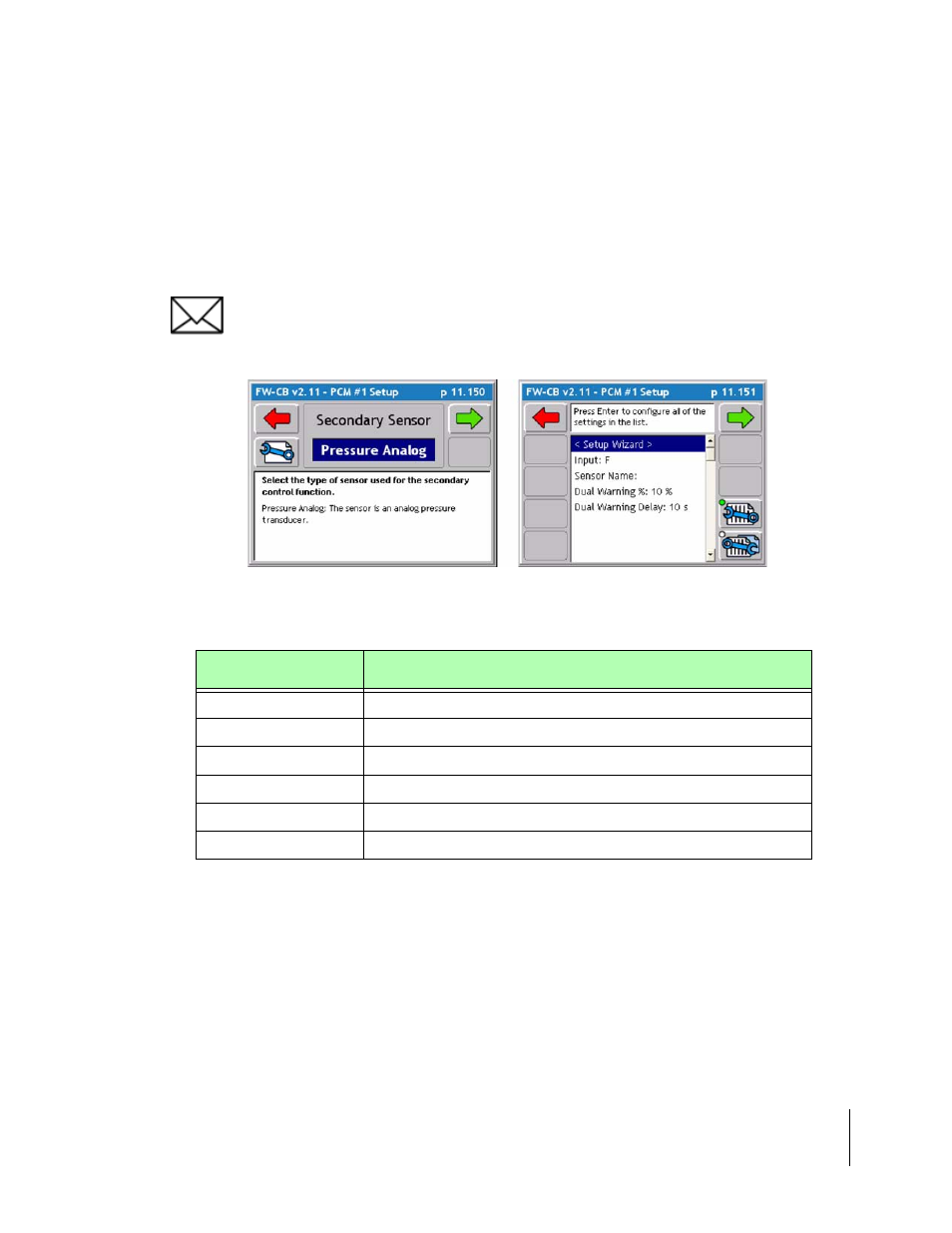

Figure 2-33: The Secondary Sensor Page
Primary Sensor Secondary Sensor Option
Flowmeter None
Pressure Digital Pressure Digital
Pressure Analog Pressure Analog
Granular Granular
Shaft Shaft
Injection None
Table 2-16: Secondary Sensor Options
