Fieldware for the Legacy 6000
Software Version 2.11
Chapter 2 - Getting Started 2-3
Software Overview
Screen Navigation & Selection
An operator can easily navigate around the screen by using the buttons on the face of the Legacy
6000, or with the connection of a USB keyboard. The buttons on the face of the Legacy consist of
four navigation arrows, escape (esp), enter, and ten function buttons(Figure 2-3). The ten function
buttons, five down the left and five down the right will be the fastest way to navigate and select
items on the screen. When using the USB keyboard the buttons on the keyboard have the same
function as those on the screen (Figure 2-4).

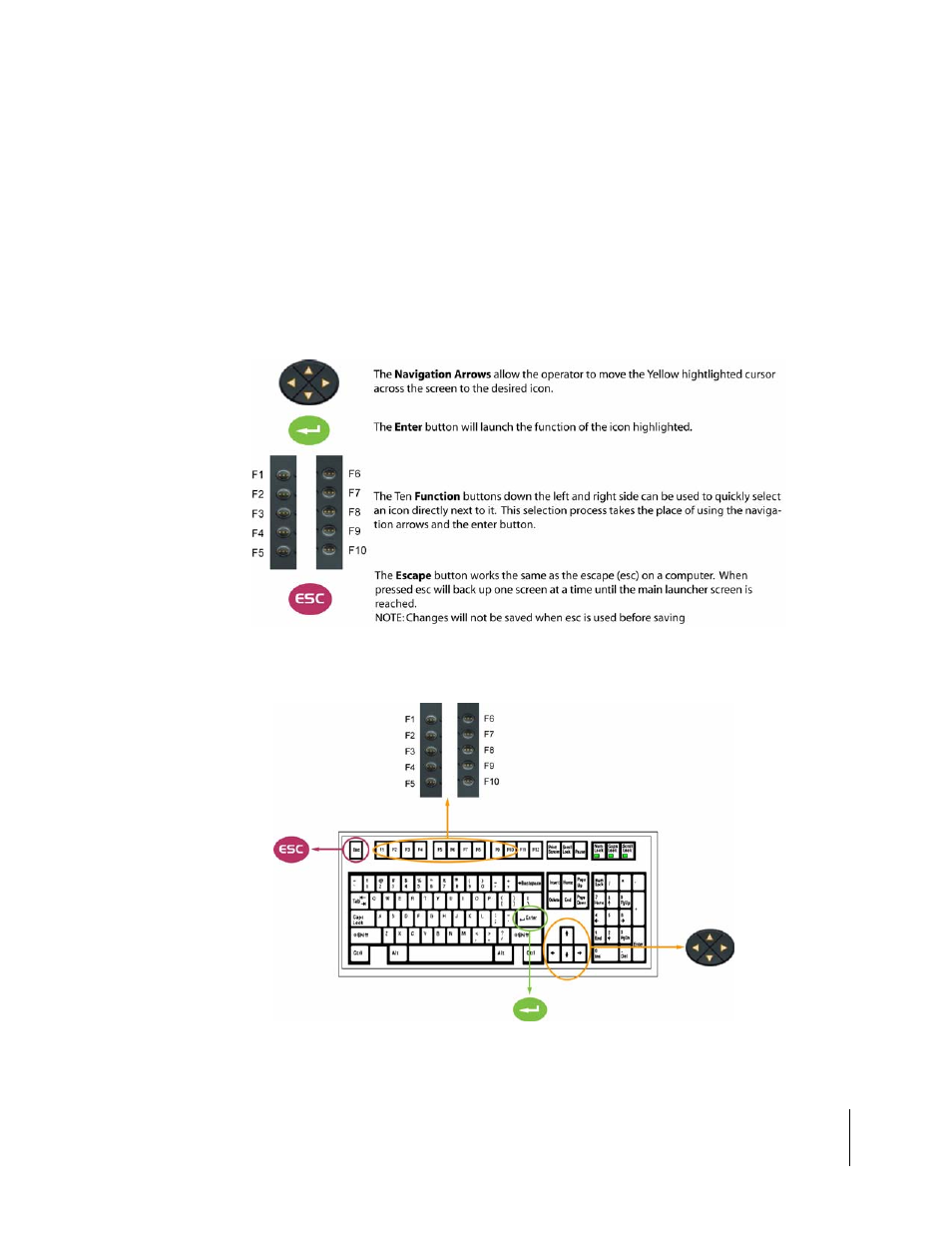

Figure 2-3: Legacy 6000 Screen Navigation & Selection Buttons
Figure 2-4: USB Keyboard Screen Navigation & Selection Buttons
