6-10 Chapter 6 - Running Mapper
Mapper Introduction
Fieldware for the Legacy 6000
Software Version 2.11
Real-time pages
To access the Mapper real-time page select the green Field button from the mapper launcher
page. There are two real-time pages, an Information page and Map page. Each will be described
in more detail.
Map page
The Map pages is the first page the operator will view when entering the mapper session. The map
page allows the mapper application progress to be viewed. This page displays the vehicle at its
current location, as well as current implement status. The application trajectory is also displayed. If
displaying an Base map or back Ground Map the map is seen in the background.
All mapping related soft-keys are displayed in the right side column of the map page. See below
for a description of each soft-key that can be displayed in the Map page.

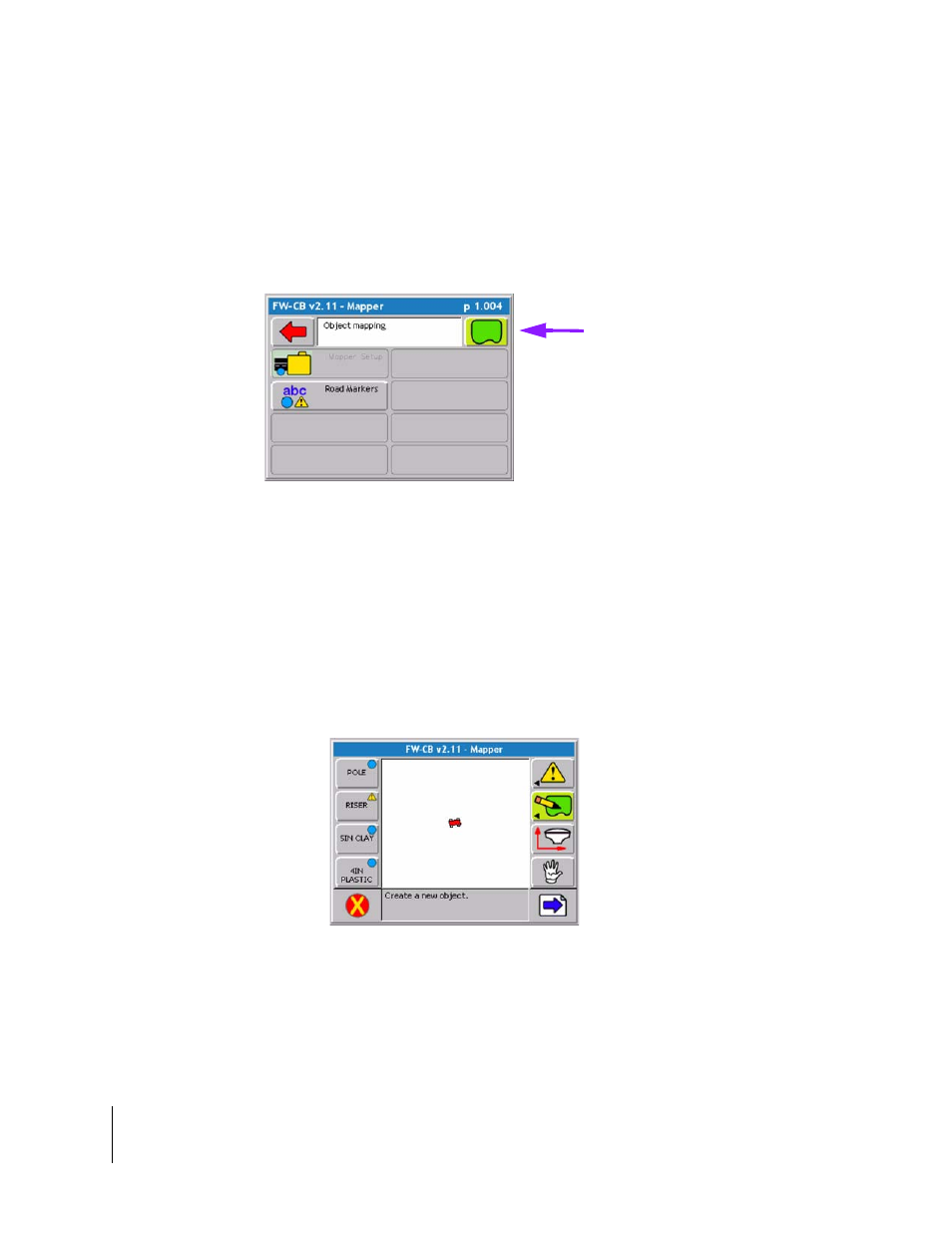

Figure 6-9: Mapper Launcher Button
Figure 6-10: Real-Time Map Page
Launch Mapper
