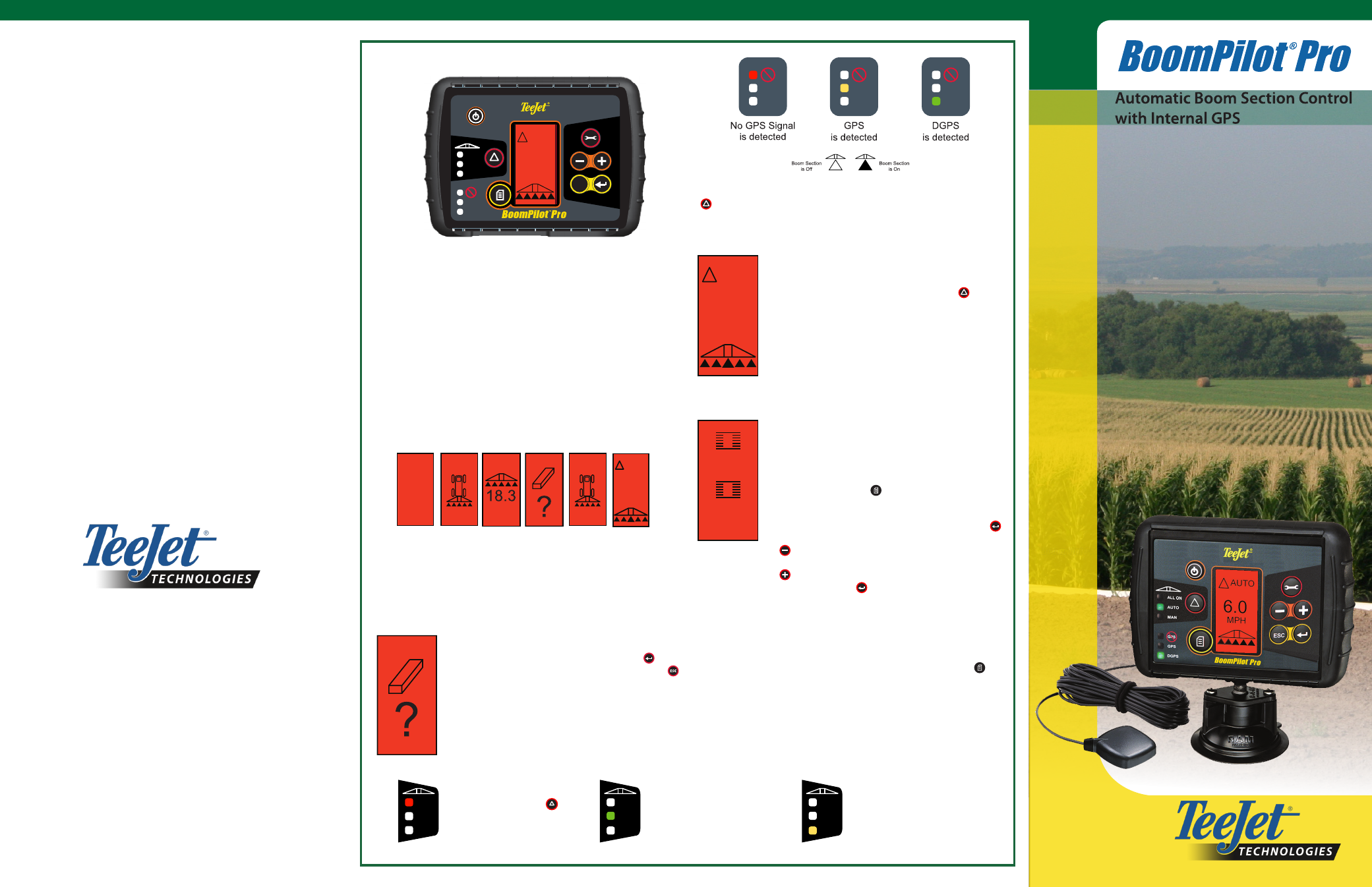

TeeJet BoomPilot Pro - Manual

ALL ON/AuTO/MANuAL MOdes
The BoomPilot Pro will display the current boom section status.
The top of the screen displays the swath mode status (either All
On, Auto, or Manual). The corresponding LED will be illuminated.
To change modes, press the Swath Status Change key. The
Boom Section Status will be displayed on the lower portion of
the screen. A filled in triangle depicts a section that is “On”; an
empty triangle depicts a section that is “Off”. The Vehicle Speed
will be displayed in the middle portion of the screen. Refer to the
illustrations at the bottom of this page for additional information.
AreA COuNTer sCreeN
Area Counter 1 may be used to display the accumulated total of
applied area (in acres/hectares) of the current field. Area Coun-
ter 2 may be used to display the accumulated total of all fields.
These fields are user-defined and may be used to meet the spe-
cific needs of the operator.
Press the Change Page key to access the Area Counter
screen. The screen will display two user-defined counters. The
areas can be reset during operation. To reset an existing area
counter, while on the Applied Area Screen, press the Enter
key once to highlight Applied Area 1. Press and hold the Minus
key for approximately 3 seconds to reset the total in Applied
Area 1. If the area counter was reset by mistake, press the Plus
key to restore the existing setting. Highlight Applied Area 2
by pressing the Enter key. Repeat the process for Area 2 as
required.
NOTE: Once the Area Counter screen is exited, the area reset will
become permanent. The restore feature cannot be used af-
ter the screen has been exited.
To exit the Area Counter screen, press the Change Page key.
The BoomPilot Pro will advance to the Operation screen.
1801 Business Park Drive
Springfield, Illinois 62703 USA
Tel (217) 753-8424
Fax (217) 753-8426
www.teejet.com
98-05146 R1
OperATiONs MOde
pOWer up sequeNCe
Before starting the BoomPilot Pro, make sure the spray controller is powered up and the
Master Switch is set to the “Off” position.
At power up, the BoomPilot Pro will perform the following steps:
Display copyright and version screen for three (3) seconds. •
Display splash screen for two (2) seconds. •
Detect if GPS data are present (this occurs simultaneously within the display •
screen sequence).
Display the current swath width for three (3) seconds. •
The Area Reset screen will be displayed. •
The splash screen will be displayed until the (D)GPS LED is illuminated or until •
Setup mode is entered. Once (D)GPS is locked, the Operation screen will be
displayed.
AreA reseT
During the BoomPilot Pro power up sequence, the Area Reset screen will be displayed:
Area Reset retains existing applied area data. This option al-
lows applied area to be reset for a new field or continue with
an existing field. To reset the Area, press the Enter key. If
the previous application is being resumed, press the Escape
key to continue to Operation or Setup mode. This screen is only
available upon BoomPilot Pro power up. It cannot be accessed
during normal operation.
6.0
MPH
AUTO
1200.0
33200.0
2
1
Acres
OFF ON
While moving forward, enter “All On” by pressing and holding the Swath Status Change
key. Release the key to return to Manual or Auto modes.
ALL ON
AUTO
MAN
The boom sections switch “On” and
“Off” automatically
ALL ON
AUTO
MAN
The boom sections are
controlled on a manual
basis.
ALL ON
AUTO
MAN
All of the boom sections are “On”.
The Swath Status Change
key
must be held down continuously to
be in “All On” Mode.
N
GPS
GPS
DGPS
ALL ON
AUTO
MAN
BoomPilot
ESC
6.0
MPH
AUTO
GPS
GPS
DGPS
GPS
GPS
DGPS
GPS
GPS
DGPS
Area
Reset Screen
Splash Screen
PRO
BOOM
PILOT
Copyright
Software
Version Screen
©2008
BOOM
PILOT
V1.07
Swath Width
Screen
GPS detected
Operation
Screen
PRO
BOOM
PILOT
Displayed
while waiting
for (D)GPS
TeeJet
6.0
MPH
AUTO
