2-16 Chapter 2 - Getting Started
Implement Setup
Fieldware for the Legacy 6000
Software Version 2.11
Entering the Offset Direction X
The Offset Direction X (Figure 2-22) is the direction perpendicular (left or right) of the vehicle cen-
ter line that the center of a swath is offset. Typically this will be set to Centered, as most swaths are
centered on the vehicle’s center line.
If an Offset Direction X of either Right or Left is selected, the next setup page (Figure 2-23) will ask
for the distance of this offset. If Centered is selected, there is no distance and therefore an input a
distance is not asked for.

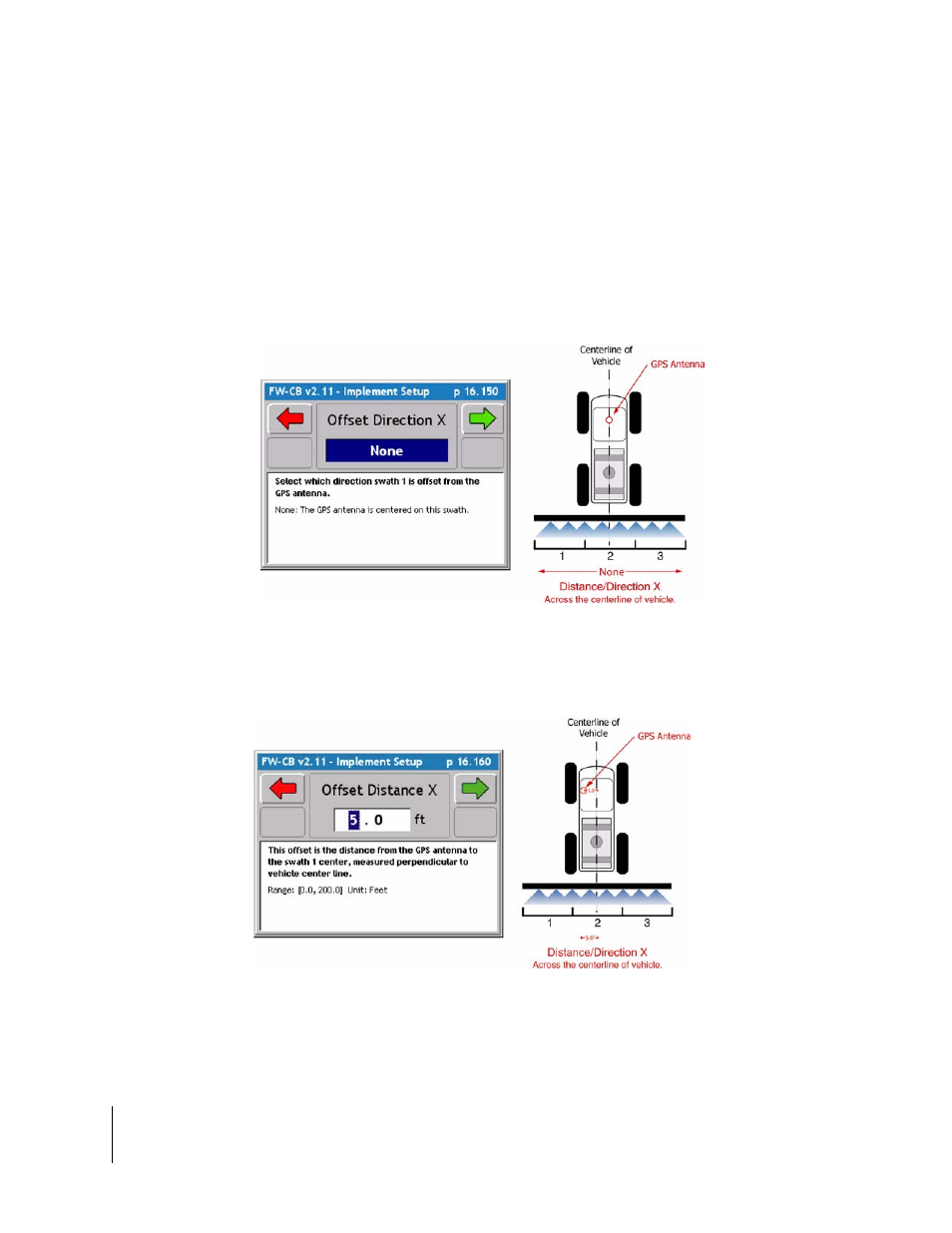

Figure 2-22: The Offset Direction X Page
Figure 2-23: The Offset Distance X Page
