Pressure calibration / continued, Pressure calibration / continued -20 – TeeJet Legacy 6000 CAN Guide User Manual
Page 90
3-20
Chapter 3 - Real-time Setup
Performing a Calibration
Fieldware for the Legacy 6000
Software Version 2.11
Pressure Calibration / Continued

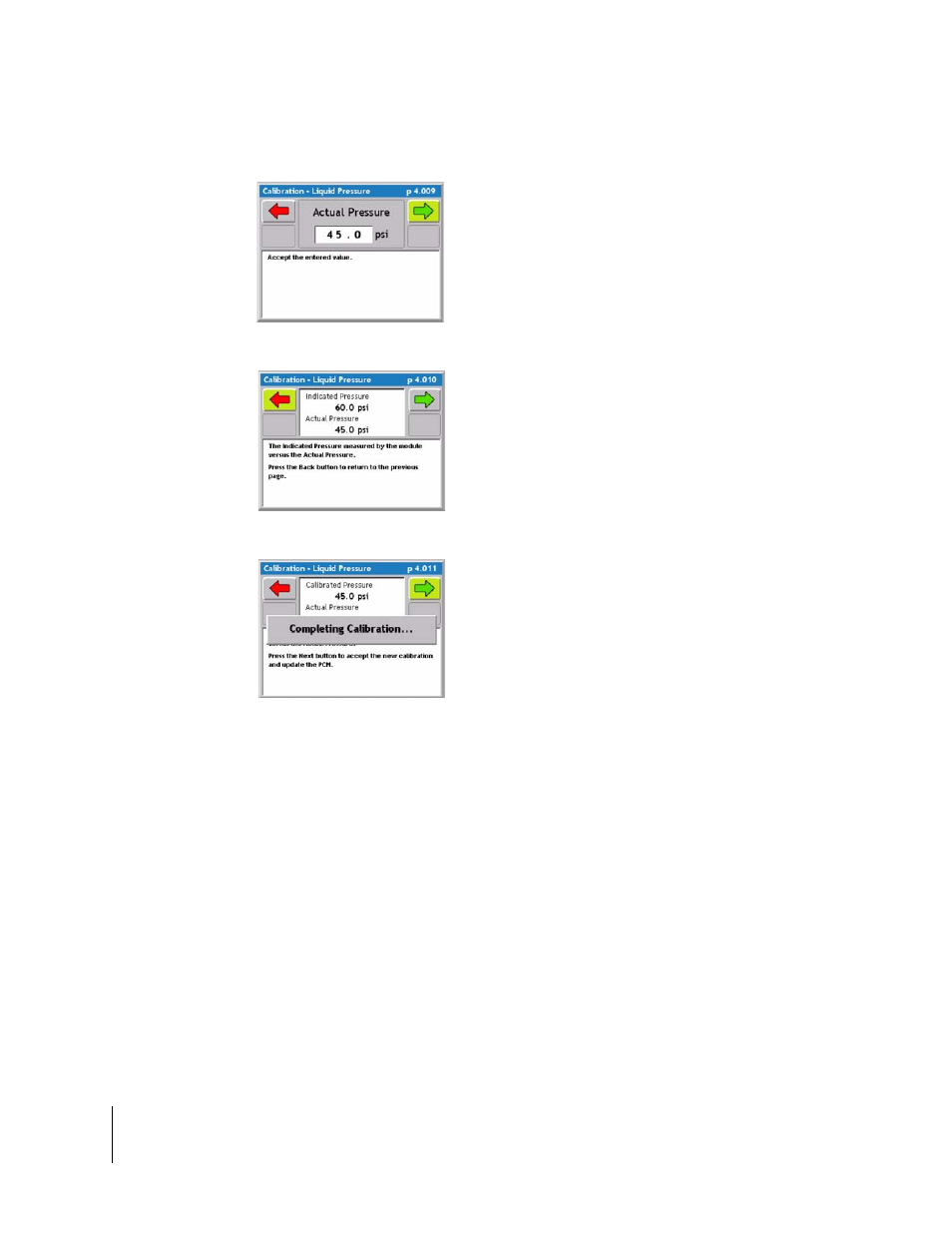

5. Enter the recorded pressure from the man-
ual gage. Press the green forward arrow to
continue to the next calibration step.
6. Indicated Pressure Vs. Actual Pressure.
This page is only a information page to show
the operator the Indicated Vs. the Actual.
Press the green forward arrow to automatically
recalculate the calibration number so the two
volumes match
7. When the two pressures match press the
green forward arrow and the Liquid Flow Cali-
bration procedure is complete.
.
