Chapter 4 - Real-time Operation 4-9
Product Application
The New GuideLine soft-key. This soft-key appears after the initial guideline
has been created. When pressed, this soft-key changes to the Mark A soft-key
and guidance is disabled until a new guideline is created by pressing Mark A
and then Mark B.
The Switch Guideline soft-key. This soft-key appears when more than one
guideline has been created.
Straight-line Parallel Guidance soft-key. This soft-key indicates the current
guidance pattern is straight-line parallel guidance. The initial guideline is
defined by marking end points A and B. Pressing this soft-key pops-up a side
menu to allow the selection of a different guidance mode, such as Headland or
Circle Pivot.
Curved-line Guidance soft-key. This soft-key indicates that the current guid-
ance pattern is Curved guidance. Pressing this soft-key pops-up a side menu
to allow the selection of a different guidance mode, such as Straight-line or Cir-
cle Pivot.
The Ignore Headland Guidance pattern soft-key. When pressed, headland data
identified using the Headland On and Headland Off soft-keys, are excluded
from vehicle guidance. See (The Ignore Headland Guidance Pattern on page
5-19).
The Headland On soft-key. When pressed any applied data collected will be
considered part of the field headland. See (Step 1: Start Applying Headlands
on page 5-20).
The Headland Off soft-key. When pressed any applied data collected will not
be considered part of the field headlands. See (Headland Pattern Example on
page 5-16).
Circle Pivot Guidance soft-key. This soft-key indicates the current guidance
pattern is Circle Pivot parallel guidance. The initial guideline is defined by
marking points A and B along a circle. Pressing this soft-key pops-up a side
menu to allow the selection of a different guidance mode, such as Headland or
Straight-line.
The Circle Mark A soft-key is used with the Circle Pivot pattern. This soft-key is
pressed to mark the first end point of the initial circle guideline. When pressed
this soft-key changes to the Circle Mark B soft-key.
The Circle Mark B soft-key is used with the Circle Pivot pattern. This soft-key is
pressed to mark the end point of the initial circle guideline. When pressed this
soft-key changes to the New Circle Guideline soft-key.
The Circle Mark B Wait soft-key. This soft-key appears when the Circle Mark A
has been pressed and the software is collecting enough points (approximately
12 seconds) to describe a circle. After approximately 12 seconds has passed,
this soft-key is replaced by the Circle Mark B soft-key.

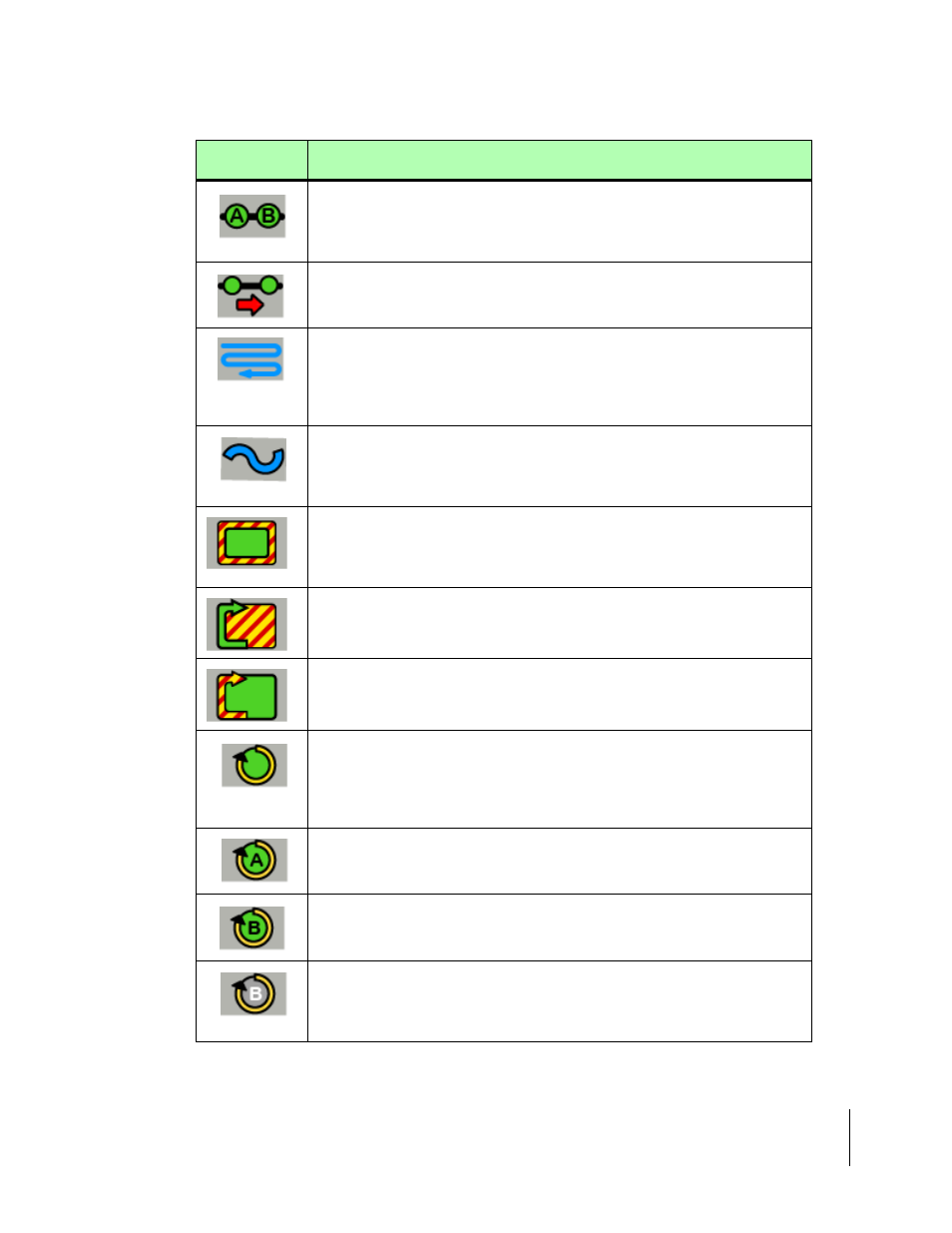

Soft-key Description
Table 4-1: Real time Soft-key Description
