6-16 Chapter 6 - Running Mapper
Mapper Tools
Fieldware for the Legacy 6000
Software Version 2.11
The Options Menu
In the Map Page is an Options soft-key (Swiss Army Knife). Pressing the Options soft-key “pops-
up” a small menu window on the Map page (Figure 6-13). The options menu contains several
mapping aides and tools that can be used without exiting out of the real-time process. All items in
the Option menu are toggle type; the item is set to either on or off. To activate an Option item, sim-
ply arrow down to the item and press enter. Pressing enter switches the state of the Option item.
For example, if the item was on, it is switched to off. Table 6-5 describes each Options menu item.

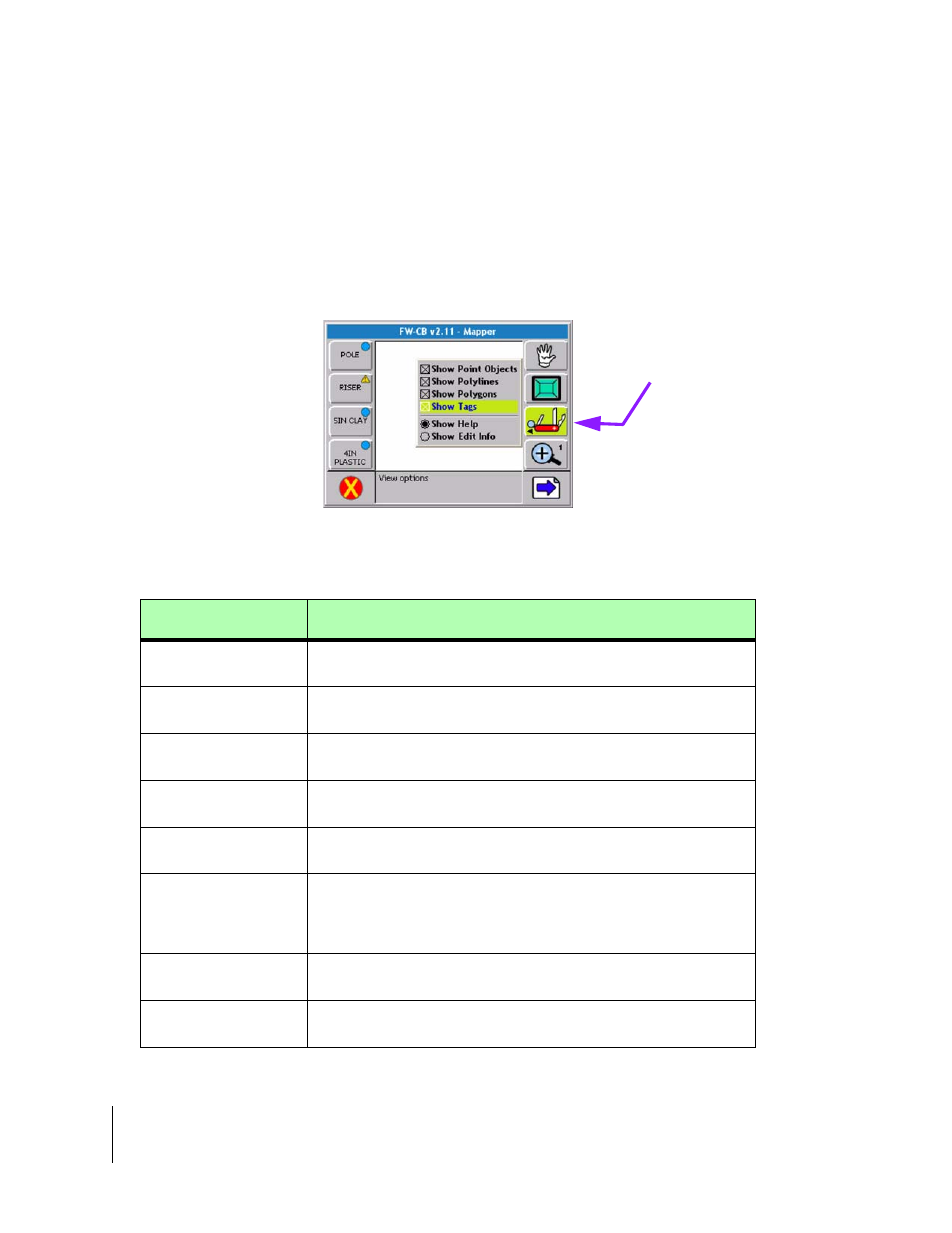

Figure 6-13: The Options Menu
Option Description
Data Zoom When activated, the map page uses collected data, not the back-
ground map, as its Zoom extents.
Show Base Map When activated, the base map file is displayed in the background.
When turned off the base map file is not displayed.
Show Point Objects When activated, all point objects, contained in the Map file (GMF)
named in Mapper setup, are displayed in the Map page.
Show Polylines When activated, all polylines, contained in the Map file (GMF) named
in Mapper setup, are displayed in the Map page.
Show Polygons When activated, all polygons, contained in the Map file (GMF) named
in Mapper setup, are displayed in the Map page.
Show Tags All mapping objects have an associated tag, which contains the map-
ping object type and some associated attributes. When this item is
activated, a tag is shown with each mapping object. This is useful if it
is necessary to see the attributes of a particular object.
Show Help When activated, help information is displayed in the bottom half of the
map page. The help text corresponds to the highlighted soft-key.
Show Edit Info When activated, attribute information for the nearest map object is
displayed in the bottom half of the Map page.
Table 6-5: Options Menu Description
Options
soft-key
