Chapter 2 - Getting Started
Product Control Module (PCM) Setup
Fieldware for the Legacy 6000
Software Version 2.11

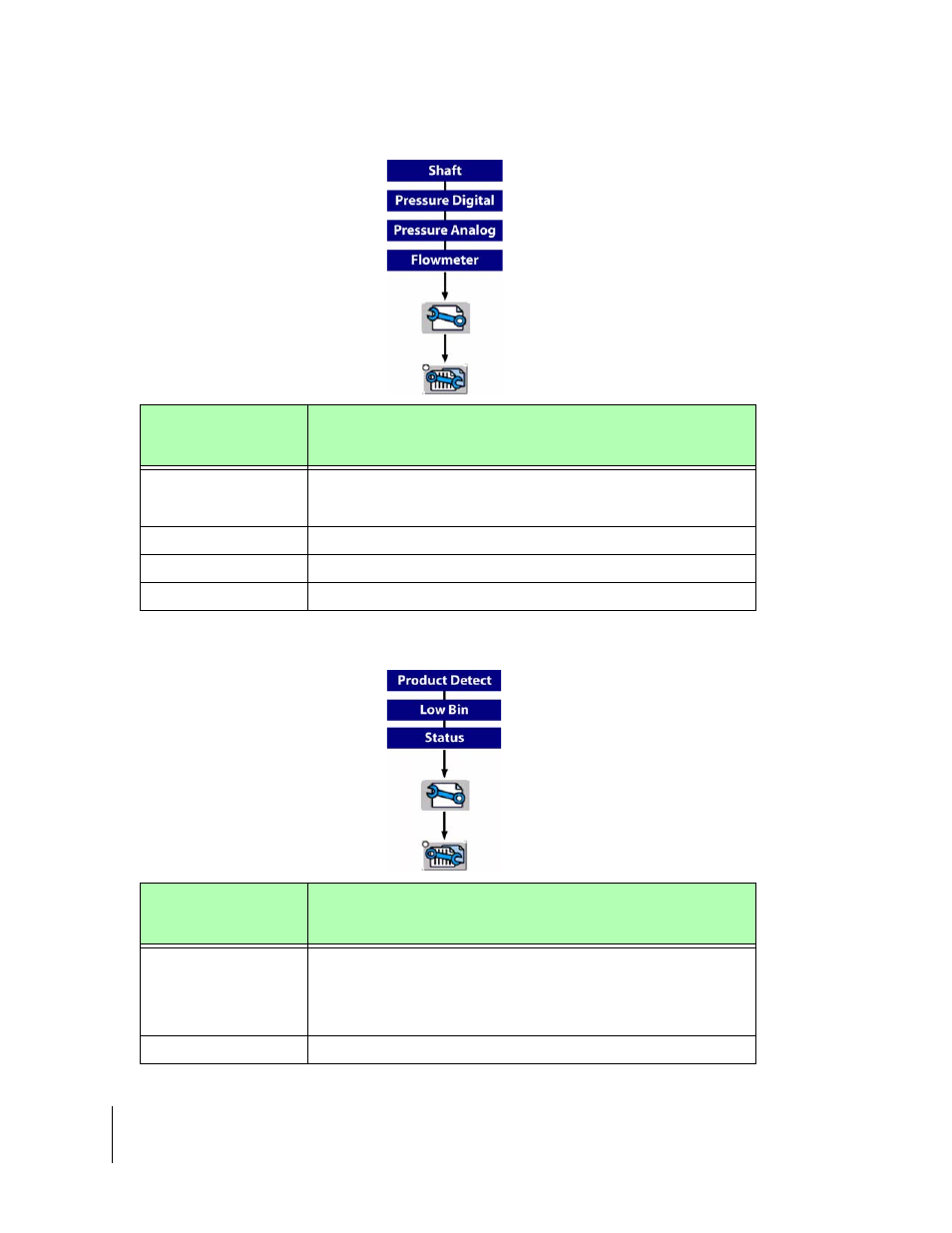

Monitor
Sub-Settings
Description
Alarm Units
Pressure - psi
Flowmeter - gal/min
Shaft - rpm
Min. Alarm
Defines the limit below which the min. alarm will be active.
Max. Alarm
Defines the limit above which the max. alarm will be active.
Alarm Delay
Defines the duration the alarm condition must exist before triggering tan alarm.
Table 2-21: Monitor - Sub Settings
Monitor
Sub-Setting
Description
Alarm Status
Off - Disabled
Low - Sensor state goes low to trigger alarm. Contact the sensor or machine
supplier for this information.
High - Sensor state goes high to trigger alarm. Contact the sensor or machine
supplier for this information.
Alarm Delay
Defines the duration the alarm condition must exist before triggering tan alarm.
Table 2-22: Monitor - Sub Settings
