4-12 Chapter 4 - Real-time Operation
Product Application
Fieldware for the Legacy 6000
Software Version 2.11
Error Message
An error message stops real-time operation until the problem is resolved. The alarm sounds, a dia-
log is presented to the user (Figure 4-13), and the user must respond to the dialog. The response
to the dialog is typically an acknowledgement of the error. The error message in Figure 4-13 is a
result of a sensor on PCM #1 being disconnected. The operator is asked to acknowledge this error
by pressing the enter key. If the error is resolved prior to the acknowledgement, an error correct
dialog will replace the error message dialog, (Figure 4-14).

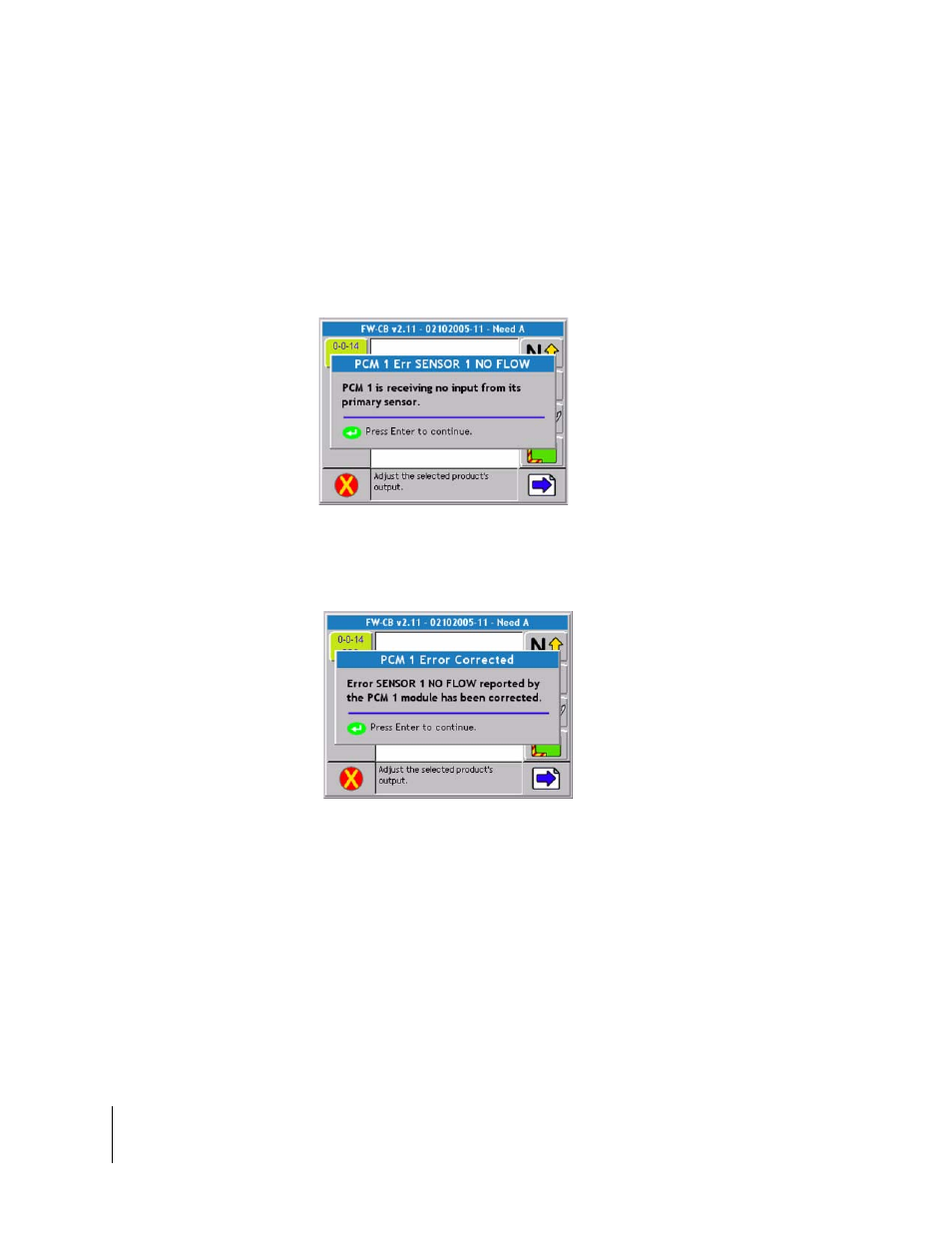

Figure 4-13: Sensor No Flow Error Message Dialog
Figure 4-14: Error Corrected Message
