Fieldware for the Legacy 6000
Software Version 2.11
Chapter 2 - Getting Started 2-9
Lightbar Setup
Lightbar Setup
Lightbar setup defines how the Legacy 6000 console configures the lightbar. Lightbar setup
parameters are listed in Table 2-3.

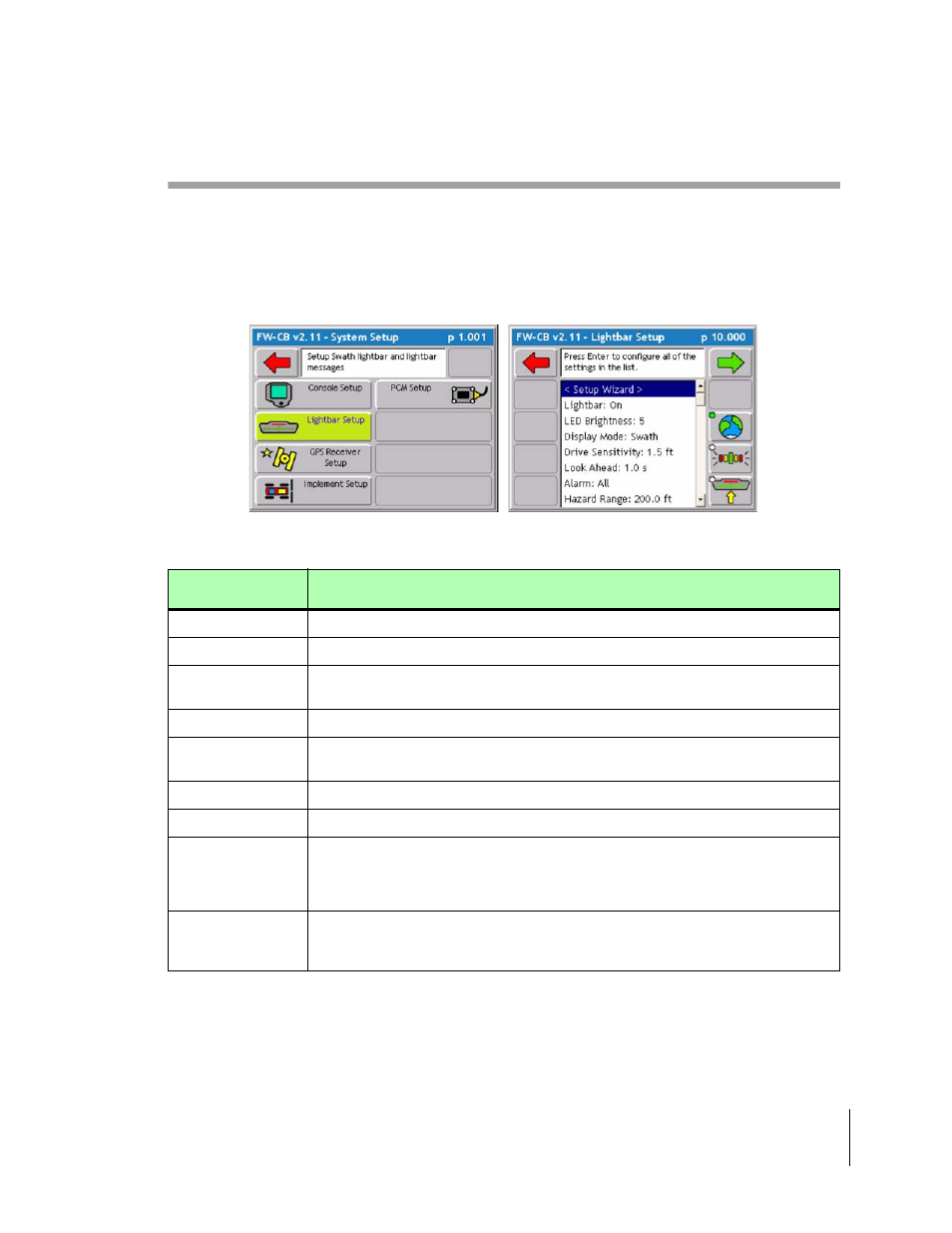

Figure 2-11: The Lightbar Setup Menu Page
Setting Description
Lightbar Defines which lightbar features are used. Settings are Text/Lights, Text Only, or Off.
LED Brightness Sets the brightness level of the lightbar LEDs and text window.
Display Mode Defines how the user interprets the row of LEDs on the lightbar. The center stack of Green
LEDs can represent the current guideline (Swath Mode) or the vehicle (Vehicle Mode).
Drive sensitivity Sets the distance that a single LED in the row of LEDs represents (Typically 1.5 feet).
Look Ahead The number of seconds ahead of the vehicle that the cross track error is calculated at (Typi-
cally 2.0 seconds).
Alarm Defines the situation in which the alarm sounds. Settings are Off, Alarm, Hazards, and All.
Hazard Range Sets the distance prior to an impending feature (Hazard or Applied Area).
Parallel MSG 1
Parallel MSG 2
Parallel MSG 3 Defines which of several lightbar messages are displayed in the #1, #2, #3 MSG location.
Choices are X-Track, Swath #, Heading Error, Ground Speed, Area Applied, Off, Application
Rate, and X-Track/Swath#. Once a choice has been selected it will not appear as a option for
the next two messages.
Curved MSG Defines which of several lightbar messages are displayed in the #1 Curved MSG location.
Only the Curved MSG is used when in Headlands guidance mode. Choices are Area Applied,
Ground Speed, X-Track, Application Rate, and Off.
Table 2-3: The Lightbar Setup Settings
