TeeJet Legacy 6000 CAN Guide - Manual (Page 103)

Fieldware for the Legacy 6000
Software Version 2.11
Chapter 3 - Real-time Setup 3-33
ARM Setup
Auto Boom Shutoff (Section Center)
Fieldware for the Legacy 6000 can automatically control up to ten sections. Auto boom shutoff
works when the center of a section enters an applied area the controller will automatically turn that
section off. Auto Boom Shutoff requires the addition of a SFM (Switch Function Module) that will
tee directly into the CAN system (Figure 3-14).

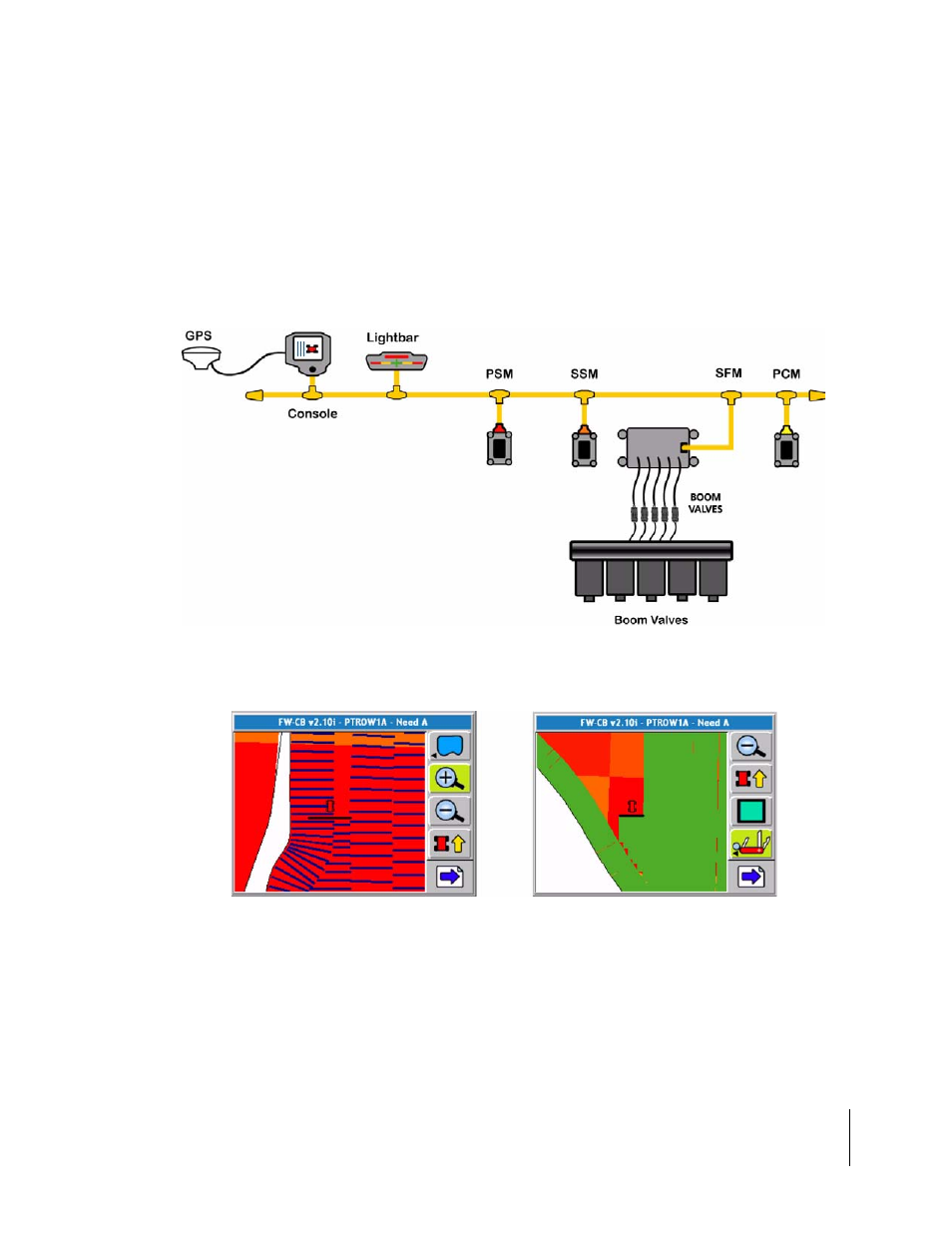

Figure 3-14: Switch Function Module and Auto Boom Example
Figure 3-15: Auto Boom Shutoff Example
