Fieldware for the Legacy 6000
Software Version 2.11
Chapter 6 - Running Mapper 6-9
Mapper Introduction
Creating Object Name
Creating New Object Name
From the object name page the operator can select from existing object names or create a new
name by selecting the Pencil and Paper button (Figure 6-7) left image. Enter the object name and
press the green forward arrow to advance back to the next page.
Creating a Folder for Object Names
From the Object Name page notice the folder button on the left side of the screen, this button
allows the operator to create a folder name to store all related object names in. For example, a
folder can be create called Field Tile and within that folder the Object Names created will only per-
tain to field tile such as 4in, 5in, riser, main etc. (Figure 6-8)

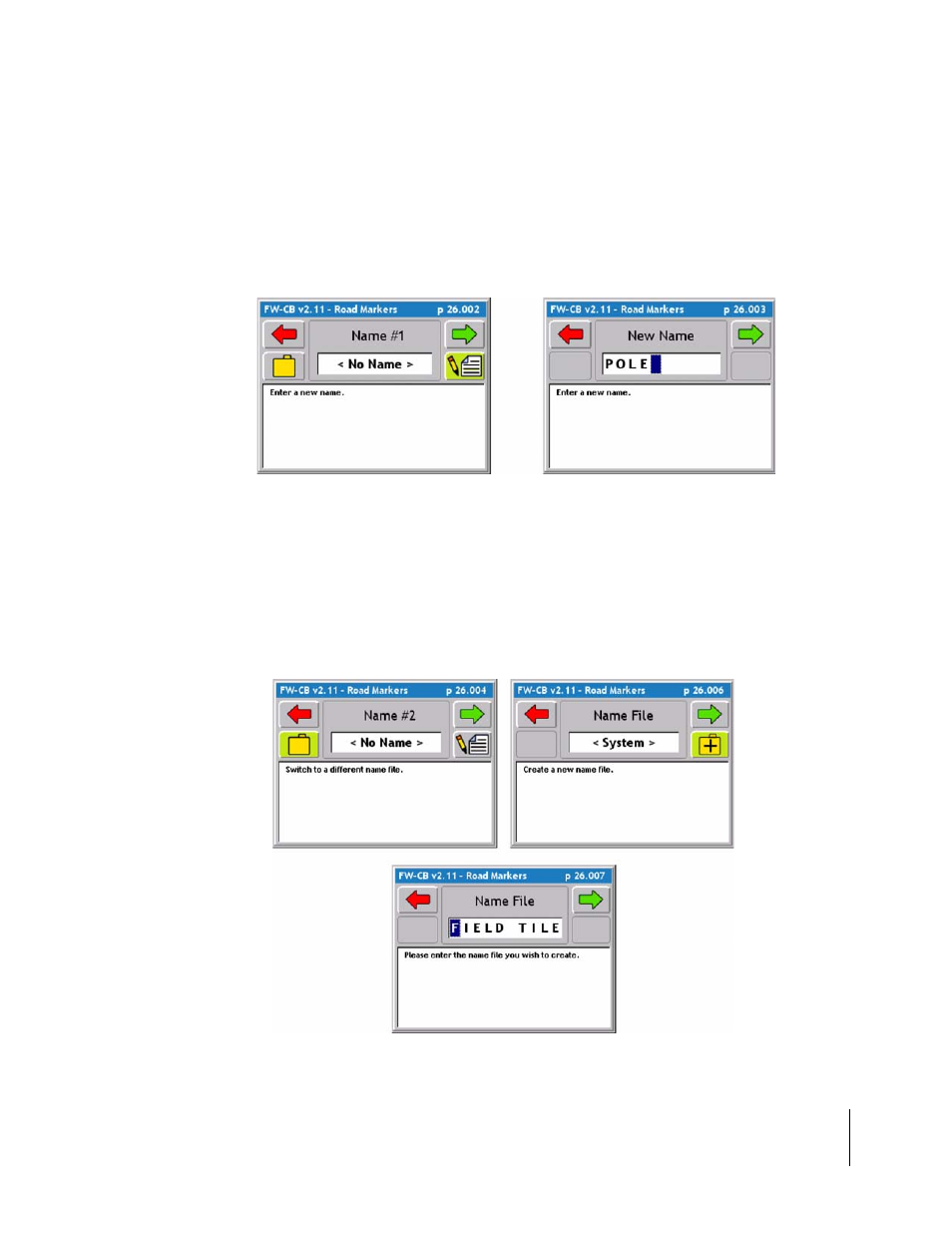

Figure 6-7: Creating a New Object Name
Figure 6-8: Create a Folder for Object Names
