Fieldware for the Legacy 6000
Software Version 2.11
Chapter 4 - Real-time Operation 4-7
Product Application
The Map Page
To access the Map page from the information pages select the Next Page (Blue arrow on the bot-
tom right of the screen). The Map pages allows the product application progress to be viewed.
This page displays the vehicle at its current location, as well as current implement status. The
application trajectory is also displayed. If doing variable rate application using a prescription map,
the prescription map is seen in the background. The Map page is associated with the product con-
trol soft-key on the left side of the screen that is currently highlighted.
All guidance related soft-keys are displayed in the right side column of the map page. See Table 4-
1 for a description of each soft-key that can be displayed in the Map page.
Solid Pattern and Boom Pattern
Area applied can be viewed as a solid painted area or as dropped bars representing the spray
boom. The Solid pattern can assist in locating skip areas of application while the Boom pattern can
show overlaps. To switch from one view to the next locate the Tools Button (swiss army knife) from
the buttons on the right side of the screen. Selecting the knife will display a separate menu that
allow the selection between Solid Pattern and Boom Pattern. Use the up and down arrows to
make to highlight the desired selection and press the green enter button to accept the selection.

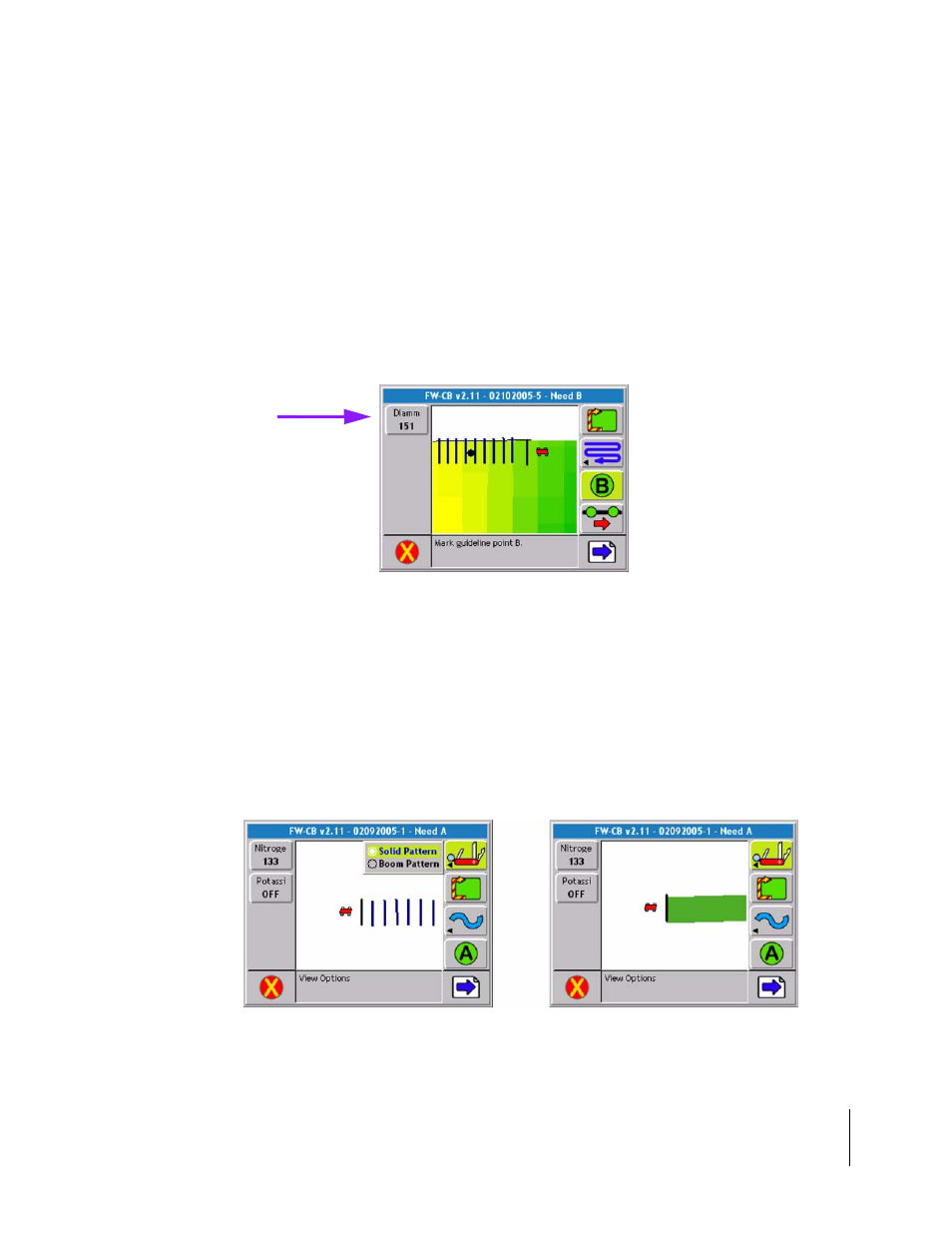

Figure 4-9: The Map Page
Figure 4-10: The Solid and Boom Pattern View
Product Control
Soft-key
