TeeJet Legacy 6000 CAN Guide - Manual (Page 170)

6-4 Chapter 6 - Running Mapper
Mapper Introduction
Fieldware for the Legacy 6000
Software Version 2.11
Manually Naming a Job
From the New Job Name page (Figure 6-3). Using the arrow keys enter the name of your job. It is
not necessary to use all numbers in the job name. It can contain alpha-numbers characters. When
the desired job name is entered, press the Forward Arrow to save the name and return to the Job
page.
Automatically Naming a Job
The second method to create a job is to press the Auto-name button in the Create Job page. This
will name the job based on the current date followed by the number that job is for the day. There-
fore the first job on January 31st 2005 would automatically be named 01312005-1. The second job
for the same day would be named 01312005-2.
When the Mapper Field soft-key is pressed, the Fieldware Mapper software loads the setting,
parameters and data files. This loading process may take a few seconds to complete. When the
loading process is complete, the Map page (Figure 6-10) is the first real-time page seen.

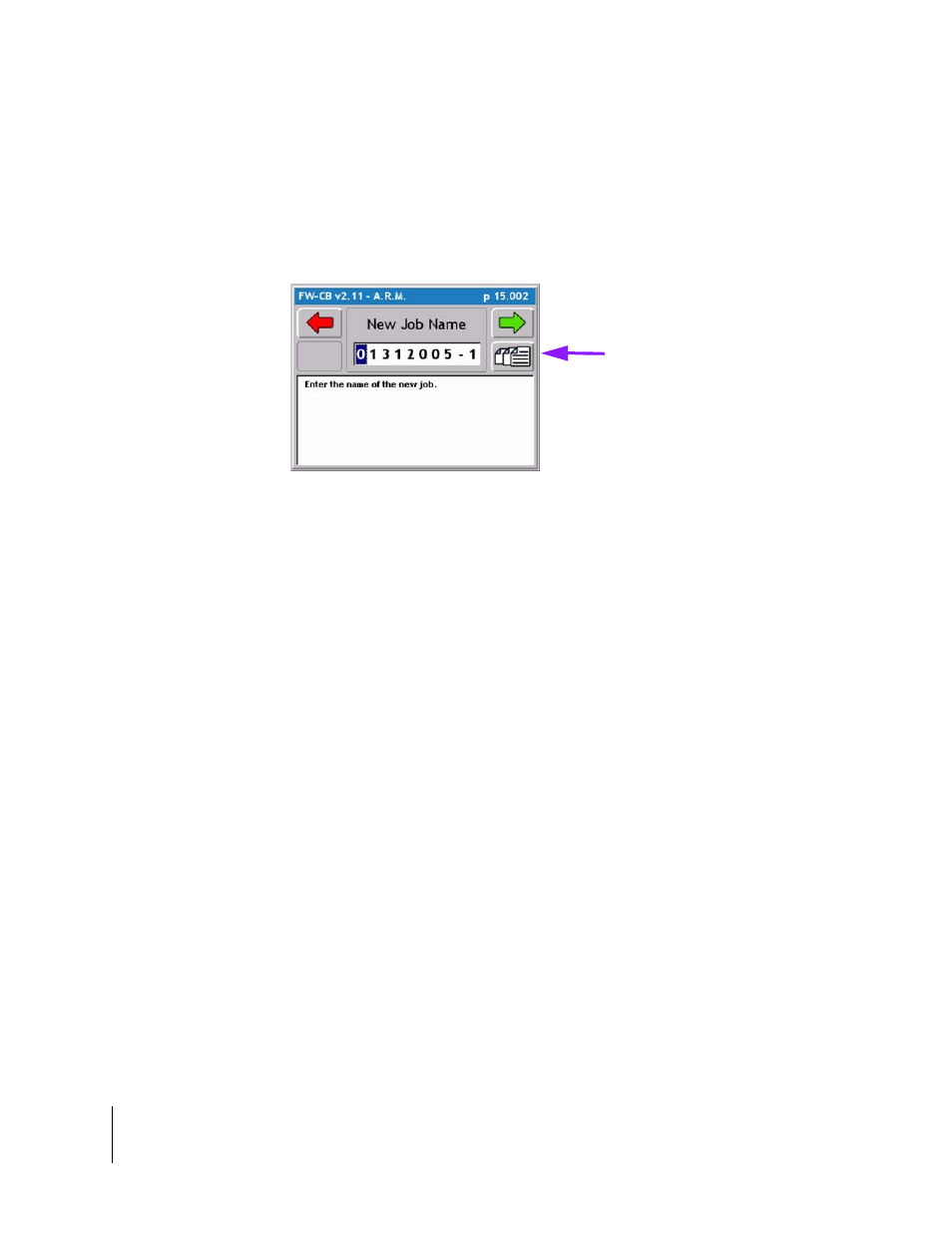

Figure 6-3: The Job Name Page
Auto-name button
