2-22 Chapter 2 - Getting Started
Product Control Module (PCM) Setup
Fieldware for the Legacy 6000
Software Version 2.11
Setting the Application Type
The Application Setup page (Figure 2-28) allows the selection of the required type of product appli-
cation. All other setup pages will be based on the type of application chosen on this page. There
are five possible applications: Liquid, Granular, Seeder, NH3, and Motor.
For each Application type there is an additional Settings page. To access the Settings page, press
the Settings button on the Application page (Figure 2-28). Typically it will not be necessary to
change any parameters found in the Settings page.
Select the Application type and press the Forward arrow to advance to the next PCM Setup page.
When changing the application type, the Finish Flag button may disappear. This button disappears
if the change in application type caused additional changes to other PCM setup parameters. It may
be necessary to continue viewing the remaining setup parameters prior to finishing the PCM setup
process. If no additional PCM parameter changes occurred, the Finish button is presented and a press of this
button brings up the last setup page. From the Finish page, update the PCM with the new setup file.
Application Type Options

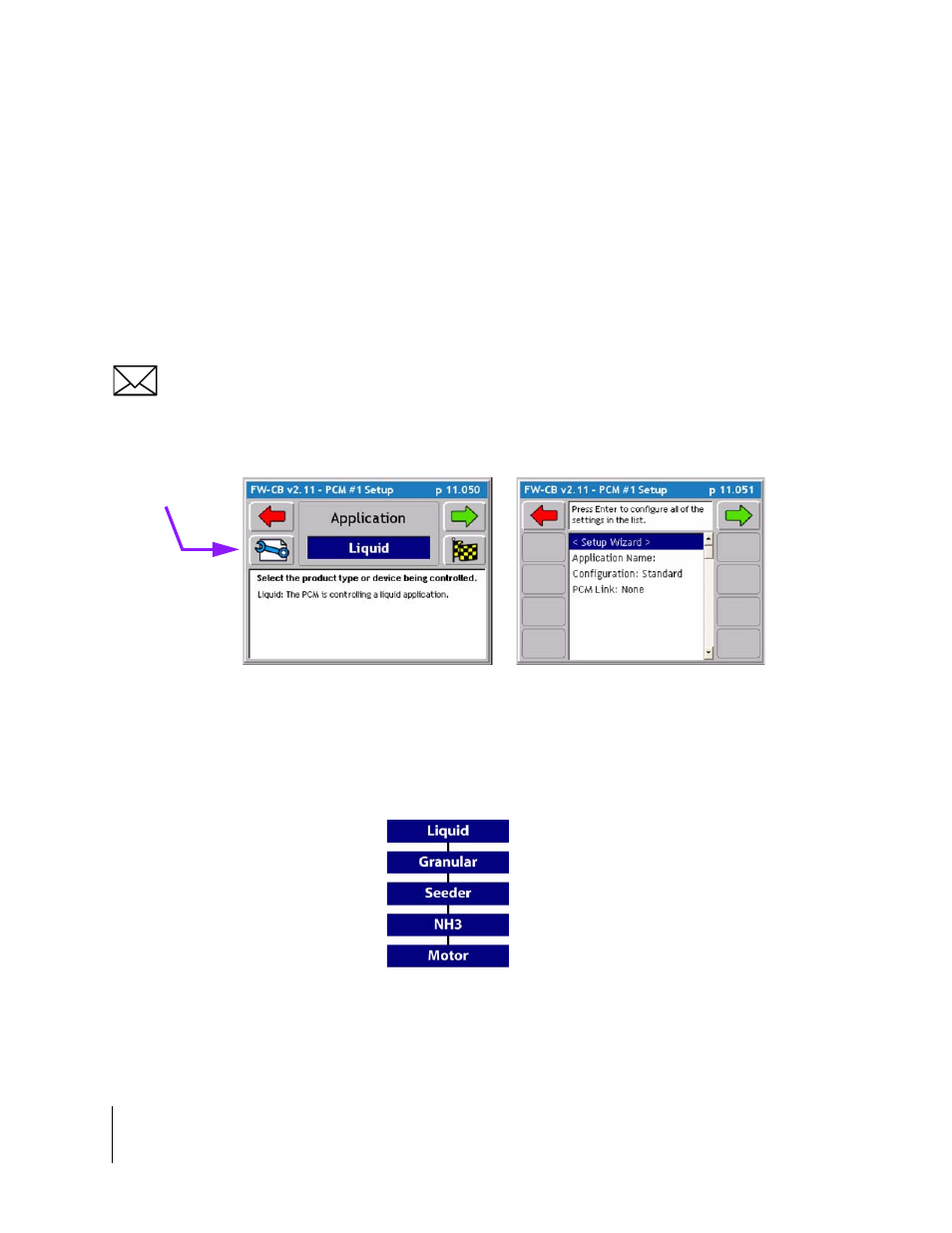

Figure 2-28: The Application Page
Settings Button
