3-18 Chapter 3 - Real-time Setup
Performing a Calibration
Fieldware for the Legacy 6000
Software Version 2.11
Granular & Seeder In-Field Calibration Continued

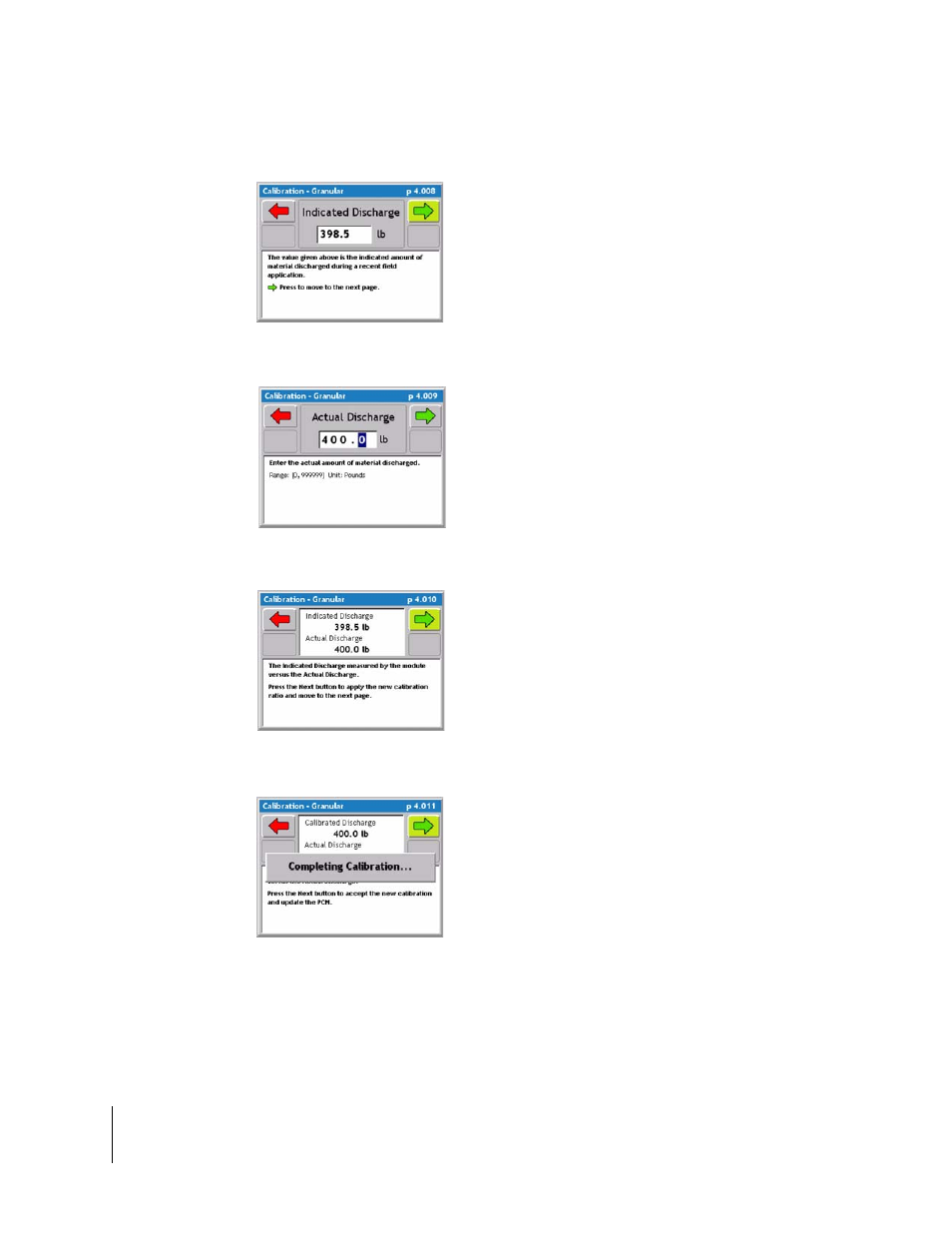

6. This is the indicated discharge. This value is
obtained from the accumulated volume during
the real-time application. This is why it is
important to have the volume zeroed before
application starts. Press the green forward
arrow to continue to the next calibration step
7. Enter the Actual amount discharged. This is
the known amount put in the tank before appli-
cation or know amount discharged by using
the sight gage on the tank after application if
the tank is not empty. Press the green forward
arrow to continue to the next calibration step.
8. Indicated Discharge Vs. Actual Discharge.
This page is only a information page to show
the operator the Indicated Vs. the Actual.
Press the green forward arrow to automatically
recalculate the calibration number so the two
volumes match.
9. When the two volumes match press the
green forward arrow and the Liquid Flow Cali-
bration procedure is complete.
