Real-time Guidance Operation
Fieldware for the Legacy 6000
Software Version 2.11
Figure 4-21 shows the operator applying product in the Parallel pattern. Because the initial A B line
was established during the curved guidance process, the user can immediately start straight-line
guidance by pressing the guidance mode button
.
Figure 4-22 shows the completed field. Notice that there are several areas of the field where the
operator turned the spray off to avoid double application on previously applied areas.

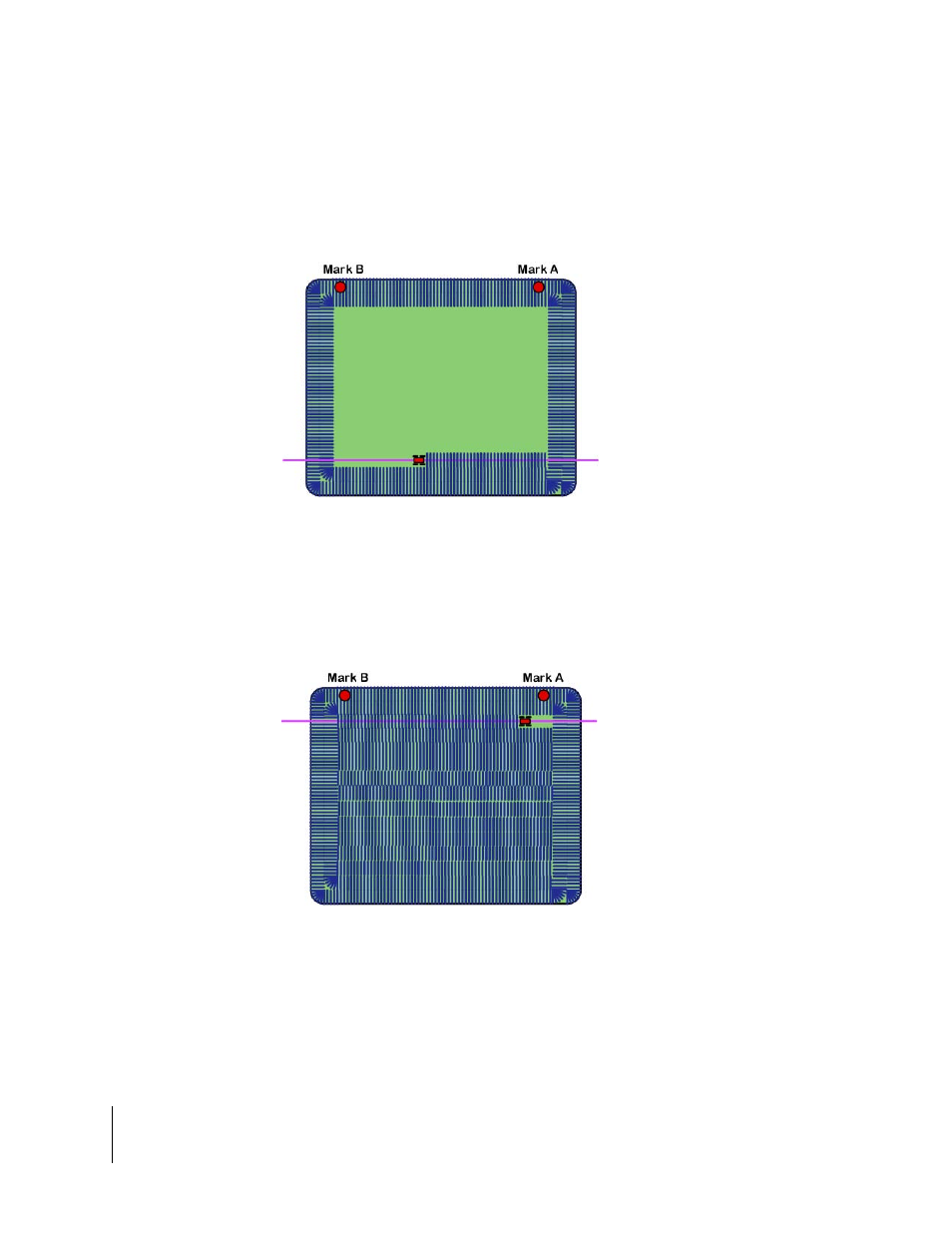

Figure 4-21: Switched from Headland Pattern to Straight-Line Pattern.
Figure 4-22: Completed Field Application
