Fieldware for the Legacy 6000
Software Version 2.11
Chapter 6 - Running Mapper 6-3
Mapper Introduction
Starting a Job
Pressing the Mapper button in the Fieldware Main Launcher brings up the Job page (Figure 6-2).
When a Job is created a folder is created on the PC card labeled with same name. All files related
to this job (Map File, Background File, and Base map File) will be stored in this folder.
There are three methods for entering/selecting a job name.
Creating a New Job
To create a new job, press the Create Job button in the Job page (Figure 6-2). This brings up the
Create a Job page. There are two methods of creating a job: manually and automatically (Figure
6-3).
Selecting an Existing Job
From the Job page (Figure 6-2), select an existing Job by using the up and down arrow keys. An
existing Job has an associated file folder located on the PC card. The name of the job folder is the
same as the job name.
Creating a Job Based on an Existing Job
A new job can be created based on the settings of an existing job. This helpful when starting a new
job and no settings need to be changed. This allows the operator to create a new job and GO! To
do this, select the desired job to base the new job from. Press the (Create a job based on last job
settings) button see (Figure 6-2). Create a new job name or auto name the job and then press the
green forward arrow. All settings from previous job can now be viewed in from the Mapper
launcher page or press the Mapper Field button to start mapping based on last job settings.

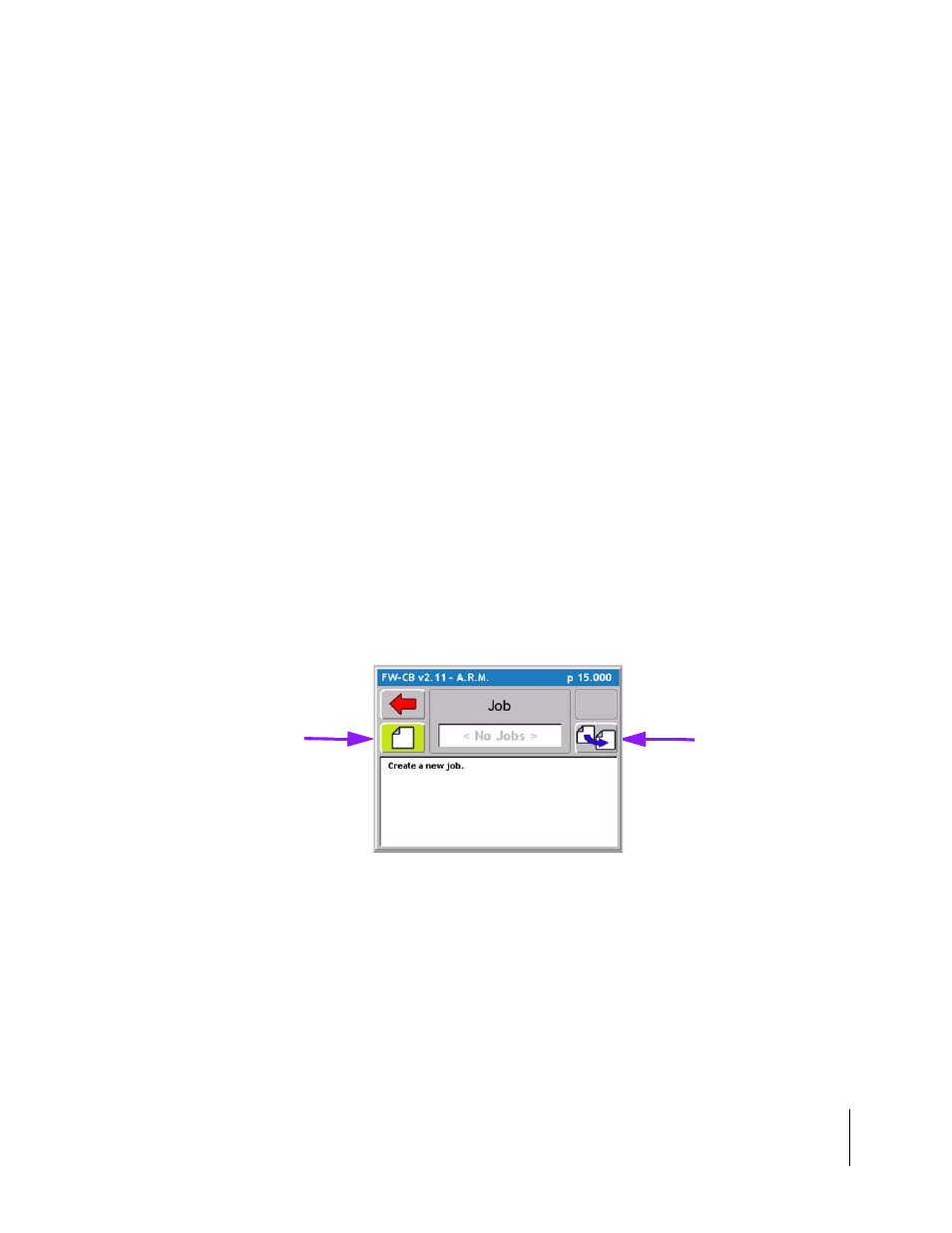

Figure 6-2: The Job Page
Create a new Job
Create a Job based
on anotherJob.
