The circle pivot pattern, Figure 4-28: operating in circle pivot pattern, The circle pivot pattern -23 – TeeJet Legacy 6000 CAN Guide User Manual
Page 137

Fieldware for the Legacy 6000
Software Version 2.11
Chapter 4 - Real-time Operation
4-23
Real-time Guidance Operation
The Circle Pivot Pattern
This section describes how to operate the Circle Pivot pattern. The Circle Pivot pattern is used
when the operator wants to apply product in a center pivot field while being guided along a circular
guideline that matches the center pivot radius.
The Circle Pivot pattern operates very similar to the Parallel pattern. The operator marks an A
point, drives along the arc that the pivot would create, a wheel track is a good guide, then marks a
B point. When the B point is marked, a circular guideline appears in the Map page and the opera-
tor is guided along this circular guideline. As the operator completes one circular pass and moves
in either direction (left or right) to the next guideline, the software automatically creates the next cir-
cular guideline.

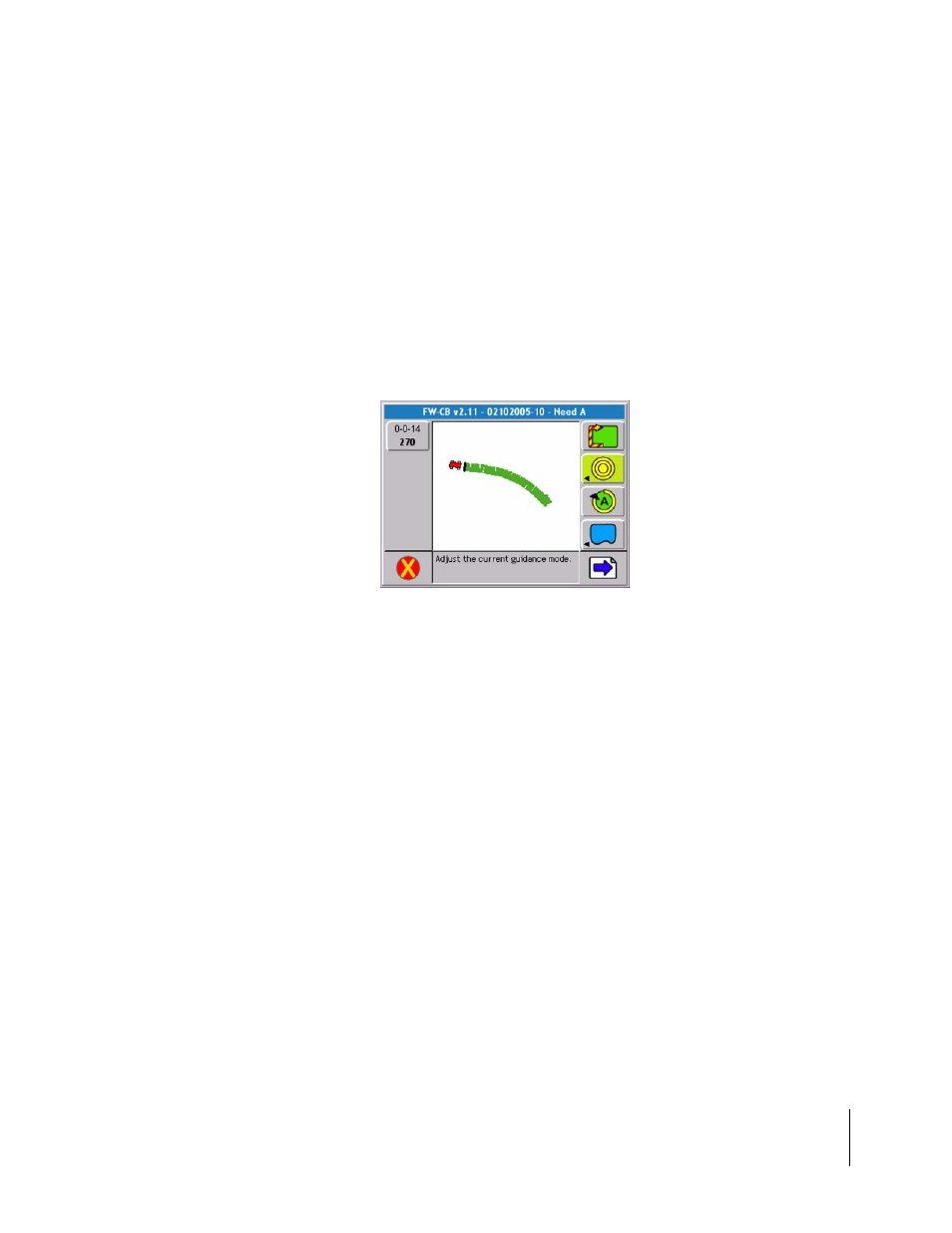

Figure 4-28: Operating in Circle Pivot Pattern
