Fieldware for the Legacy 6000
Software Version 2.11
Chapter 2 - Getting Started 2-15
Implement Setup
Entering the Offset Direction Y
The Y direction offset is the direction, (along the center line of the vehicle) from the GPS antenna
to the center of a swath (Figure 2-20).
The Offset Distance Y
When the Y Offset Direction has been entered, enter the Y Offset Distance. This is the distance
from the GPS antenna along the vehicle center line to the swath.

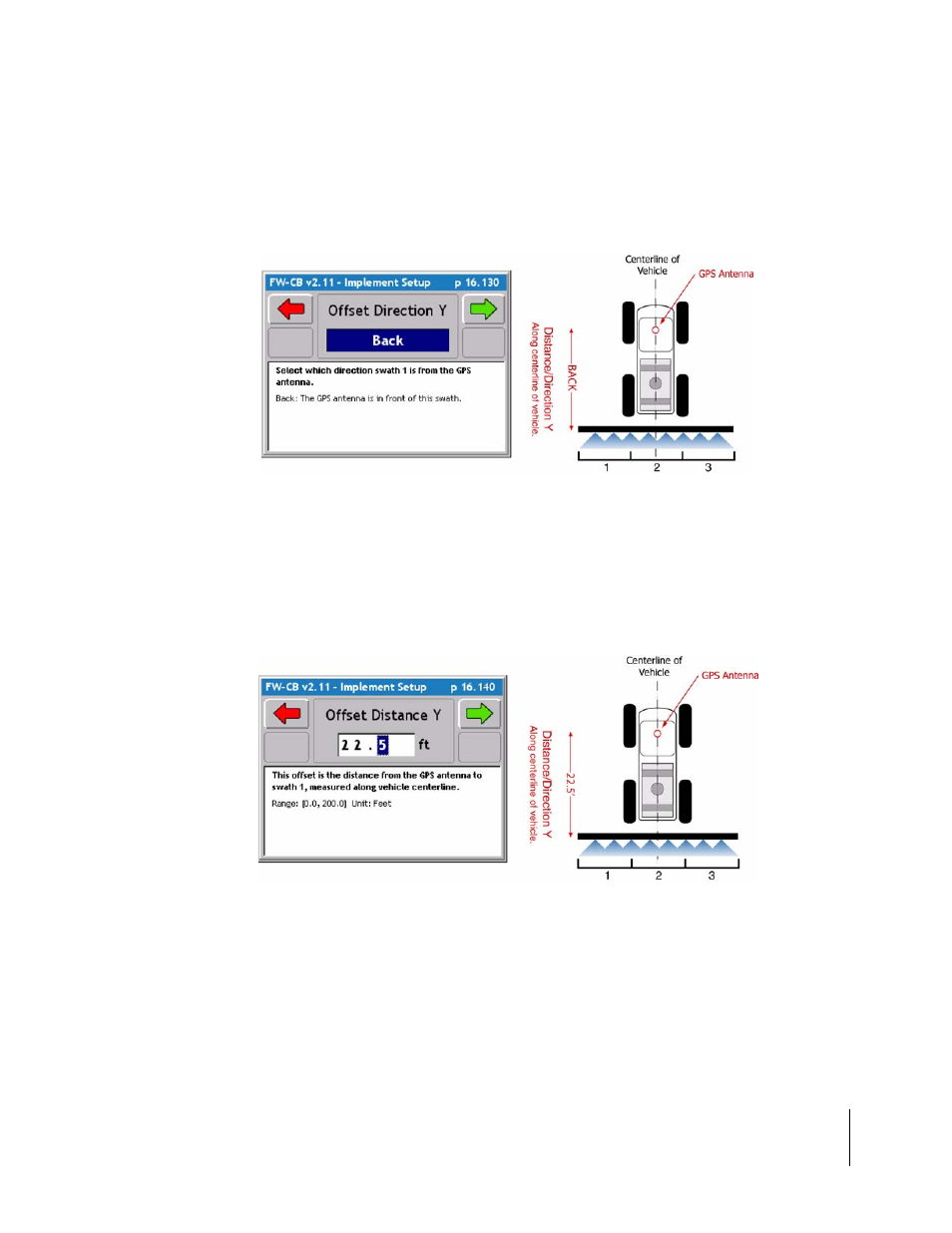

Figure 2-20: The Offset Direction Y Page
Figure 2-21: The Offset Distance Y Page
