1-8

Chapter 1 - System Introduction
Mid-Tech CAN Bus System Overview

Fieldware for The Legacy 6000

Software Version 2.11

Switch Function Module

The Switch Function Module (SFM) enables automated system control of boom sections.

Outputs

Booms outputs: (10) 3amp +12switched

Output Connector: A - Ground, B - N/C, C - +12 Open, D - +12 Constant

Input

Battery Power: 30amp

Communication

Mid-Tech CAN: ISO 11898 (Bosch 2.0B), 29 bit ID, 250K baud, Mid-Tech proprietary messages

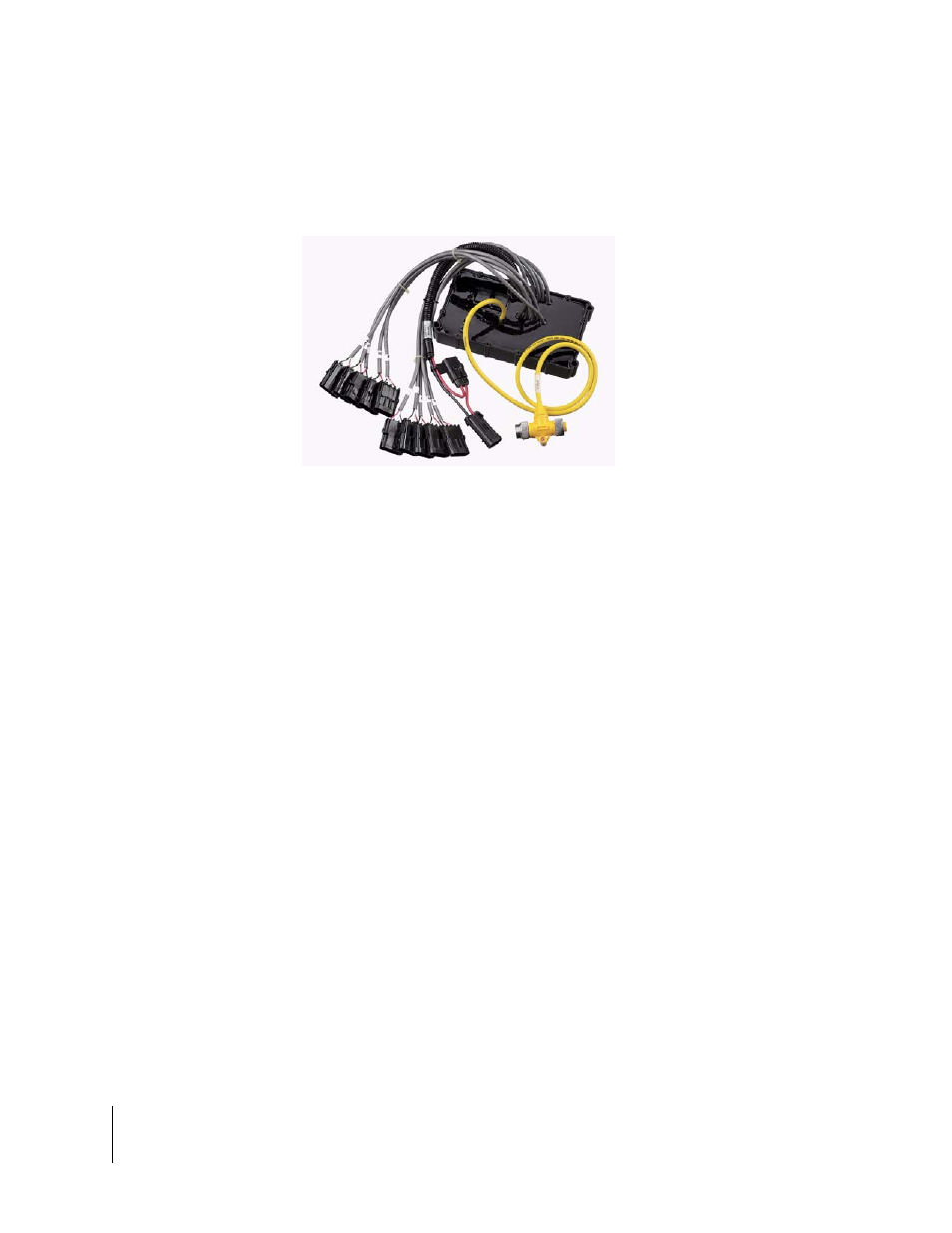

Figure 1-3: Switch Function Module (SFM)
