Fieldware for the Legacy 6000
Software Version 2.11
Chapter 4 - Real-time Operation 4-31
Mapping a Field Boundary

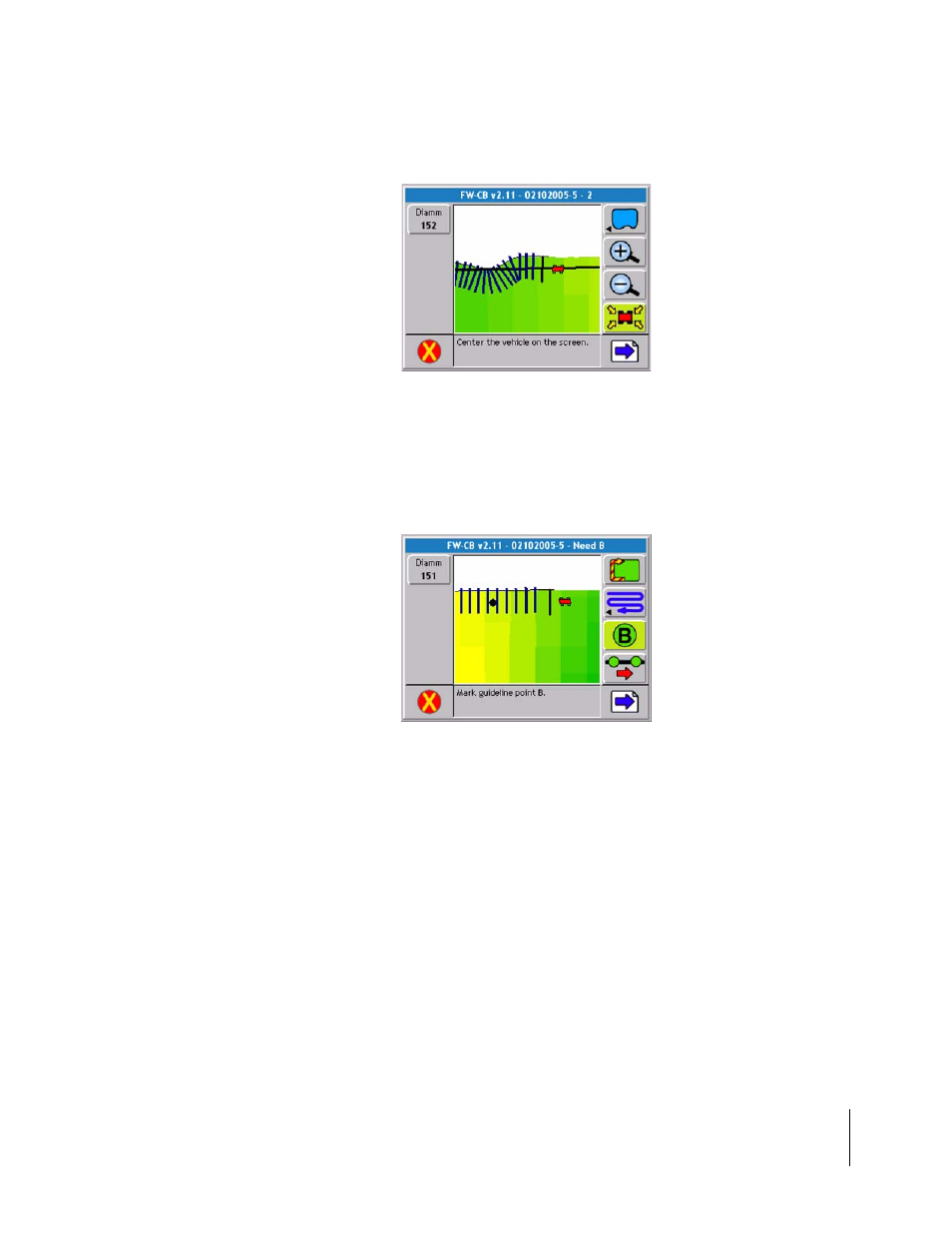

Figure 4-41 shows the vehicle about to complete driving the field perimeter. The initial guideline
has been established and a product application map is being created while mapping the field
boundary. When the vehicle approaches the starting point, within approximately 30 ft. (10 m), the
boundary automatically closes.
Figure 4-40: Marking Initial Guideline
Figure 4-41: Mapping Boundary while Applying Product
