Chapter 2 - Getting Started 2-13
Implement Setup
Number of Swaths Page
Currently the maximum number of swaths that "Fieldware for the Legacy 6000" can handle is four.
The Majority of applications will have One swath. For more on multiple swath applications and
examples see
Entering the Number of Sections in a Swath
The Sections page is where the number of sections in a swath are entered. The maximum number
of sections is 20 (not 20 sections per swath, 20 sections for the entire system).
Swath sections are ordered left to right with respect to a forward facing vehicle. The left most section
is assigned number 1 and section numbers increase moving to the right (Figure 2-17).

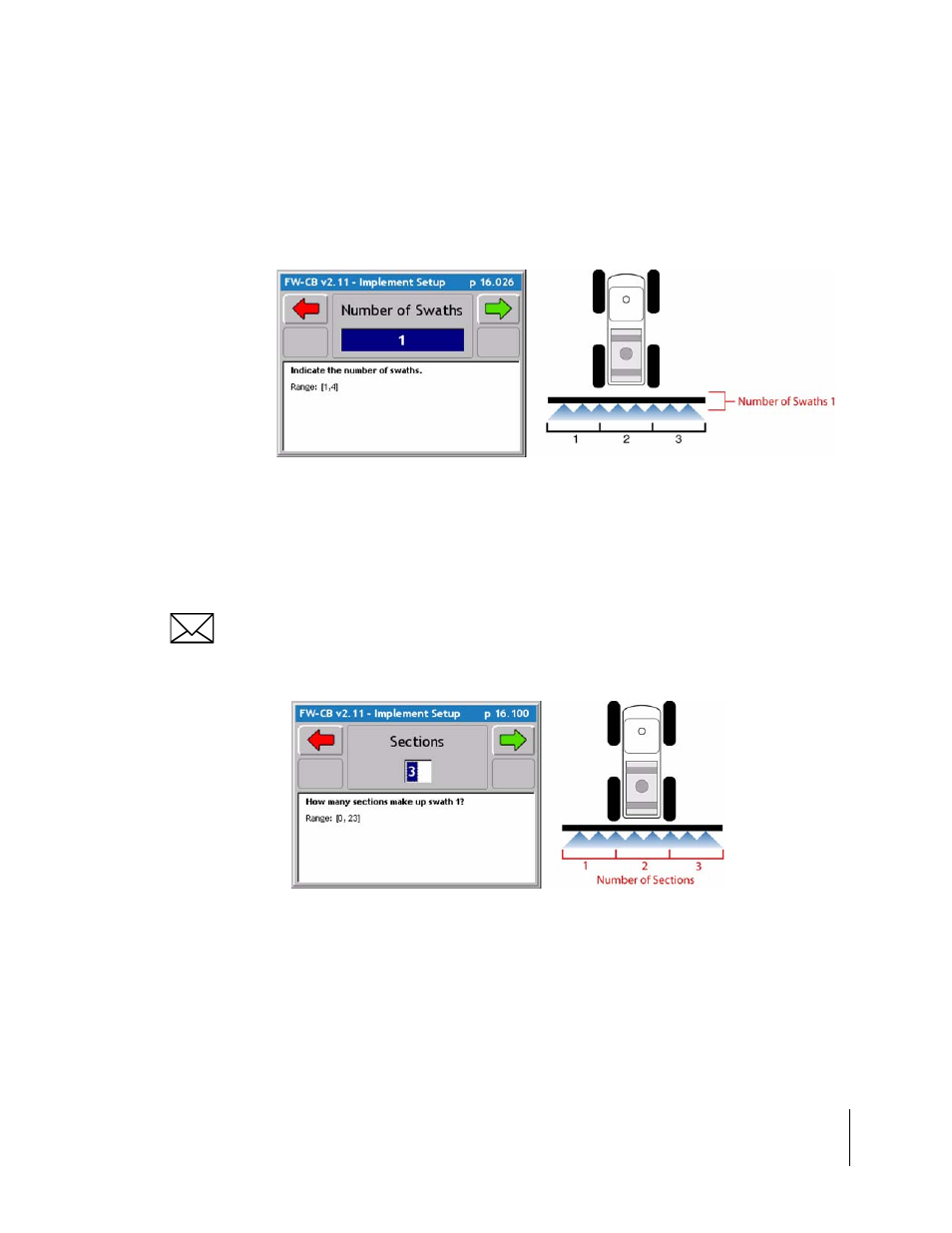

Figure 2-16: The Number of Swaths Page
Figure 2-17: The Number of Sections in Swath 1 Page
