2-28 Chapter 2 - Getting Started
Product Control Module (PCM) Setup
Fieldware for the Legacy 6000
Software Version 2.11
Selecting the Primary Sensor
The Primary Sensor is the type of sensor used for the primary control function. The Primary Sen-
sor types available in this pick list are based on the Application type selected. Each Primary sen-
sor type has an associated Settings button (Figure 2-31) which goes to the Sensor Settings page
(Figure 2-32). The Sensor parameters depend on the type of Primary Sensor selected.
Each PCM has six input sensors labeled A through F. Sensor inputs A - D are digital and sensor
inputs E and F are analog. Your PCM CAN Bus cable harness comes with the sensor input lines
labeled A - F. You can set the input line for a sensor in the Sensor Settings page.

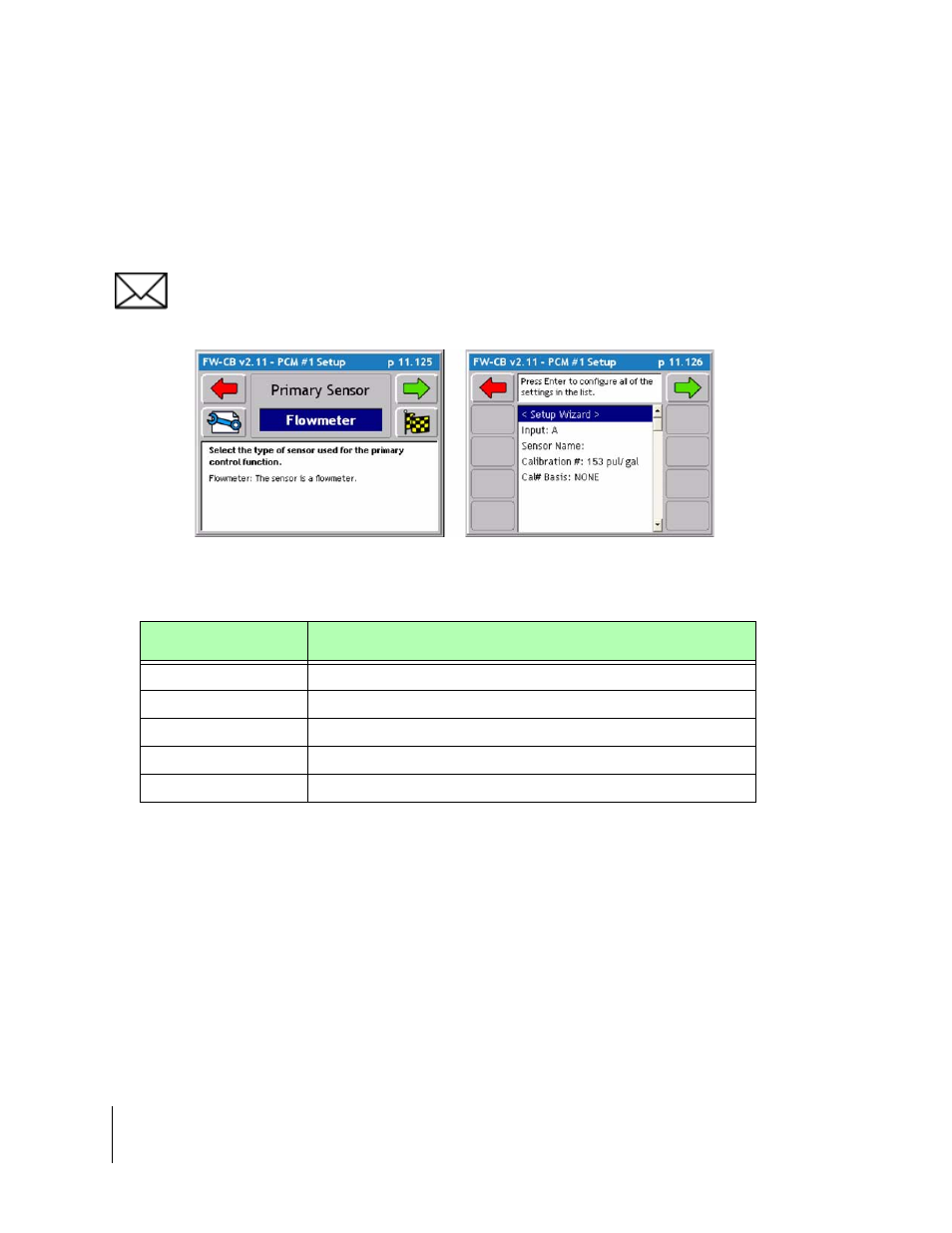

Figure 2-31: The Primary Sensor Page
Application Type Primary Sensor Options
Liquid Flowmeter, Pressure Digital, and Pressure Analog
Granular Granular
Seeder/Motor Shaft
NH3 Flowmeter
Injection Injection
Table 2-13: Primary Sensor Options
