Chapter 1 Installation and W
iring
32

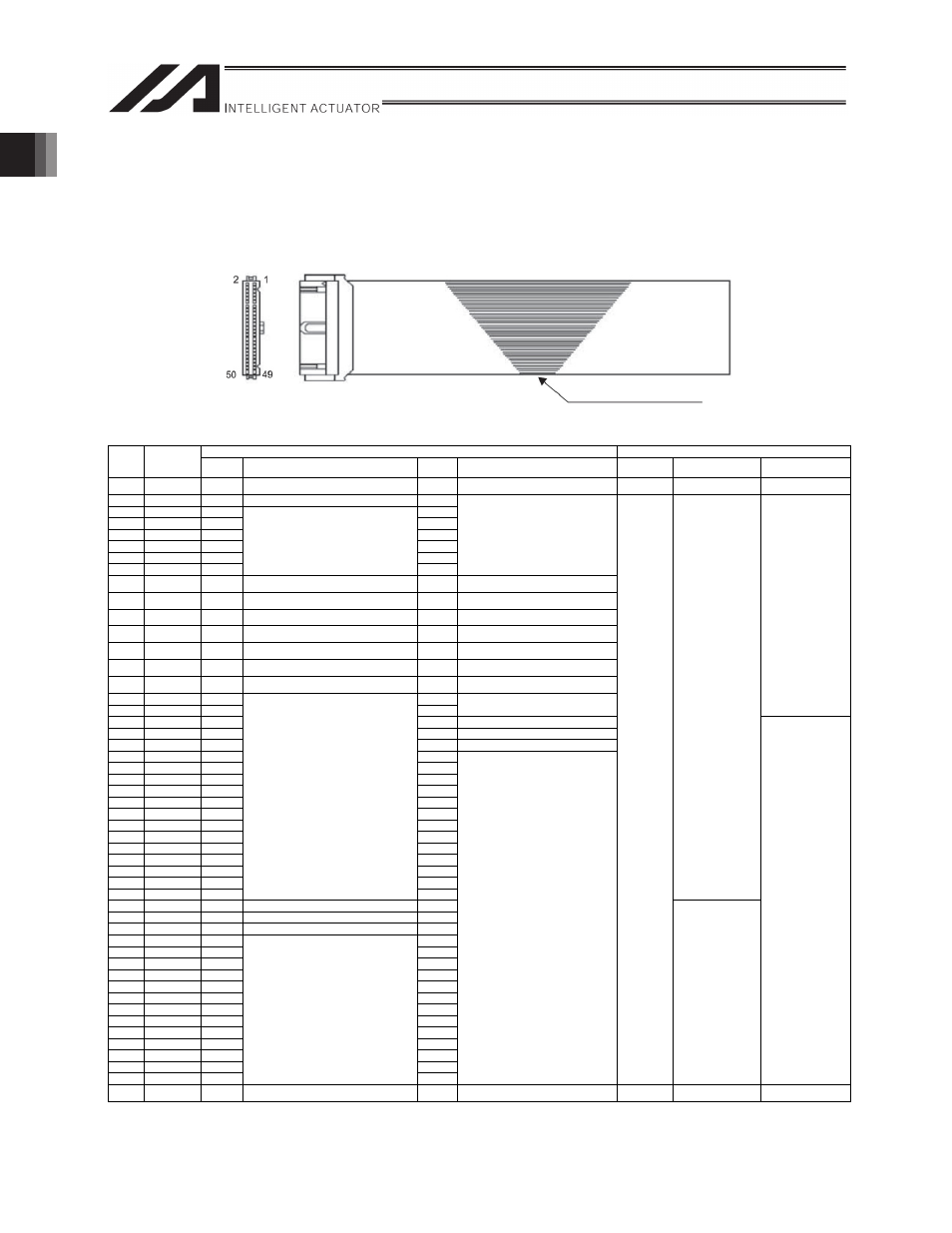

1.7.2 I/O Flat Cables (for X-SEL)
Type: CB-X-PIO†††
* Specify the cable length for the ††† part (e.g., specify CB-X-PIO020 for the cable length of 2 m).
Flat cable: KFX-50 (S) (color) (Kaneko Cord)
Socket (with strain relief): XG4M-5030-T (Omron)
Standard I/O Expansion I/O
Pin No. Line color Port No.
(*)
Function
I/O symbol N1/P1
Port No.
(*)
Function
I/O symbol N2/P2
Port No.
Function
I/O symbol N1/P1
Function
I/O symbol N2/P2
1 Brown 1 - External power supply of 24 V - External power supply of 24 V - External power supply
of 24 V
External power supply of
24 V
2 Red 1 000 Program start 000
3 Orange 1 001 001
4 Yellow 1 002 002
5 Green 1 003 003
6 Blue 1 004 004
7 Purple 1 005 005
8 Gray 1 006
General-purpose input
006
General-purpose input
9 White 1 007 Program specification (PRG No. 1) (general-
purpose input)
007 Program specification (PRG No. 1) (general-
purpose input)
10 Black 1 008 Program specification (PRG No. 2) (general-
purpose input)
008 Program specification (PRG No. 2) (general-
purpose input)
11 Brown 2 009 Program specification (PRG No. 4) (general-
purpose input)
009 Program specification (PRG No. 4) (general-
purpose input)
12 Red 2 010 Program specification (PRG No. 8) (general-
purpose input)
010 Program specification (PRG No. 8) (general-
purpose input)
13 Orange 2 011 Program specification (PRG No. 10) (general-
purpose input)
011 Program specification (PRG No. 10)
(general-purpose input)
14 Yellow 2 012 Program specification (PRG No. 20) (general-
purpose input)
012 Program specification (PRG No. 20)
(general-purpose input)
15 Green 2 013 Program specification (PRG No. 40) (general-
purpose input)
013 Program specification (PRG No. 40)
(general-purpose input)
16 Blue 2 014 014
17 Purple 2 015 015
General-purpose input
General-purpose
input
18 Gray 2 016 300 Alarm output
19 White 2 017 301 Ready output
20 Black 2 018 302 Emergency stop output
21 Brown 3 019 303
22 Red 3 020 304
23 Orange 3 021 305
24 Yellow 3 022 306
25 Green 3 023 307
26 Blue 3 024 308
27 Purple 3 024 309
28 Gray 3 025 310
29 White 3 026 311
30 Black 3 027 312
31 Brown 4 028 313
32 Red 4 029 314
33 Orange 4 030
General-purpose input
315
General-purpose
input
34 Yellow 4 300 Alarm output 316
35 Green 4 301 Ready output 317
36 Blue 4 302 Emergency stop output 318
37 Purple 4 303 319
38 Gray 4 304 320
39 White 4 305 321
40 Black 4 306 322
41 Brown 5 307 323
42 Red 5 308 324
43 Orange 5 309 325
44 Yellow 5 310 326
45 Green 5 311 327
46 Blue 5 312 328
47 Purple 5 313 329
48 Gray 5 314 330
49 White 5 315
General-purpose output
331
General-purpose output
Continued
from
standard
I/O
General-purpose
output
General-purpose
output
50 Black 5 - External power supply of 0 V - External power supply of 0 V External power supply
of 0 V
External power supply of
0 V
* The port numbers can be changed by parameter settings.
Cut off
Flat cable (50 core)
