Chapter 6 Operations of X-SEL
PC Software Extension Motion Control Functions
190
6.3 Position Data Edit (Extension Motion Control Board Axis) Window
On this window, it is possible to edit, transfer, save, and print position data for extension motion
control boards.
Explanation of Items on the Setting Extension Motion Control Board Axis Window
Select [Controller] o [Ex Motion Control Board (X)] o [Position (O)] (Figure 3.1).

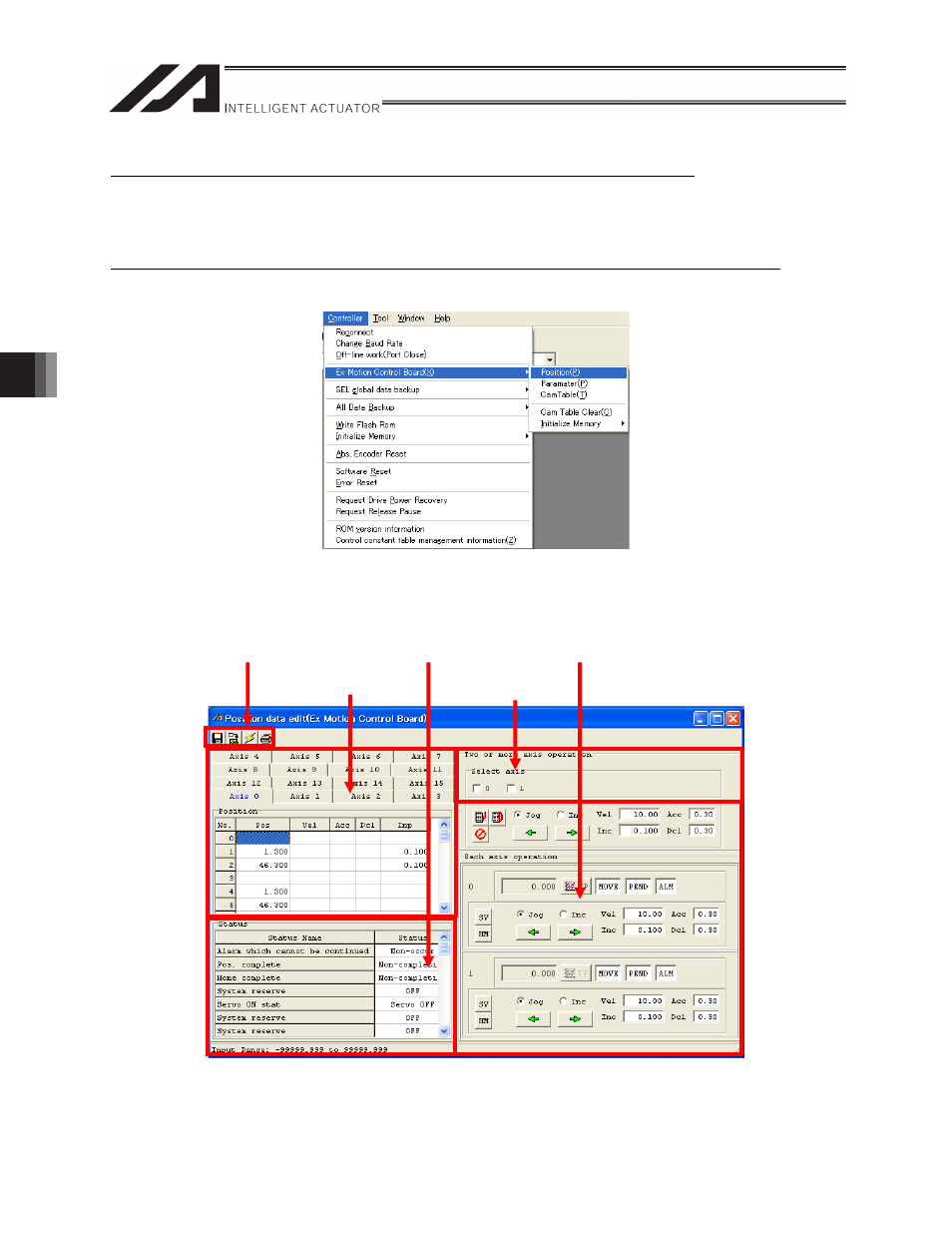

Figure 3.1. Menu (Position Data (Extension Motion Control Board Axis))
The Position data edit (Extension Motion Control Board) (Figure 3.2) appears. This window contains
the following items.
Figure 3.2. Position Data Edit (Extension Motion Control Board Axis)
[1] Toolbar [3] Status [5] Individual axis operation
[2] Position data
[4] Two or more
axis operation
