Chapter 6 Operations of X-SEL
PC Software Extension Motion Control Functions
179

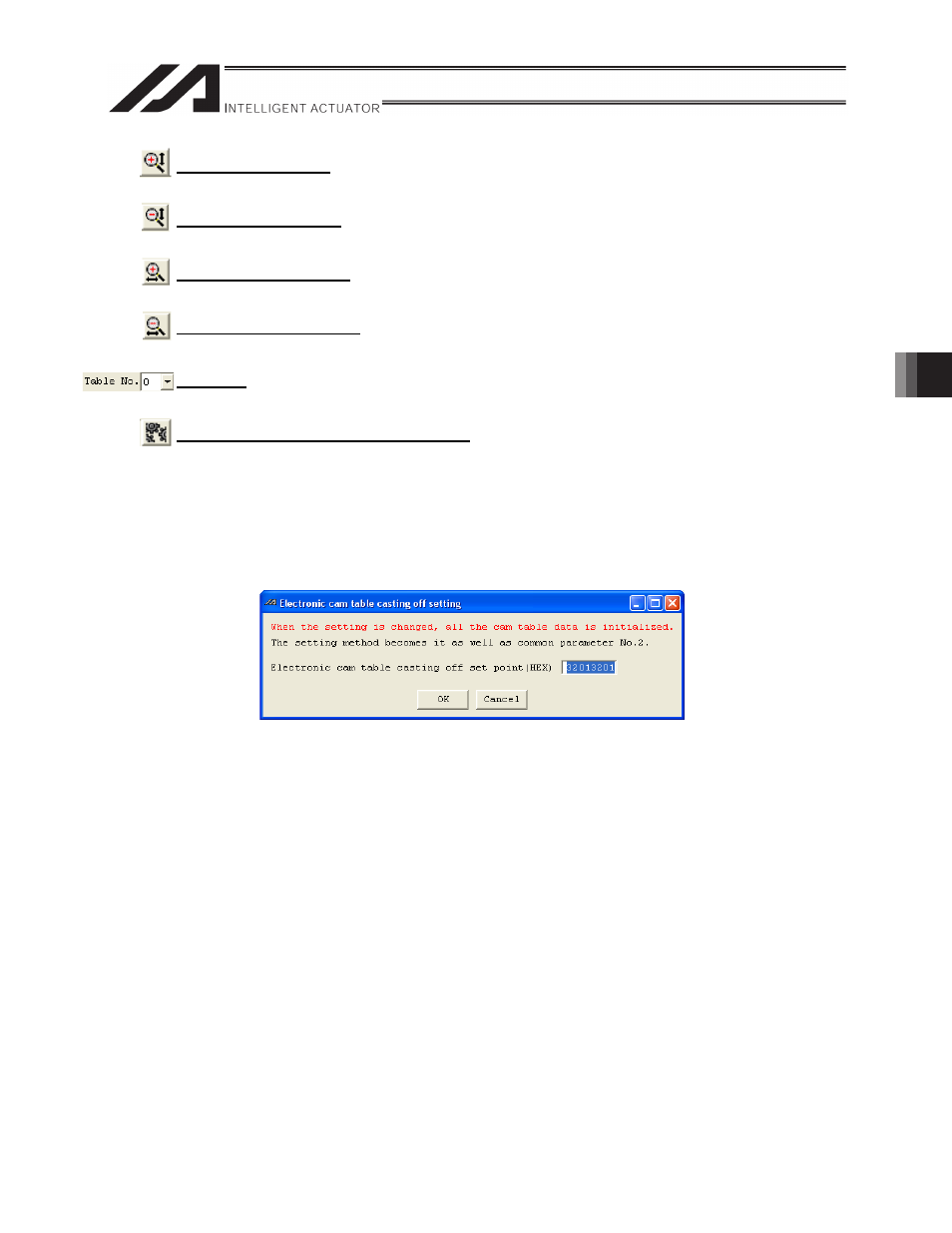

Zoom in vertical axis
When this button is clicked, the vertical axis of a CAM curve graph is zoomed in.
Zoom out vertical axis
When this button is clicked, the vertical axis of a CAM curve graph is zoomed out.
Zoom in horizontal axis
When this button is clicked, the horizontal axis of a CAM curve graph is zoomed in.
Zoom out horizontal axis
When this button is clicked, the horizontal axis of a CAM curve graph is zoomed out.
Table No.
CAM table No. to be displayed can be selected.
Electronic CAM table casting off setting (at offline only)
When this button is clicked, the Electronic CAM table casting off setting dialog box (Figure 2.12)
appears and you can change electronic CAM table assignment for offline data.
x In offline data mode, changes made to common parameter No. 2 (electronic CAM table
assignment) are not reflected to the number of CAM tables, number of partitions, etc.
x If you want to change the number of CAM tables, number of partitions, etc. in online data
mode, change common parameter No. 2 first, then transfer it to the controller, write to the
flash ROM and then reset the software.
Figure 2.12. Electronic CAM Table Casting Off Setting
