Chapter 1 Installation and W
iring
16
1.2.2 Teaching Tools and Operation Manuals
Please prepare the following teaching tools and operation manuals.
Operation manuals related to this product
No. Name Control No.
1 XSEL-P/Q controller operation manual ME0148
2 XSEL-R/S/RX/SX/RXD/SXD operation manual ME0313
3 PC Software: IA-101-X-MW/IA-101-X-USBMW operation manual ME0154
4 ACON-PL/PO controller operation manual ME0166
5 PCON-PL/PO controller operation manual ME0164
6 PCON-CA controller operation manual ME0289
7 SCON-C controller operation manual ME0161
8 ACON-CA controller operation manual ME0253
9 CON-T/TG operation manual ME0178
10 CON-PT/PD/PG operation manual ME0227
11 RCM-E operation manual ME0174
12 RCM-P operation manual ME0175
Teaching tools
(Note) Teaching pendant for X-SEL does not support this product.
Controller version

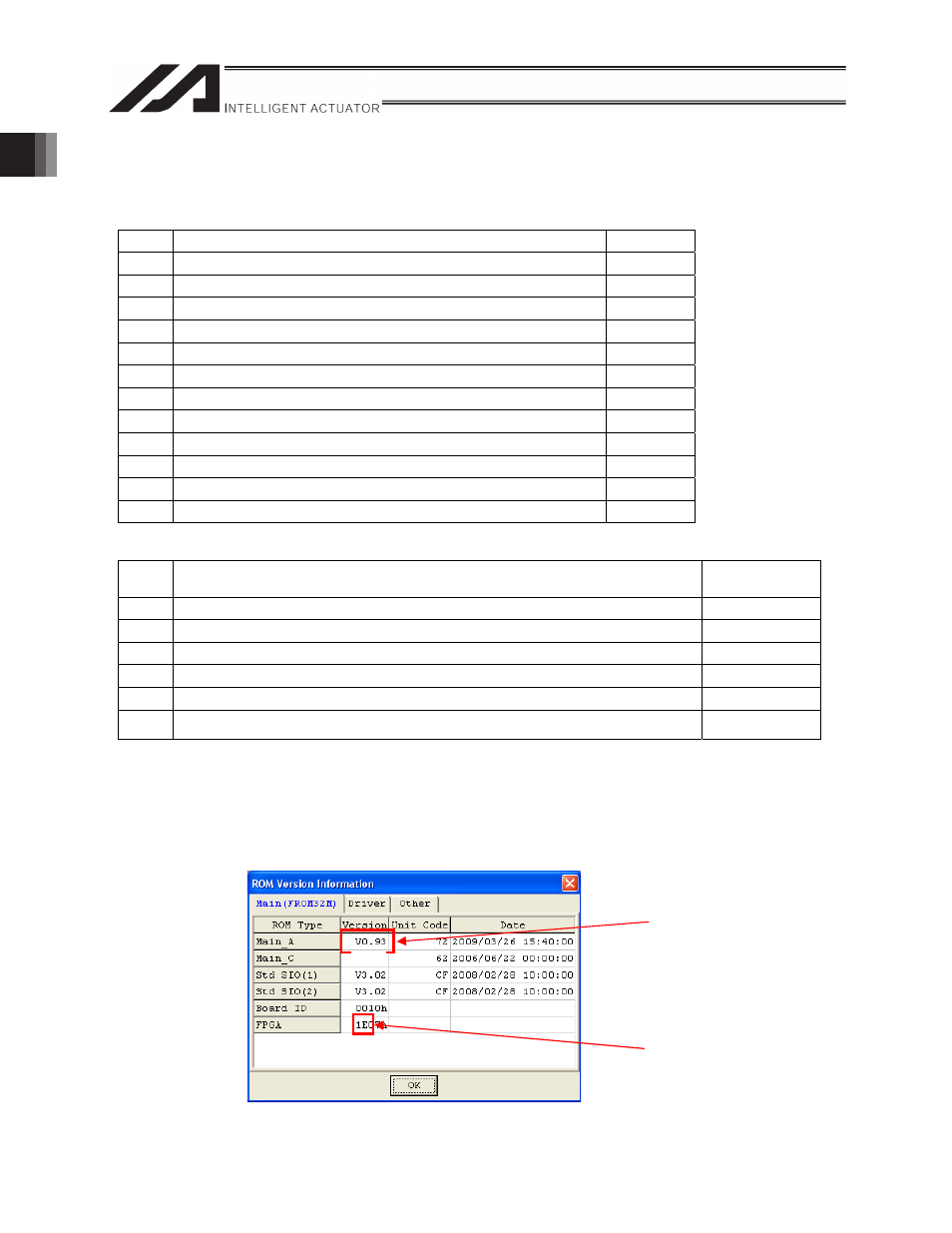

Controllers that can use this function must have the main application version of the XSEL-P/Q
controller V1.02 or later and the most upper 1 byte of FPGA of 1C or more, and extension motion
control boards implemented. This can be checked from the main window of the X-SEL PC Software
by clicking Controller and then ROM Version Information.
No. Product name/model number
Corresponding
version
1 PC Software for X-SEL: IA-101-X-MW/IA-101-X-USBMW/IA-101-XA-MW V.8.1.0.0~
2 PC Software for RC: RCM-101MW/RCM-101-USB V.6.0.0.0~
3 Teaching pendant for RC: RCM-E V2.00~
4 Teaching pendant for RC: RCM-P V2.00~
5 Teaching pendant for RC: CON-T/TG V1.00~
6 Teaching pendant for RC: CON-PT/PD/PG V1.00~
Version 1.02 or later
1C or later
V1.02
1C
