Chapter 6 Operations of X-SEL
PC Software Extension Motion Control Functions
177

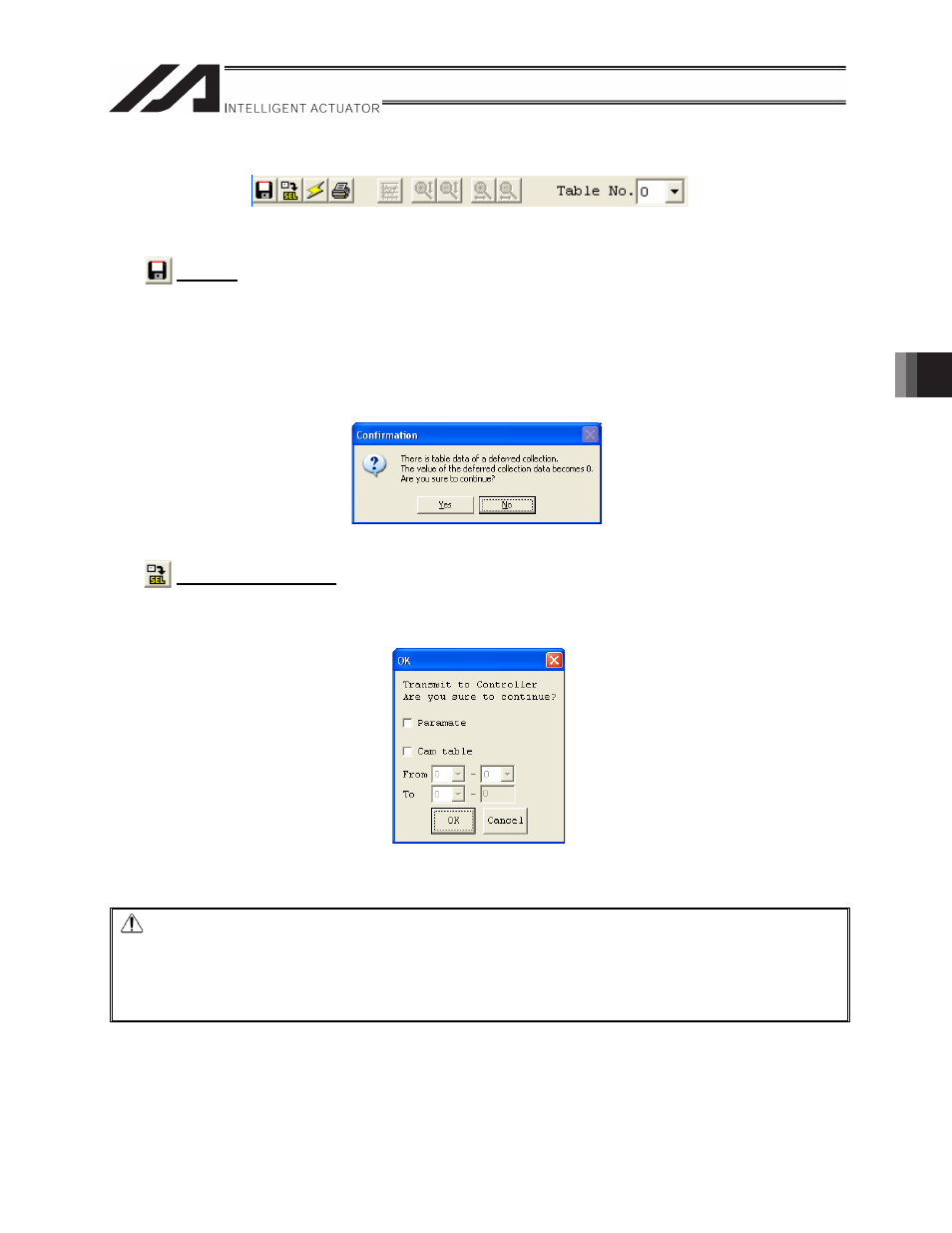

[1] Toolbar
Figure 2.6. Toolbar
Save As
When this button is clicked, you can name and save CAM tables (information control table,
section definition data, and displacement data) and parameters in files.
* If there are any uncollected table data, a warning (Figure 2.7) is generated.
If you click [Yes], all uncollected CAM table data is saved as 0.
If you click [No], saving processing is stopped.
It is necessary to collect (update) uncollected CAM table data by clicking the [Display Latest
Data] button and then name and save them in files again.
Figure 2.7. Warning on Uncollected Data
Transfer to Controller
When this button is clicked, the control transfer confirmation dialog box (Figure 2.8) appears and
you can transfer CAM tables (information control table, section definition data, and displacement
data) and parameters to the controller.
Figure 2.8. Controller Transfer Confirmation
Caution
Do not perform the following processing at the same as “Transfer to Controller.”
x Execution of SEL programs
x Specified position move in the Position data edit (Extension Motion Control Board) window
x Specified position continuous move in the Position data edit (Extension Motion Control Board) window
