Chapter 6 Operations of X-SEL
PC Software Extension Motion Control Functions
178

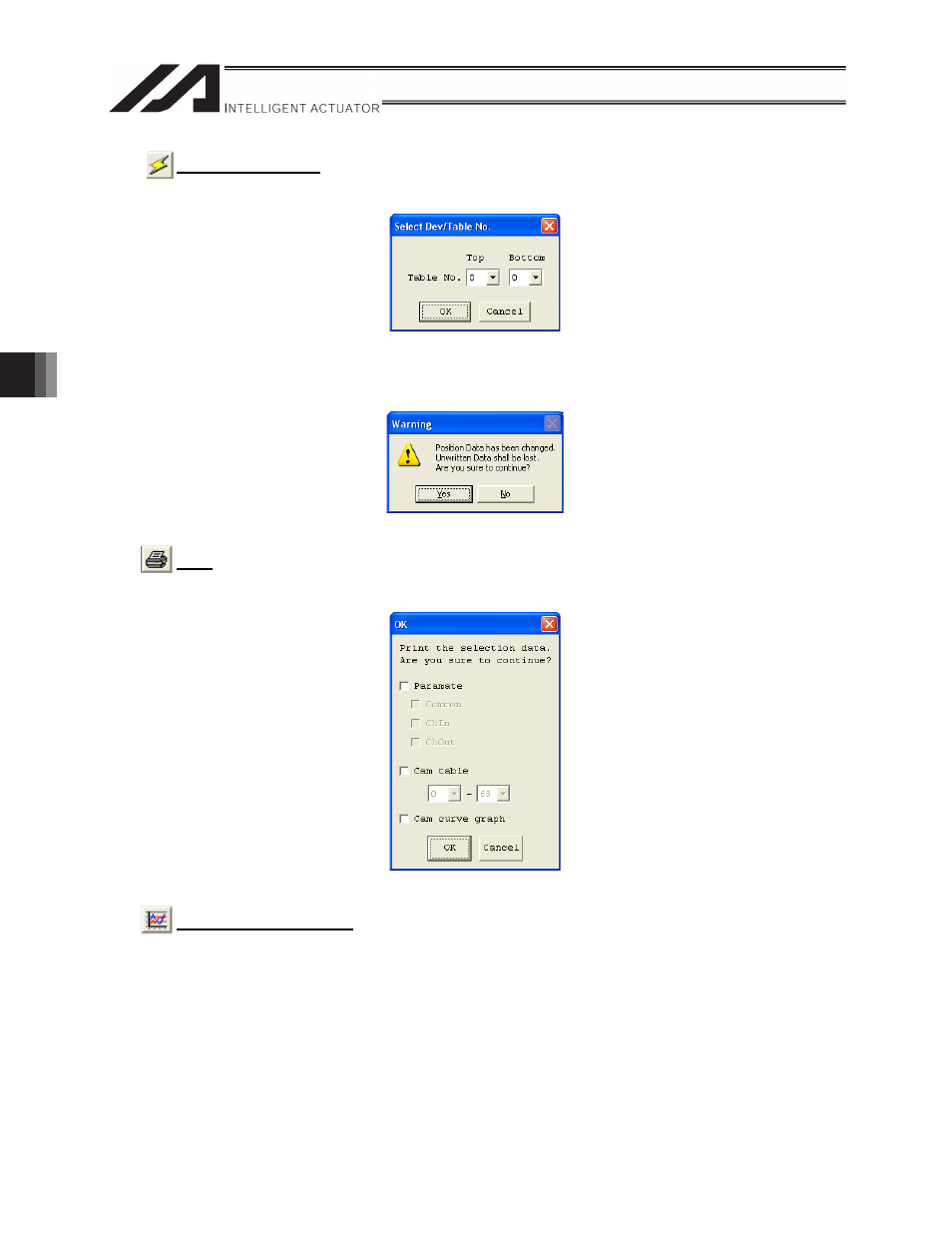

Display Latest Data
When this button is clicked, the Select Dev/Table No. dialog box (Figure 2.9) appears and you
can update the selected CAM table to the latest data.
Figure 2.9. Select Dev/Table No.
(when the Update button is clicked)
If there is any edited data, a warning dialog box (Figure 2.10) appears.
Figure 2.10. Warning
Print
When this button is clicked, the print confirmation dialog box (Figure 2.11) appears. Selected
parameters, CAM tables, and CAM curve graphs can be printed.
Figure 2.11. Print Confirmation
Draw CAM Curve Graph
When this button is clicked, a CAM curve graph is re-drawn based on the information control
table, section definition data, and displacement data.
