Chapter 6 Operations of X-SEL
PC Software Extension Motion Control Functions
180
[2] Information control table

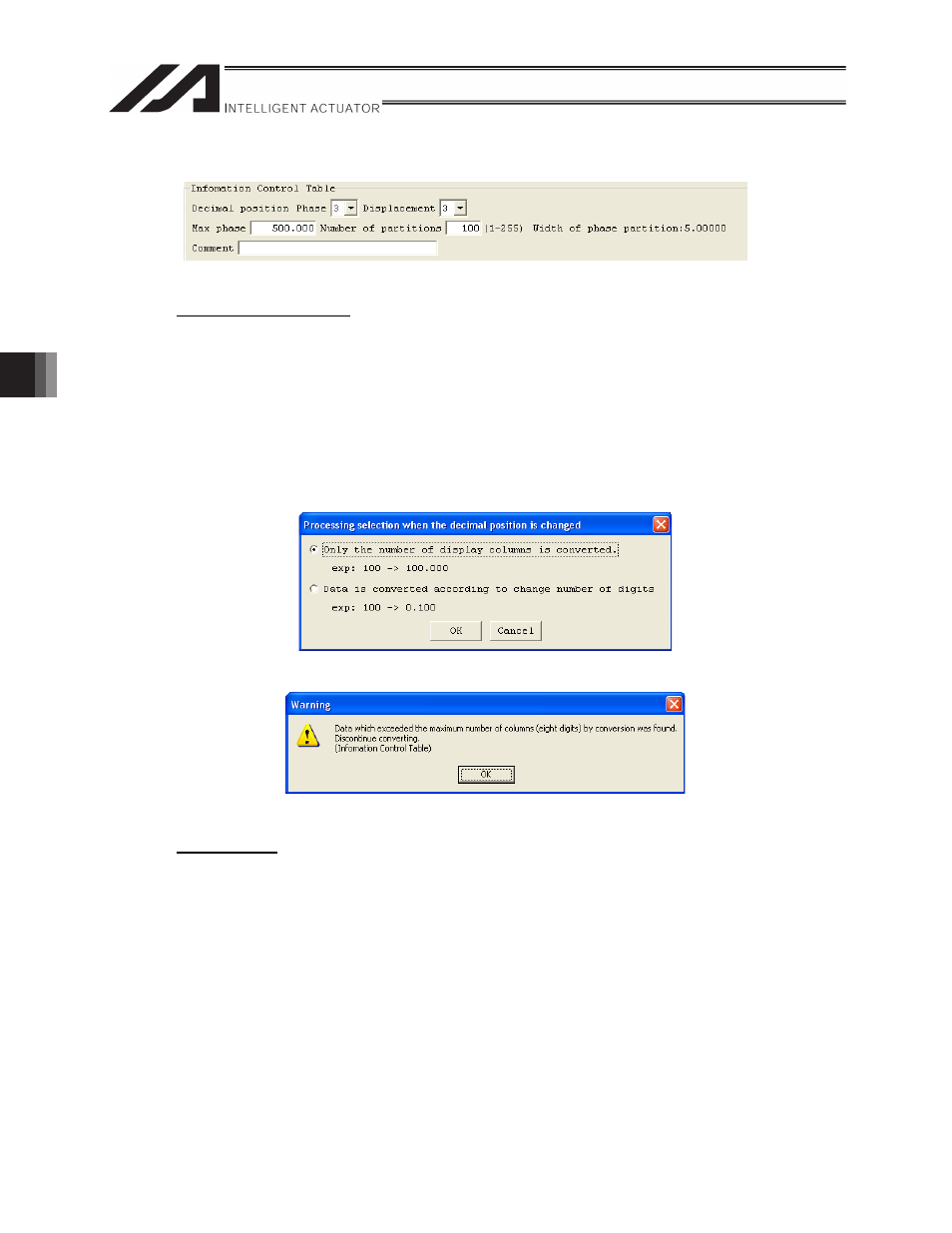

Figure 2.13. Information Control Table
Decimal position phase
The number of decimals for the maximum phase, section definition data phase, displacement
data phase, and CAM curve graph horizontal axis value can be set.
If you select the phase, the Processing selection when the decimal position is changed dialog
box (Figure 2.14) appears; you can select either to change the number of displayed digits only or
to convert data according to the changed number of digits.
* If you change only the displayed number of digits, a conversion error (Figure 2.15) occurs if
there are any data exceeding the maximum number of digits (8 digits). The corresponding
data is displayed in the error message. It is necessary to correct the corresponding data and
convert the values again.
Figure 2.14. Processing Selection when the Decimal Position is Changed
Figure 2.15. Conversion Error
Displacement
The number of decimals for section definition data displacement train, displacement data
displacement train, and CAM curve graph vertical axis value can be set.
(See “Decimal position phase” above for the processing after making selection.)
