Chapter 6 Operations of X-SEL
PC Software Extension Motion Control Functions
185
[6] CAM curve display setting

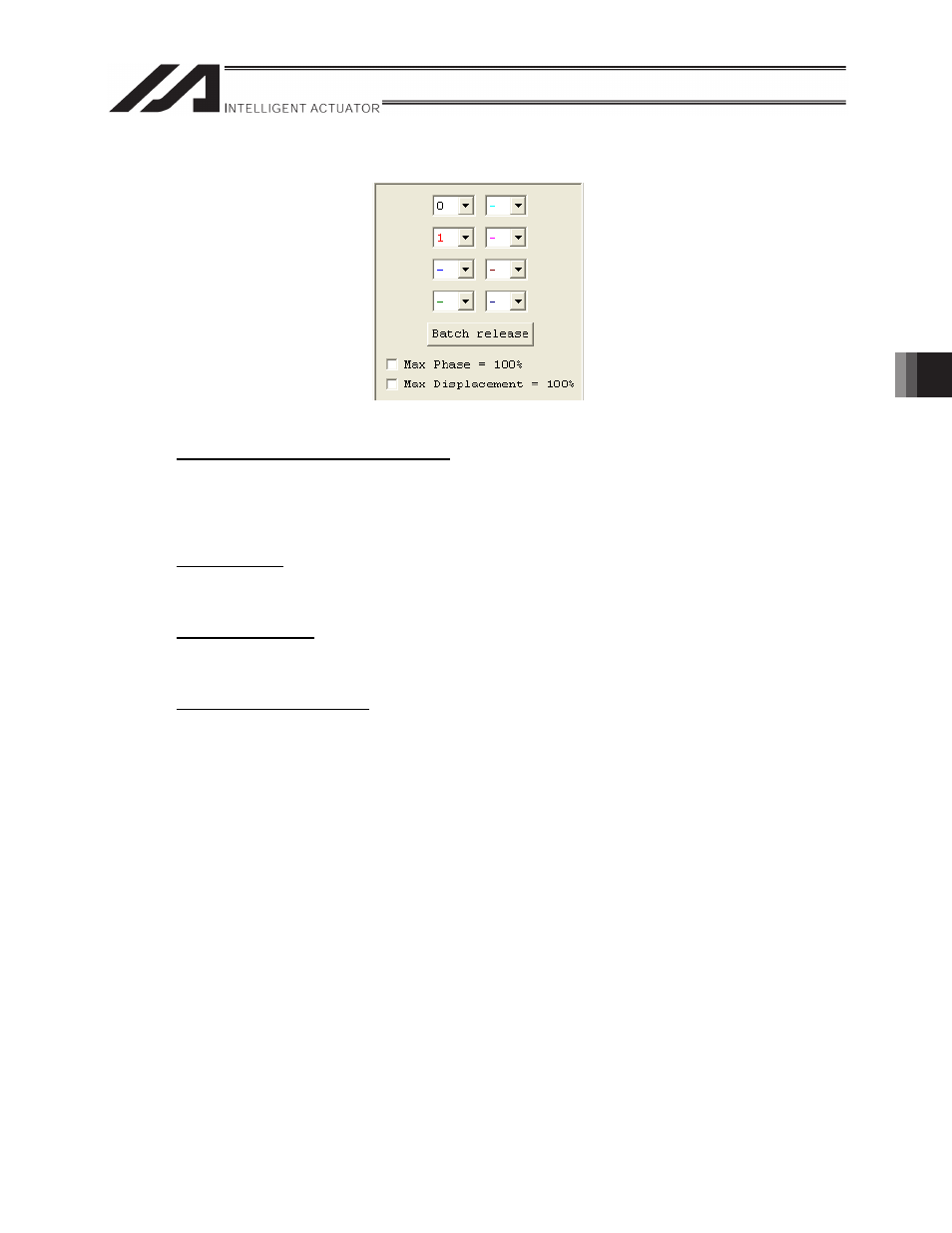

Figure 2.20. CAM Curve Display Setting
Display CAM table No. selection area
Tables to be displayed in CAM curve graphs are selected in this section.
* Only CAM tables read from the controller can be selected. CAM tables from the controller can
be read by clicking the [Display Latest Data] button and selecting the table range you want to
read.
Batch Release
When this button is clicked, all CAM tables you select in the display CAM table No. selection
area are cancelled.
Max Phase = 100%
If you select this button, phases (horizontal axis) of tables selected in the display CAM table No.
selection area are displayed as ratios to the maximum phase of each table (Figure 2.18).
Max Displacement = 100%
If you select this button, displacements (vertical axis) of tables selected in the display CAM table
No. selection area are displayed as ratios to displacement width (maximum displacement -
minimum displacement) of each table (Figure 2.18).
